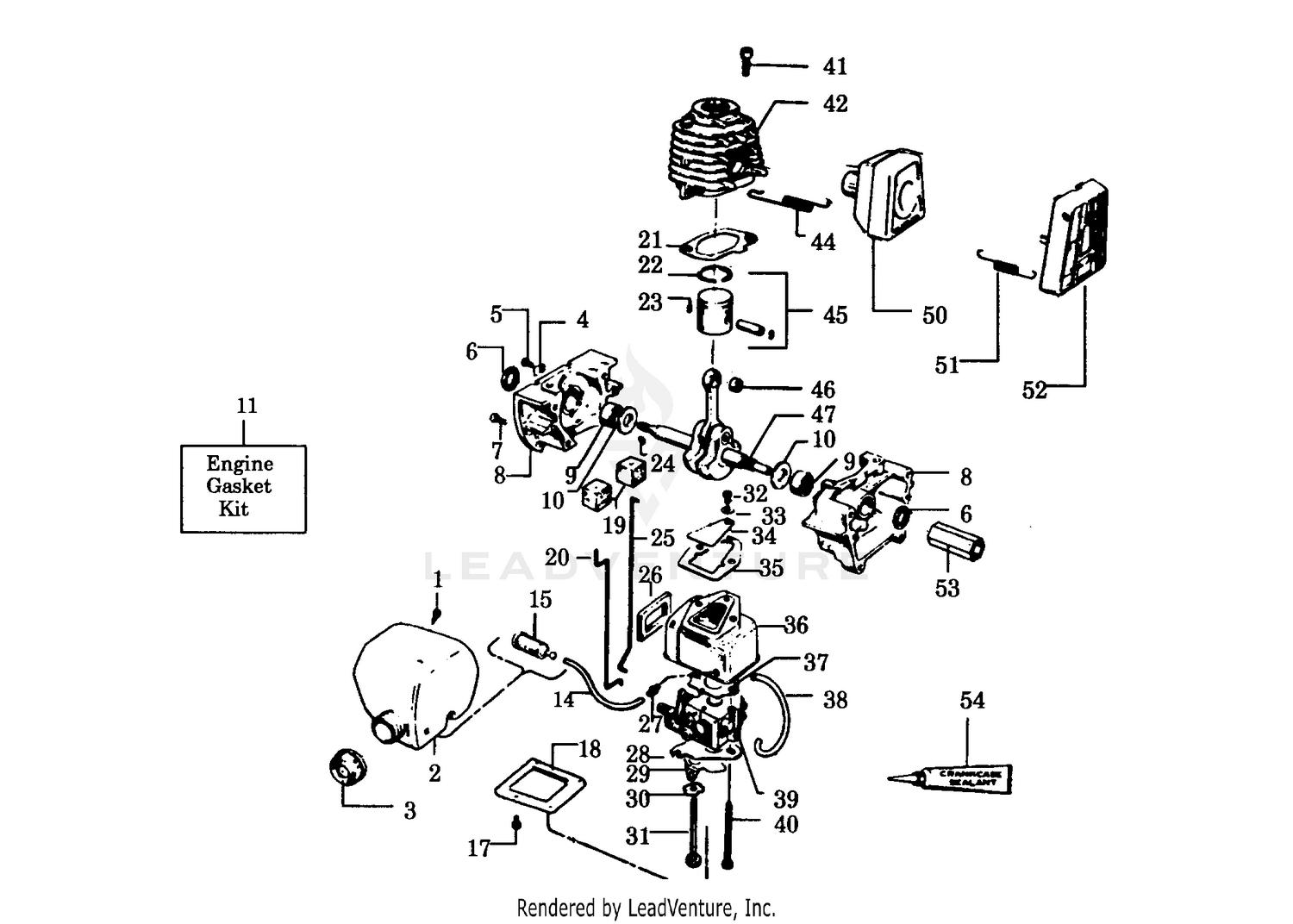

| Ref | Part Number | Description |
|---|
| 1 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 1 |
530026119 |
Check Valve Duck Bill Price: $1.99 |
| 2 |
3219-14 |
NUT-HEX Price: $0.25 |
| 2 |
530010776 |
Fuel Tank Ass'y. Price: $3.33 |
| 3 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 4 |
3217-29 |
NUT-HEX Price: $0.25 |
| 4 |
530024651 |
Choke Wire Clamp Price: $3.33 |
| 5 |
18-1390 |
DISCONTINUED Price: Call Us |
| 5 |
530015004 |
Screw Price: $1.99 |
| 6 |
28-1030 |
DISCONTINUED Price: Call Us |
| 7 |
18-2670 |
DISCONTINUED X-REF Price: Call Us |
| 7 |
530015369 |
Screw Price: $0.04 |
| 8 |
19-2930 |
DISCONTINUED Price: Call Us |
| 8 |
530010757 |
Crankcase Ass'y. (Inc.6,7, & 9) Price: Call Us |
| 9 |
2410-13 |
DISCONTINUED Price: Call Us |
| 9 |
530032029 |
Crankcase Bearing Price: $7.99 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
530015351 |
Washer Price: $3.99 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 11 |
530069219 |
Engine Gasket Kit Price: $11.54 |
| 12 |
19-8570 |
Index Plate (Perkins #31812163) Price: Call Us |
| 13 |
37-9890 |
DISCONTINUED Price: Call Us |
| 14 |
19-8550 |
DISCONTINUED Price: Call Us |
| 14 |
530069216 |
Fuel Line-Model XR-20-Type 1 & 2 Price: $3.99 |
| 15 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 15 |
530091878 |
Model XR-20-T 1 & 2 Price: $5.99 |
| 15 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 16 |
20-0490 |
DISCONTINUED Price: Call Us |
| 17 |
530015235 |
Screw Price: Call Us |
| 18 |
530026029 |
Carburetor Case Cover Price: $3.99 |
| 19 |
530023373 |
Choke Wire Throttle Boot Price: $1.99 |
| 20 |
18-2230 |
DISCONTINUED X-REF Price: Call Us |
| 21 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
530069219 |
Engine Gasket Kit This part replaces 530019111. Price: $11.54 |
| 23 |
530015162 |
Wrist Pin Retainer Price: $1.99 |
| 24 |
530015126 |
Flywheel Key Price: $1.99 |
| 25 |
530024902 |
Throttle Wire Price: $3.33 |
| 26 |
530019105 |
Carburetor Case Seal Price: Call Us |
| 27 |
530025472 |
Model XR-20-T1 & 2 Price: $1.99 |
| 27 |
530026981 |
Model XR-20-T3; Model XR-20T-T1 Price: $1.99 |
| 28 |
530026237 |
Choke Wire Guide Plate Price: $3.33 |
| 29 |
530024558 |
Choke Shutter Price: $2.99 |
| 30 |
530015254 |
Wave Washer Price: $1.99 |
| 31 |
530015404 |
Screw Price: $2.99 |
| 32 |
530015241 |
Screw Price: $1.99 |
| 33 |
530023367 |
Washer Price: Call Us |
| 34 |
530024438 |
Reed Valve Price: Call Us |
| 36 |
530024409 |
Carburetor Housing Price: $9.99 |
| 38 |
530069238 |
Line Kit Price: $3.33 |
| 39 |
530035183 |
Carburetor Price: $65.89 |
| 40 |
530015379 |
Screw Price: $2.99 |
| 41 |
530015239 |
Screw Price: $1.99 |
| 42 |
530012349 |
CYLINDER This part replaces 530012244. Price: $39.99 |
| 44 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 45 |
530010753 |
Piston Kit (Inc.22,23,Pin) Price: Call Us |
| 46 |
530032057 |
Wrist Pin Bearing Price: $3.28 |
| 47 |
530026418 |
Crankshaft & Rod Ass'y. Price: $3.33 |
| 50 |
530069243 |
Model XR-20T Price: $3.33 |
| 51 |
530024932 |
Muffler Guard Spring Price: $3.33 |
| 52 |
530024855 |
Muffler Guard Price: $5.99 |
| 53 |
530093925 |
Drive Adaptor Price: $3.99 |
| 530069247 |
Line |
Kit-Model XR-20-Type 3;Model XR-20T-T1 Price: $3.99 530069247 |
