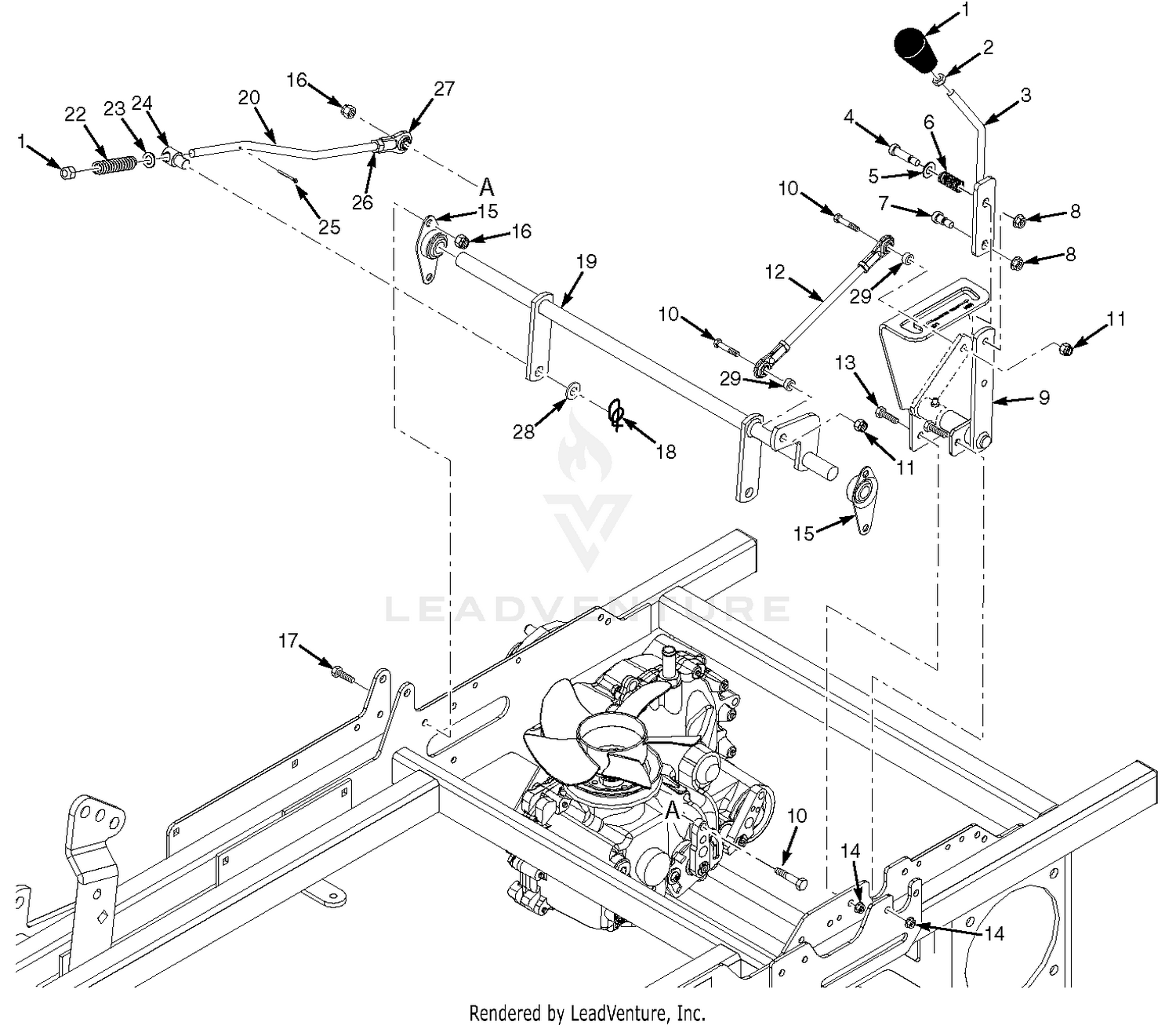

| Ref | Part Number | Description |
|---|
| 1 |
484093 |
Knob, Soft Touch Price: Call Us |
| 2 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 3 |
452142 |
Lever Weldment, Speed Control SCZ Price: Call Us |
| 4 |
04009-11 |
Bolt, Shoulder 3/8 x 1" Price: Call Us |
| 5 |
04040-05 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 6 |
483601 |
Spring, Speed Control Price: Call Us |
| 7 |
04009-14 |
Bolt, Shoulder 3/8 x 3/8" Price: Call Us |
| 8 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 9 |
452409 |
Control Weldment, Speed Range Adjust This part replaces 452130. Price: Call Us |
| 10 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 11 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 12 |
484187 |
Linkage Assembly, Upper Speed Control Price: Call Us |
| 13 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 14 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 15 |
484149 |
Bearing, Self Align Price: Call Us |
| 16 |
04117-01 |
Nut, FLG HH Elastic Stop 5/16-18 Price: Call Us |
| 17 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 18 |
04069-02 |
Pin, Rue Cotter 1/2" Dia. Price: Call Us |
| 19 |
452138 |
Speed Control Bellcrank Weldment Price: Call Us |
| 20 |
44183 |
Rod, Speed Linkage Price: Call Us |
| 21 |
04021-18 |
Nut, Elastic Stop 3/8-24 Price: Call Us |
| 22 |
484175 |
Spring Price: Call Us |
| 23 |
04042-04 |
Flatwasher, 3/8-.406 x .734 x .063 Price: Call Us |
| 24 |
43751 |
Bushing, Pivot Price: Call Us |
| 25 |
04061-01 |
Cotter Pin Price: Call Us |
| 26 |
04020-14 |
Nut, 3/8-24 UNF Jam Price: Call Us |
| 27 |
484177 |
Rod End, 3/8-24 Price: Call Us |
| 28 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 483339 |
Rod |
End, 3/8-24 RH Price: Call Us 483339 |
| 483340 |
Rod |
End, 3/8-24 LH Price: Call Us 483340 |
