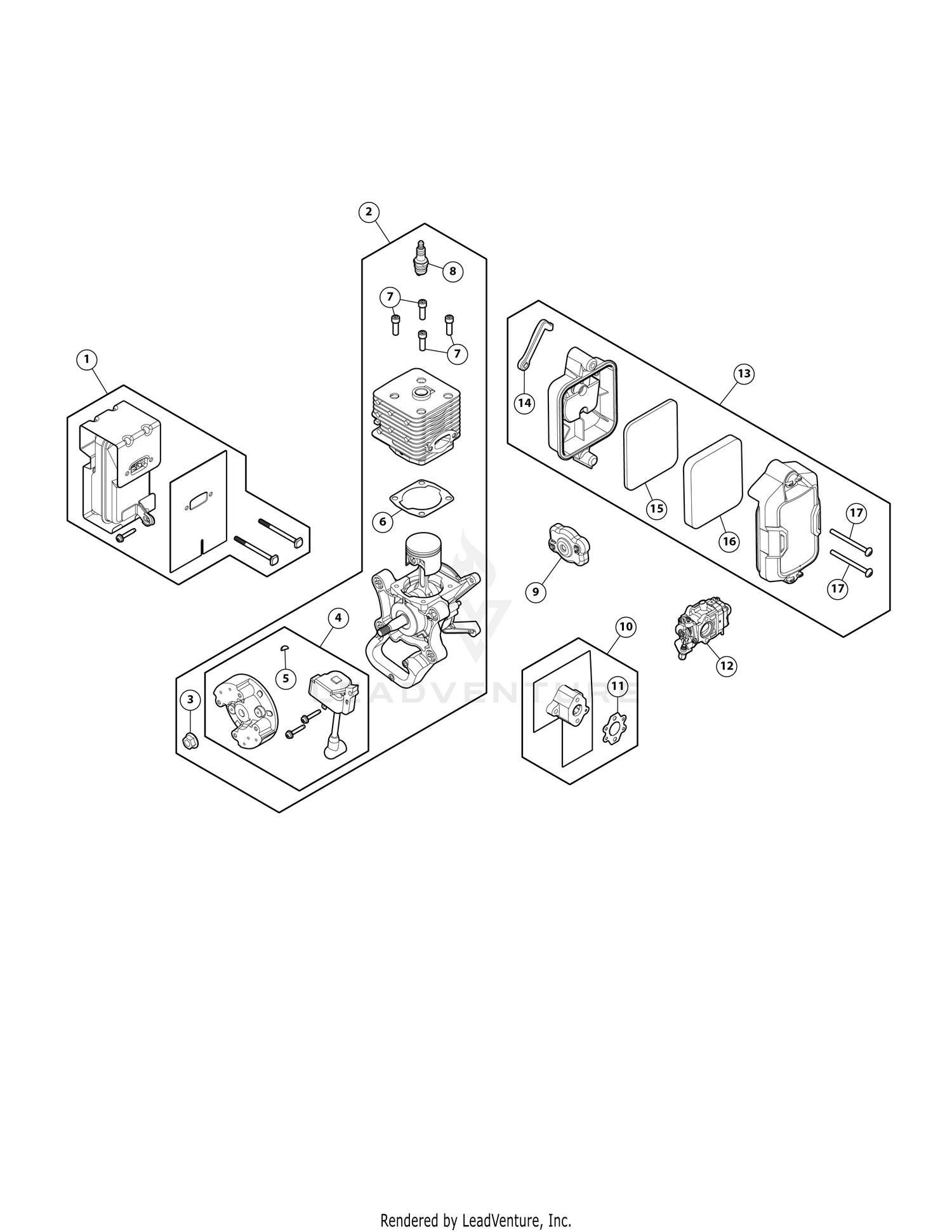

Engine Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-11137 | MUFFLER Price: $26.83 |
| 3 | 712-04137 | NUT 3/8-24 Price: $6.07 |
| 5 | 914-04016 | WOODRUFF KEY #403-.125 x .375 Price: $3.82 |
| 6 | 753-11191 | CYLINDER GASKET Price: $2.43 |
| 7 | 710-11494 | SCREW Price: $2.17 |
| 8 | 794-00046 | SPARK PLUG Price: $7.23 |
| 9 | 753-11141 | PAWL ASSEMBLY Price: $6.08 |
| 11 | 753-11143 | INTAKE GASKET Price: $2.40 |
| 12 | 751-20089 | CARBURETOR Price: $45.70 |
| 14 | 731-22551-10 | CHOKE LEVER Price: $4.23 |
| 15 | 753-11153 | PRE FILTER Price: $2.95 |
| 16 | 753-11154 | AIR FILTER Price: $3.10 |
