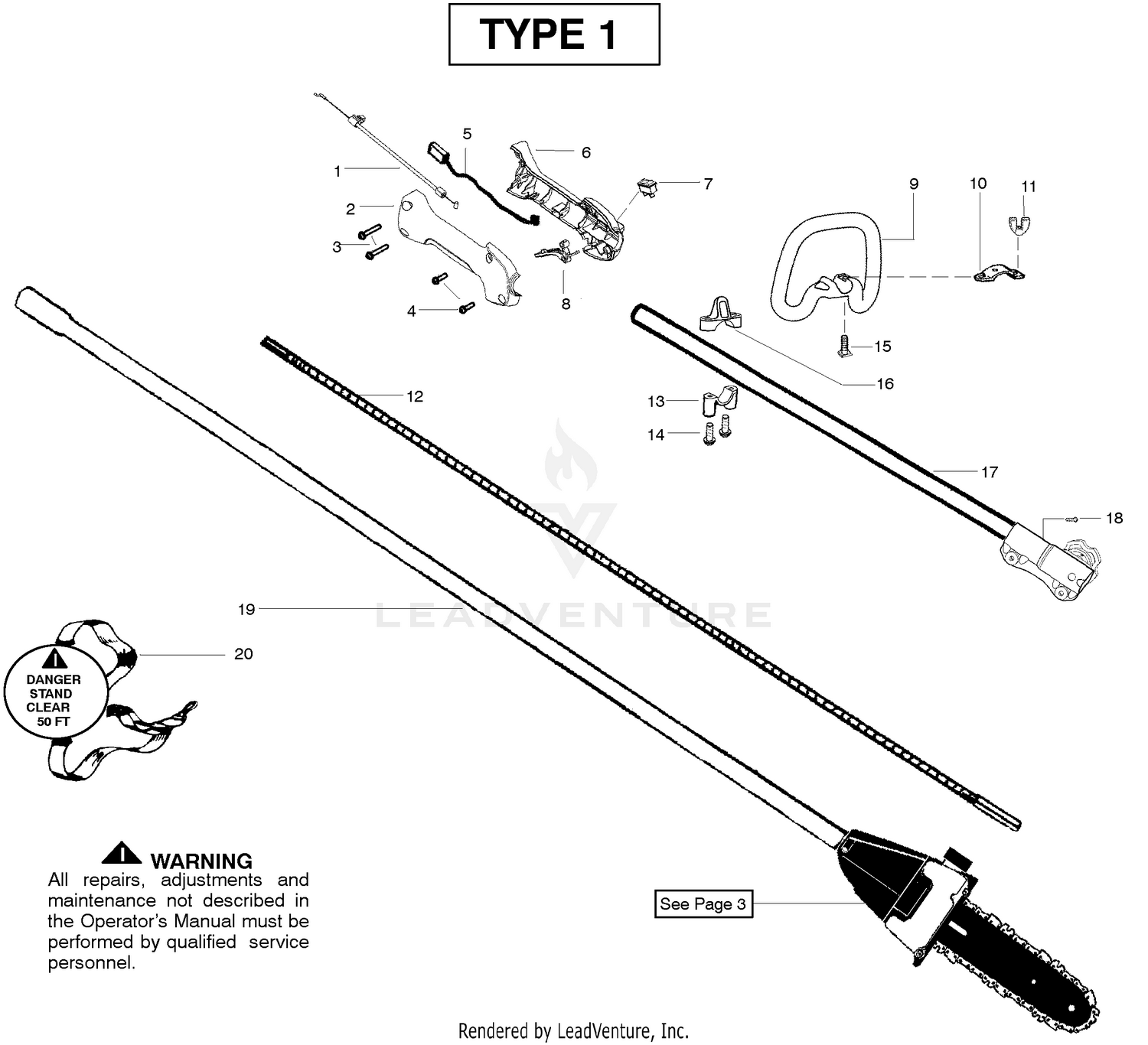

Shaft - Type 1
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530059759 | Assy-Throttle Cable Price: $9.99 |
| 2 | 530057541 | Hsg.-Throttle right Price: $7.99 |
| 3 | 530016406 | Screw. Price: $1.99 |
| 4 | 530015814 | Screw Price: $1.49 |
| 5 | 530054183 | Assy-Wire Price: $4.99 |
| 6 | 530059760 | Hsg. - Throttle left Price: $6.99 |
| 7 | 530069572 | Kit-Switch Price: $4.99 |
| 8 | 530049107 | Trigger This part replaces 545077601. Price: $1.99 |
| 10 | 530059185 | Clamp-Handle Price: $2.99 |
| 11 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 12 | 530056570 | Flex-Lower Price: $14.99 |
| 13 | 530057987 | Clamp-Lower Price: $3.99 |
| 14 | 530015940 | Screw Price: $1.99 |
| 15 | 530015820 | Bolt Price: $1.99 |
| 16 | 530057986 | Clamp-Upper Price: $2.99 |
| 18 | 530016344 | Screw Price: $1.99 |
| 19 | 545008090 | Assy-Driveshaft Price: $31.99 |
| 20 | 530094417 | Shoulder Strap This part replaces 530094408. Price: Call Us |
