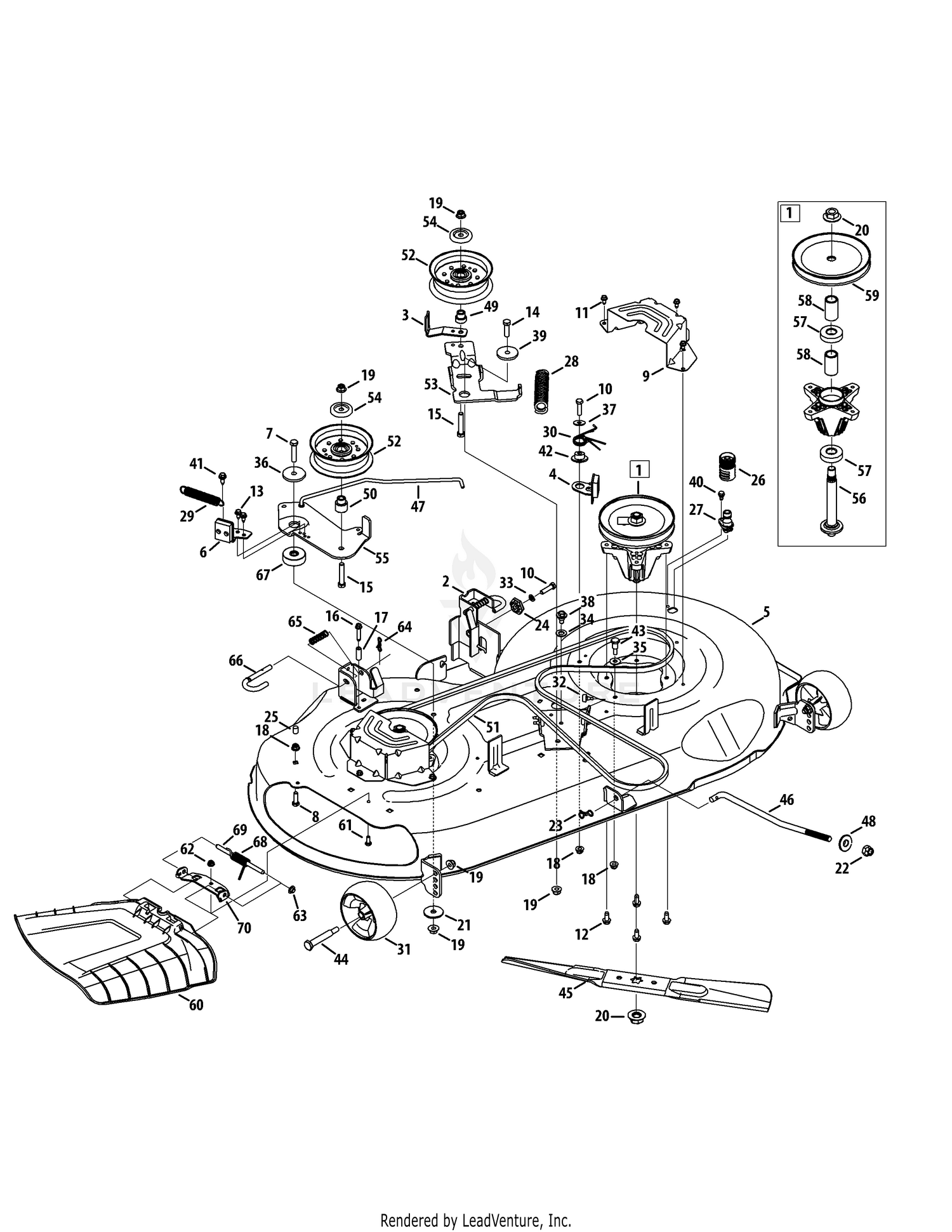

| Ref | Part Number | Description |
|---|
| 1 |
918-06989 |
Spindle Assembly, Pul 6.74 Dia Price: $91.86 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 3 |
783-08690A-0637 |
BELT KEEPER (POWDER BLACK) This part replaces 783-08690-0637. Price: $11.37 |
| 4 |
753-09904A |
DECK BRAKE ASSEMBLY KIT This part replaces 983-05183. Price: $93.12 |
| 6 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 983-05182. Price: $87.42 |
| 7 |
710-0347 |
Hex Screw, 3/8-16 x 1.75 Price: $4.39 |
| 8 |
710-0376 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 9 |
783-08547-0637 |
Deck Belt Cover, 46 Price: $13.03 |
| 10 |
710-0528 |
Hex Screw, 5/16-18, 1.25, Gr5, Std Price: $3.90 |
| 11 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 12 |
710-1260A |
Screw, 5/16-18 x 0.750 Price: $3.34 |
| 13 |
710-06133 |
Screw, M6-1 x .625 Price: $3.08 |
| 14 |
710-3005 |
Hex Screw, 3/8-16 x 1.25 Price: $3.61 |
| 15 |
710-3096 |
Hex Head Screw, 3/8-16 x 2.00 Price: $7.03 |
| 16 |
710-0809 |
Screw, 1/4-20 x 1.25 Price: $6.37 |
| 17 |
750-0566A |
Spacer, .260 x .375 x 1.030 Price: $9.17 |
| 18 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 19 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 20 |
712-0417A |
HEX NUT Price: $6.50 |
| 21 |
736-3039 |
Flat Washer, .407 x .812 x .135 This part replaces 936-3039. Price: $4.42 |
| 22 |
712-04243 |
Flange Lock Nut, 1/2-13 Price: $3.52 |
| 23 |
714-04043 |
Bow-Tie Cotter Pin Price: $4.24 |
| 24 |
917-04074 |
Gear, Deck Adjustment Price: $11.45 |
| 25 |
720-05010 |
Cap, .290 x .500 Price: $3.70 |
| 26 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 27 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 28 |
732-04909 |
Spring, Extension, 1.05 X 6.346 Price: $11.59 |
| 29 |
732-04629 |
Spring, Extension, .750 x .477 Price: $25.15 |
| 30 |
732-05151A |
Torsion Spring, LH Price: $3.70 |
| 31 |
734-04155 |
Wheel, Deck, 5.0 Dia Ball Price: $19.04 |
| 32 |
735-0271A |
Bumper, .62 Dia X .3 Price: $7.84 |
| 33 |
936-0119 |
Washer, Lock, 5/16, Regular Duty Price: $4.29 |
| 34 |
736-0226 |
Flat Washer, .474 x .879 x .064 This part replaces 936-0226. Price: $3.64 |
| 35 |
736-0371 |
Washer, Flat, .343 X .880 X .062 Price: $3.94 |
| 36 |
738-05082 |
Shoulder Spacer, .970 X .190 Price: $7.32 |
| 37 |
736-3078 |
Flat Washer, .344 x 1.0 x .063 Price: $3.95 |
| 38 |
738-04091A |
Shoulder Spacer, .43 x .29, 5/16-18 Price: $3.50 |
| 39 |
738-04162C |
Shoulder Spacer, .8840 X .190 Price: $12.76 |
| 40 |
738-04278 |
Shoulder Screw, 1/4-20 x 0.50 Price: $5.99 |
| 41 |
738-04184A |
Shoulder Screw, .368 x .113 x 1/4-20 Price: $5.99 |
| 42 |
738-05088 |
Shoulder Spacer, .75 x .145 Price: $3.86 |
| 43 |
738-0754 |
Shoulder Screw, .437 Dia. X .54 Price: $3.76 |
| 44 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 46 |
747-05141B |
DECK FRONT LIFT ROD This part replaces 747-05141A. Price: $19.44 |
| 47 |
747-06538 |
Brake Rod Price: $12.90 |
| 48 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 49 |
748-05029A |
Shoulder Spacer, Idler Price: $4.19 |
| 50 |
748-05037B |
SHOULDER SPACER This part replaces 748-05037A. Price: $4.64 |
| 51 |
954-04219 |
Belt, V-Typ, A Sec Price: $46.63 |
| 52 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 53 |
783-08618 |
Bracket, Idler, 46" Lh Price: $22.36 |
| 54 |
783-08389 |
Pulley Cap Price: $5.23 |
| 55 |
783-08654C |
DECK IDLER BRACKET This part replaces 783-08654B. Price: $62.71 |
| 56 |
738-1186A |
Spindle Shaft, 6.05 LG. Price: $45.83 |
| 57 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 58 |
750-04936 |
Spacer, .792 X 1.060 X 1.860 LG Price: $5.94 |
| 59 |
756-05030 |
Deck Pulley, 6.74 DIA Price: $22.36 |
| 60 |
631-04354C |
CHUTE ASSEMBLY This part replaces 631-04354B. Price: $38.48 |
| 61 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 62 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 63 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 64 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 65 |
732-04652 |
Spring, Compression, .535 x 1.751 Price: $5.88 |
| 66 |
747-1116 |
Rod, Deck Release Price: $11.17 |
| 67 |
750-06184 |
Spacer, .385 ID x 1.75 OD x .585 Price: $10.02 |
| 68 |
732-05261 |
Spring, Torsion, .440 ID x 1.75 Price: $5.18 |
| 69 |
747-06290B |
Hinge Pin Price: $3.66 |
