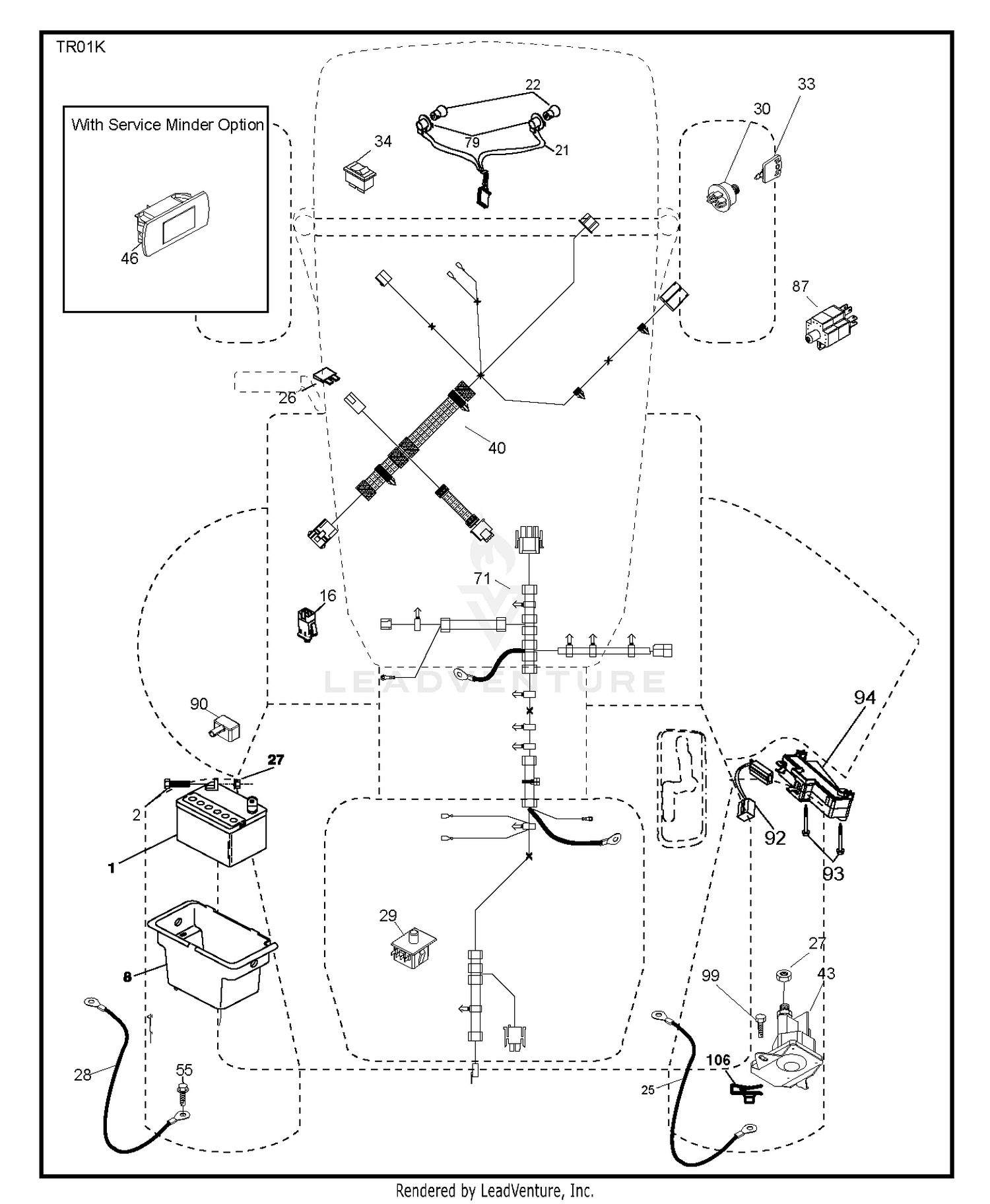

| Ref | Part Number | Description |
|---|
| 1 |
1940385 |
Frame Price: Call Us |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 2 |
1946434 |
Brushes Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
1926618 |
Holder (Insulated) Price: Call Us |
| 4 |
1926622 |
Springs Price: Call Us |
| 5 |
1940477 |
Holder (Ground) Price: Call Us |
| 6 |
1938058 |
Brush Holder Pin Price: Call Us |
| 7 |
1960864 |
Lead (Ground) Price: Call Us |
| 8 |
120361 |
Brush Holder Nut Price: Call Us |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $11.99 |
| 9 |
453435 |
Lockwasher Price: Call Us |
| 10 |
1928015 |
Support Package Price: Call Us |
| 11 |
453468 |
Screw Price: Call Us |
| 12 |
1955946 |
Grommet Price: Call Us |
| 13 |
132255 |
Screw Price: Call Us |
| 14 |
9421423 |
Lockwasher Price: Call Us |
| 15 |
1114356 |
Switch Price: Call Us |
| 16 |
1958679 |
Spring Plunger Price: Call Us |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
1941113 |
Plunger Price: Call Us |
| 18 |
1951567 |
Lever Shift Price: Call Us |
| 19 |
455106 |
Lever Pin Price: Call Us |
| 20 |
1932197 |
Lever Stud Price: Call Us |
| 21 |
1965225 |
Drive Housing (Incl. Bushing) Price: Call Us |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
1926640 |
Nut Price: Call Us |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 23 |
9421424 |
Lockwasher Price: Call Us |
| 24 |
1838568 |
Thrust Collar Price: Call Us |
| 25 |
1928022 |
Retainer Ring Price: Call Us |
| 25 |
581498001 |
CABLE.BATT.RED.8GA.17 Price: $4.99 |
| 26 |
1928021 |
Collar Stop Price: Call Us |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
809593 |
Pin Dowl Price: Call Us |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
1941157 |
Drive Assembly Price: Call Us |
| 28 |
532421686 |
CABLE.GROUND.REAR.BATTERY.8G Price: $11.99 |
| 29 |
1913960 |
Screw Price: Call Us |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $12.99 |
| 30 |
1950417 |
Armature Price: Call Us |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 31 |
1914842 |
Washer-Brake Price: Call Us |
| 32 |
1955951 |
Coil Assembly Price: Call Us |
| 33 |
274738 |
Screw Price: Call Us |
| 33 |
532411933 |
KEY.CHAIN.BLISTER.PACK.GEN.USA Price: $6.99 |
| 34 |
1887021 |
Pole Shoe Price: Call Us |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 35 |
1960908 |
Bolt Price: Call Us |
| 36 |
274875 |
Screw Price: Call Us |
| 40 |
581023101 |
HARNESS.TEX.DASH.MAN.REAR BATT Price: $24.99 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER This part replaces 532192507. Price: $7.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
581023001 |
HARNESS.TEX.CHSSIS.REAR.BATT Price: $39.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
532192540 |
SCREW.PLASTITE Price: $2.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $22.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
