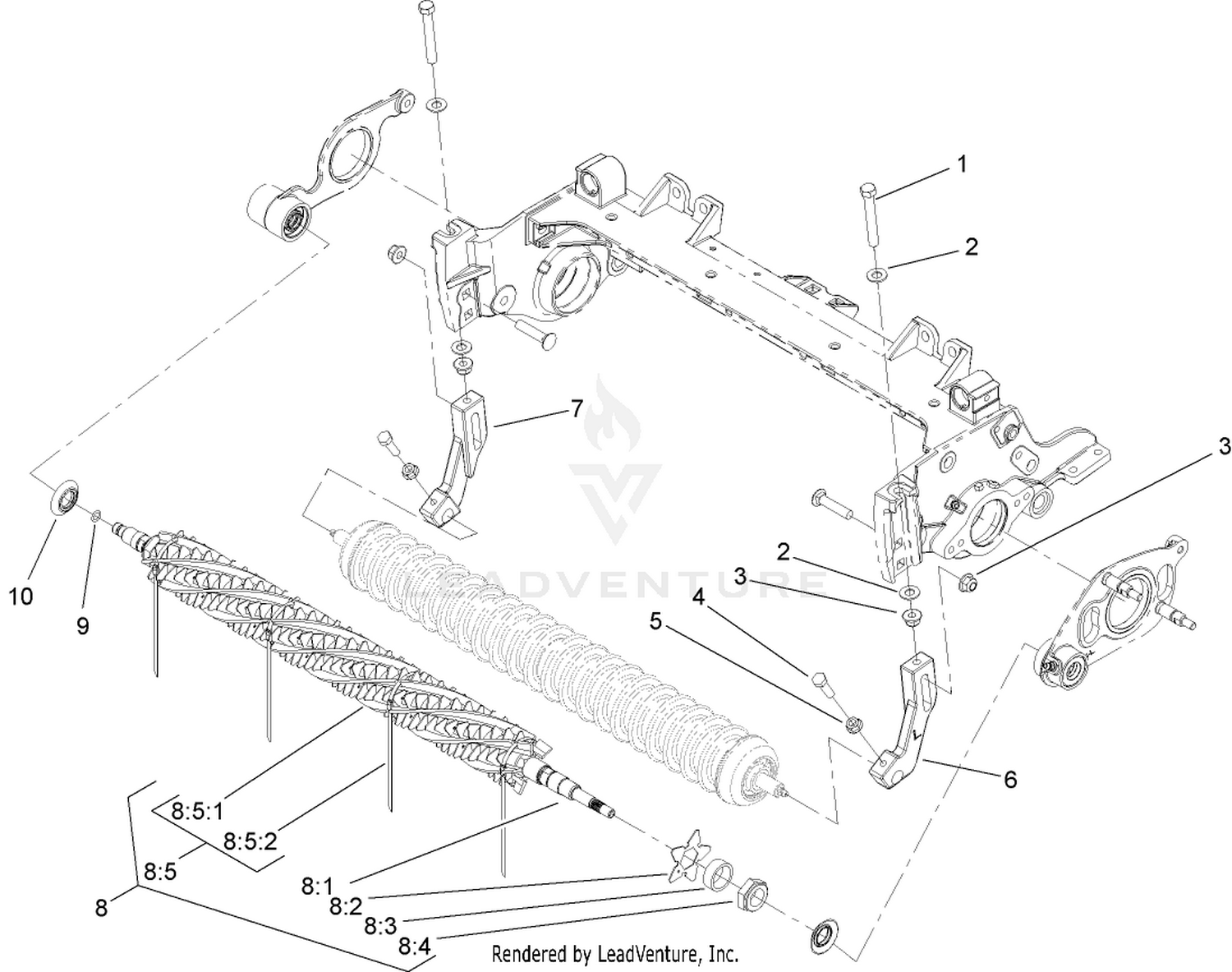

Drive Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-7451 | SCREW-TAP Price: $2.17 |
| 2 | 48-9220 | WASHER-PLAIN Price: $0.87 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 322-16 | SCREW-HH Price: $3.39 |
| 5 | 32128-20 | NUT-HF Price: $0.99 |
| 6 | 108-4213 | BRACKET-HOC, GROOMER (LH) Price: $103.51 |
| 7 | 108-4214 | BRACKET-HOC, GROOMER (RH) Price: $103.51 |
| 8 | 112-6969 | GROOMER BLADE ASM Price: $836.11 |
| 9 | 237-22 | O-RING This part replaces 107-8844. Price: $2.43 |
