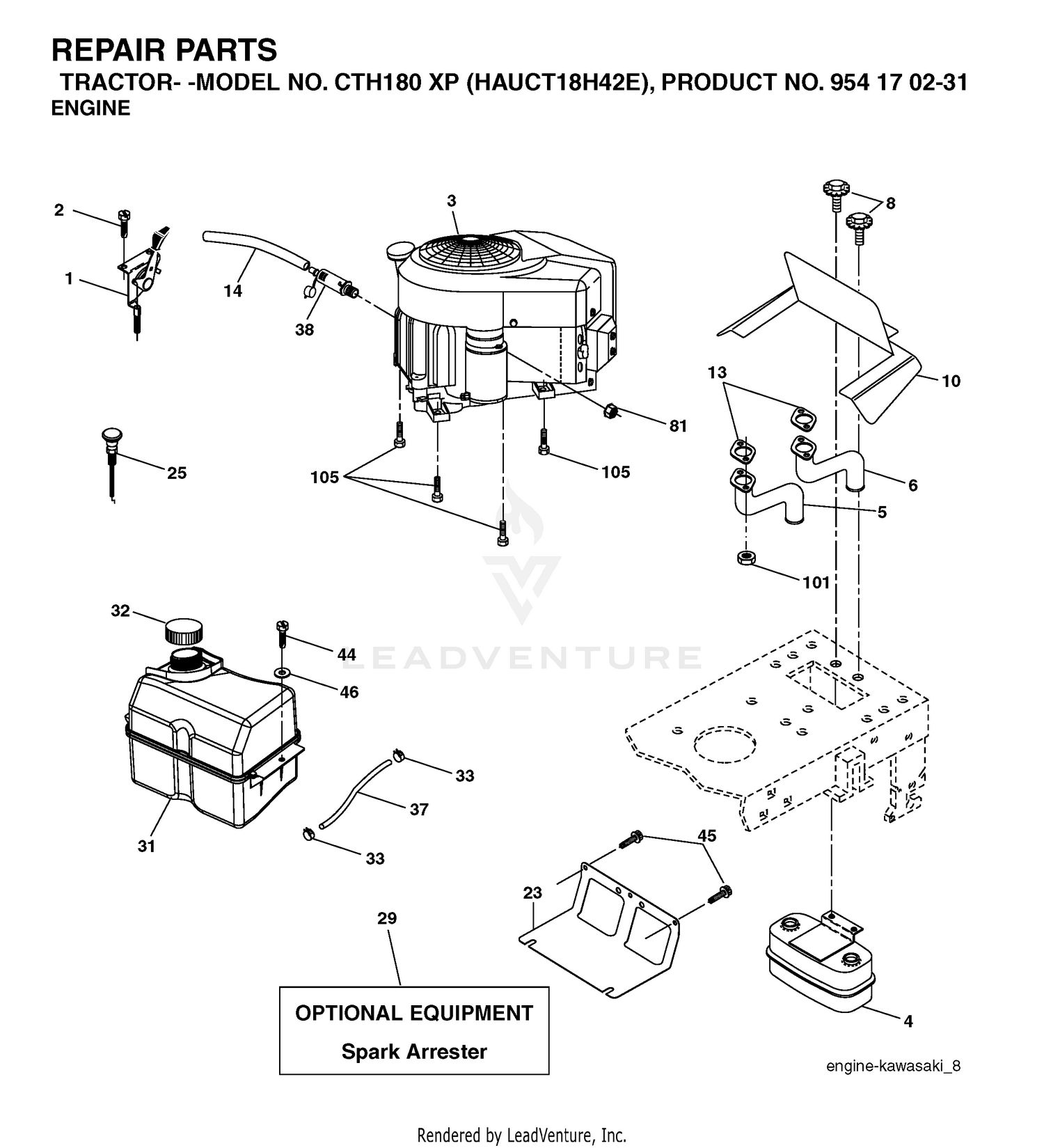

| Ref | Part Number | Description |
|---|
| 1 |
127-3108 |
GASKET-MANIFOLD, EXHAUST Price: $14.96 |
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 2 |
127-3136 |
MANIFOLD-EXHAUST Price: $713.28 |
| 2 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 3 |
127-3094 |
BOLT Price: $14.14 |
| 4 |
127-3044 |
BOLT-M10 Price: $29.50 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
127-3140 |
SENSOR-TEMP, EXHAUST Price: $199.61 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 6 |
127-3087 |
BAND-CLIP Price: $2.45 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 7 |
125-7043 |
STUD Price: $12.44 |
| 8 |
127-3038 |
EXHAUST PIPE ASM Price: $149.15 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
127-3173 |
CLAMP Price: $17.96 |
| 10 |
127-3039 |
BOLT-JOINT, PIPE Price: $133.48 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
127-3174 |
GASKET Price: $1.28 |
| 12 |
125-7206 |
BOLT Price: $1.97 |
| 13 |
127-3042 |
COOLER-E G R Price: $756.82 |
| 14 |
127-3043 |
GASKET-COOLER, E G R Price: $3.64 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
127-2976 |
BOLT Price: $4.58 |
| 16 |
127-3022 |
BOLT-FLANGE Price: $33.05 |
| 17 |
127-3048 |
E G R PIPE ASM Price: $147.48 |
| 18 |
127-3049 |
PIPE-OUT, E G R Price: Call Us |
| 19 |
125-7043 |
STUD Price: $12.44 |
| 20 |
125-7220 |
BOLT Price: $4.99 |
| 21 |
127-2984 |
STUD Price: $24.67 |
| 22 |
127-3137 |
PIPE-EXHAUST Price: Call Us |
| 23 |
127-3138 |
BOLT-FLANGE Price: $46.10 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
125-7071 |
GASKET Price: $7.59 |
| 25 |
125-7229 |
NUT Price: $3.12 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
127-3047 |
SENSOR-GAS TEMP, E G R Price: $220.43 |
| 27 |
127-3109 |
E G R PIPE ASM Price: $395.45 |
| 28 |
127-3016 |
GASKET Price: $3.83 |
| 29 |
125-7215 |
BOLT Price: $3.48 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-7229 |
NUT Price: $3.12 |
| 31 |
127-3110 |
VALVE-E G R Price: $2,129.04 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532183361. Price: $44.99 |
| 32 |
127-3050 |
GASKET-INTAKE VALVE, E G R Price: $5.09 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
127-3051 |
GASKET-OUT VALVE, E G R Price: $4.47 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
125-7229 |
NUT Price: $3.12 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
