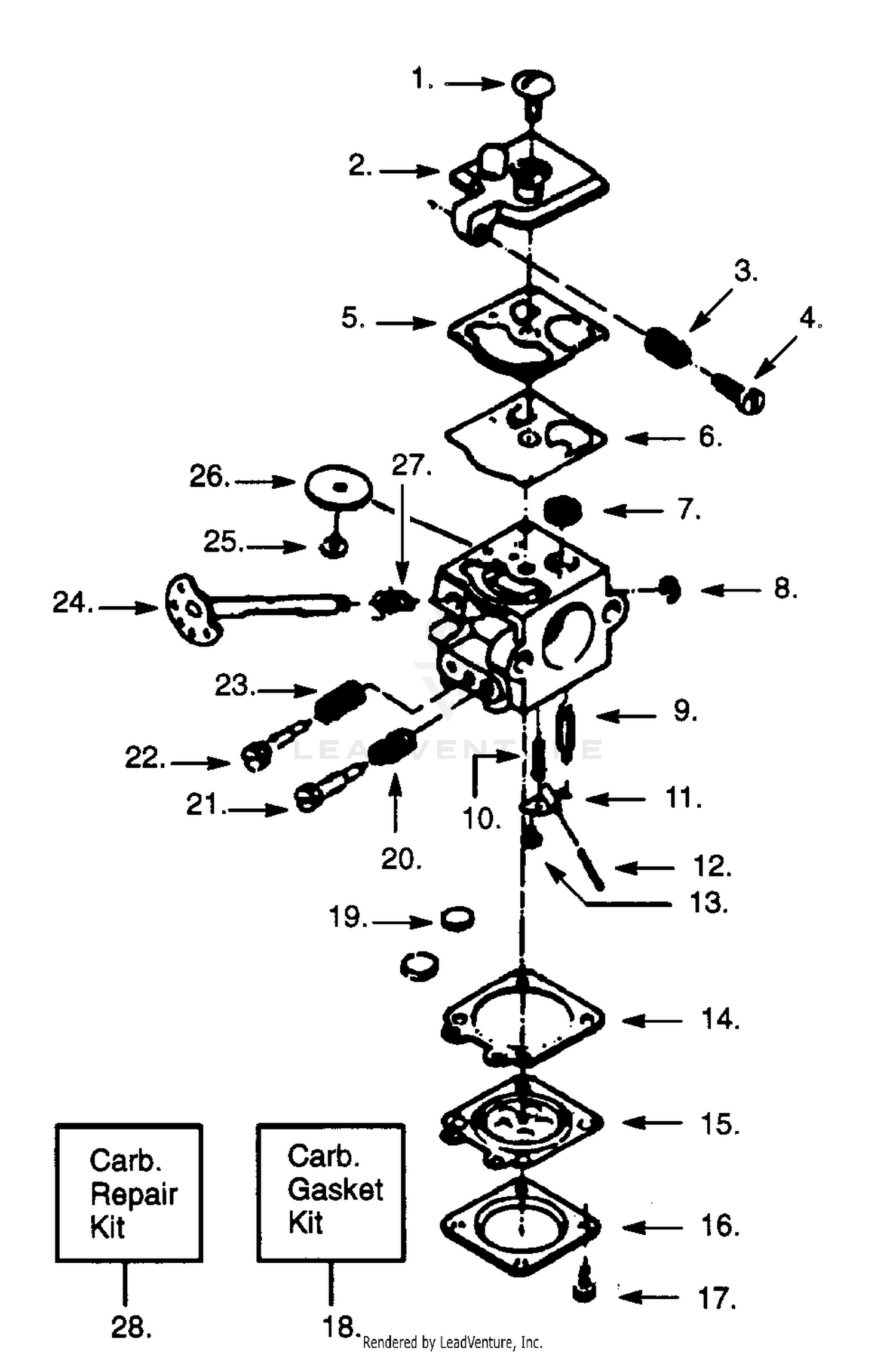

CARBURETOR WT-83 BREAKDOWN

CARBURETOR WT-83 BREAKDOWN

Parts (78)

RefPart NumberDescription
1 21-5550 DISCONTINUED X-REF Price: Call Us
1 530035017 Pump Cover Screw Price: $0.99
2 353-423 FITTING-90 DEG JIC Price: $66.74
2 530035159 Fuel Pump Cover Price: $5.99
3 23-9740 FILTER-OIL, HYDRAULIC Price: $13.14
3 530035168 Spring-Idle Speed Adjusting Screw Price: $0.99
4 3296-6 NUT-LOCK Price: $1.49
4 530035035 Idle Speed Adjusting Screw Price: $1.99
5 27-9370 BALL JOINT Price: $51.20
5 504130906 GASKET This part replaces 530035164. Price: $1.99
6 38-3310 PUMP LEVER WA *B Price: $144.34
6 504130807 PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99
7 32121-24 PIN-SPRING Price: $0.95
7 530035027 Fuel Inlet Screen Price: $1.99
8 353-433 FITTING-STRAIGHT Price: $11.60
8 530035007 Throttle Retainer Ring Price: Call Us
9 323-7 SCREW-HH Price: $0.65
9 503117001 Needle This part replaces 530035106. Price: $7.99
10 3253-21 WASHER-LOCK Price: $0.28
10 530035188 Metering Lever Spring Price: $1.99
11 3256-24 WASHER-FLAT Price: $0.28
11 505520127 Metering Lever This part replaces 530035031. Price: $3.99
12 237-99 O-RING Price: $2.30
12 505520125 Pin This part replaces 530035028. Price: $1.99
13 38-6010 DISCONTINUED Price: Call Us
13 530035016 Screw-Metering Lever Pin Price: $2.99
14 3296-39 NUT-LOCK, NI Price: $2.29
14 530035165 Metering Diaphragm Gasket Price: $7.99
15 3256-4 WASHER-FLAT Price: $0.28
15 503896701 DIAPHRAGM This part replaces 530035014. Price: $4.99
16 323-8 SCREW-HH Price: $1.20
16 530035003 Metering Diaphragm Cover Price: $3.99
17 120-9738 SCREW-HH This part replaces 322-11. Price: $0.84
17 530035021 Metering Cover Screw Ass'y. Price: $1.99
18 10-7950 GAS CAP Price: $59.46
18 530069844 Gasket Diaphragm Kit This part replaces 530035173. Price: $11.99
19 29-2100 DISCONTINUED Price: Call Us
19 530035162 Plug-5/16 Dia. Welch Price: $0.99
20 323-12 SCREW-HH Price: $1.14
20 530035167 High Speed Mixture Needle Spring Price: $0.64
21 353-536 DISCONTINUED Price: Call Us
21 530035169 High Speed Mixture Needle Price: Call Us
22 2412-36 CLAMP-HOSE Price: $1.28
22 530035171 Low Speed Mixture Needle Price: $2.99
23 39-3990 DISCONTINUED Price: Call Us
23 530035023 Low Speed Mixture Needle Spring Price: $0.99
24 108-3831 FILTER-FUEL This part replaces 18-1520. Price: $10.09
24 530035034 Throttle Shaft Ass'y. Price: $3.68
25 2412-56 DISCONTINUED Price: Call Us
25 530035015 Throttle Valve Screw Price: $1.99
26 3296-42 NUT-LOCK, NI Price: $0.28
26 530035006 Throttle Valve Price: Call Us
27 321-3 SCREW-HH Price: $0.28
27 530035024 Throttle Return Spring Price: Call Us
28 237-42 O-RING Price: $2.78
28 530035161 Carb. Repair Kit (Inc. 5-7,9-15,18,19) Price: $22.99
29 103-1802 FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99
30 353-370 FITTING-ELBOW, 90 DEG Price: $74.99
31 237-80 O-RING Price: $6.10
32 AU218-5106 FITTING-ELB 90 This part replaces 353-371. Price: $10.29
33 237-79 O-RING Price: $5.46
34 29-1560 DISCONTINUED Price: Call Us
35 2412-3 CLAMP-HOSE Price: $3.49
36 237-81 O-RING Price: $2.76
37 42-0220 PUMP GEAR Price: $1,258.93
38 38-5720 DISCONTINUED X-REF Price: Call Us
39 3296-52 NUT-LOCK, NI Price: $6.09
40 38-5340 DISCONTINUED Price: Call Us
41 27-9350 DISCONTINUED Price: Call Us
42 27-9330 COMPRESSION SPRING Price: $42.13
43 49-2440 DISCONTINUED This part replaces 27-9320. Price: Call Us
44 3290-404 DISCONTINUED Price: Call Us
45 40-6390 DISCONTINUED Price: Call Us
46 3220-3 NUT-HJ Price: $0.28
47 38-3300 CONTROL ROD & HUB WA Price: $67.49
48 23-2270 BUSHING-RUBBER Price: $17.07
49 353-427 FITTING-45 DEG Price: $26.43
50 3272-11 PIN-COTTER Price: $0.99
