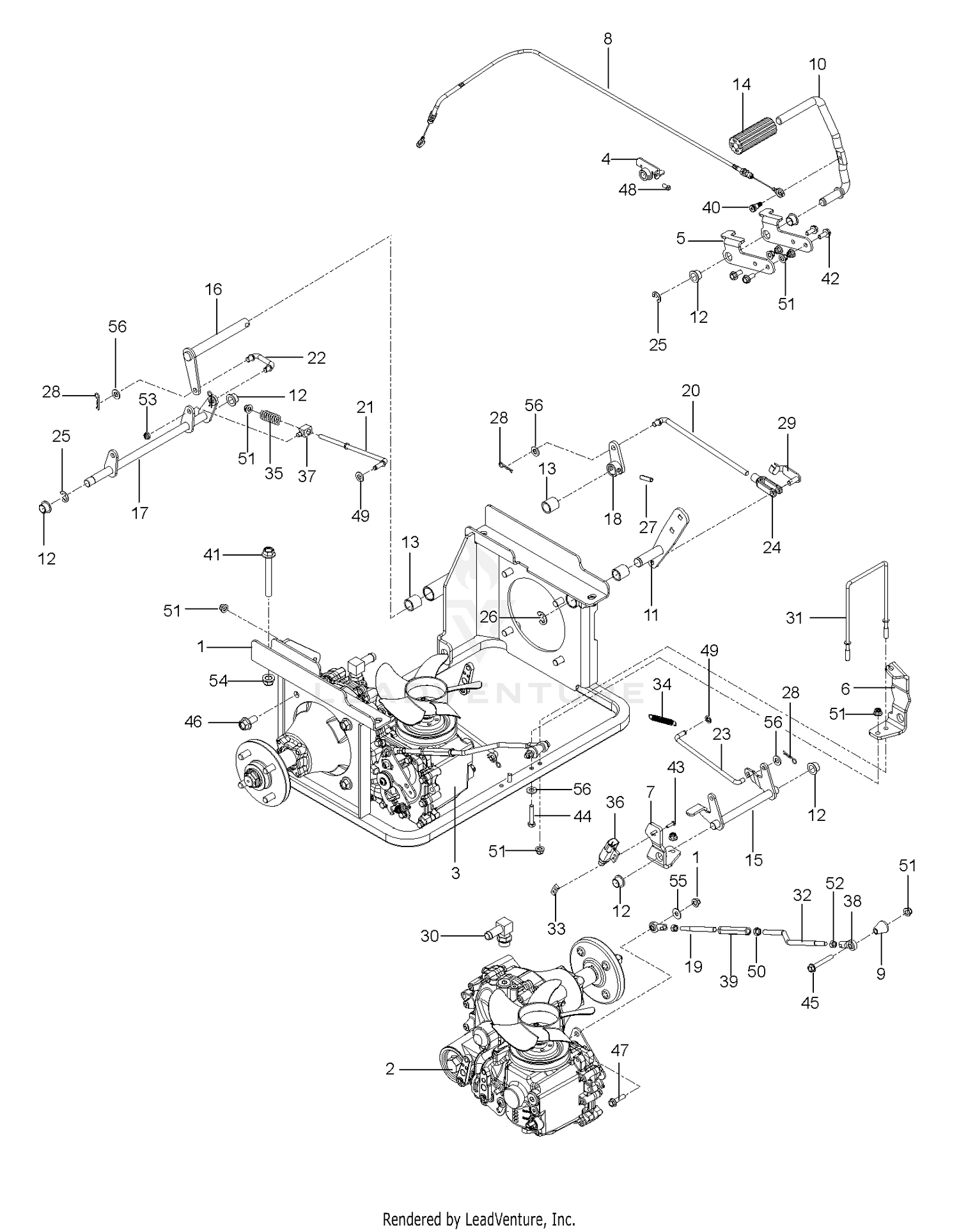

| Ref | Part Number | Description |
|---|
| 1 |
574857502 |
FRAME, ZT5400, BLACK Price: $379.99 |
| 2 |
574860801 |
HG_ZT5400, LT Price: $1,099.99 |
| 3 |
574860802 |
HG_ZT5400, RT Price: $1,499.99 |
| 4 |
575295603 |
BRACKET, CABLE, WELDED Price: $49.99 |
| 5 |
575303801 |
BRACKET, PEDAL Price: $17.99 |
| 6 |
574876101 |
BRACKET, TWO SPEED, LT Price: $17.99 |
| 7 |
574876102 |
BRACKET, TWO SPEED, RT Price: $17.99 |
| 8 |
527290001 |
CABLE, TWO SPEED Price: $44.99 |
| 9 |
574884001 |
SPACER, TAPPERED, 1.0" Price: $2.99 |
| 10 |
575303701 |
LEVER, PEDAL Price: $89.99 |
| 12 |
574866101 |
BUSHING, FLANGE, 5/8 Price: $6.99 |
| 13 |
510089201 |
BUSHING, SLEEVE 3/4 X 1.0 Price: $12.99 |
| 14 |
510089501 |
PAD, FOOT PEDAL Price: $4.99 |
| 15 |
574875701 |
CRANK, TWO SPEED Price: $84.99 |
| 16 |
574858301 |
SHAFT, BRAKE, WELDED Price: $84.99 |
| 17 |
574858501 |
SHAFT, BRAKE LOWER, WELDED Price: $89.99 |
| 18 |
510025902 |
Arms This part replaces 510025901. Price: $37.99 |
| 19 |
522842701 |
Controls This part replaces 522559201. Price: $27.99 |
| 20 |
574866301 |
LINKAGE, BRAKE, UPPER Price: $27.99 |
| 21 |
574866501 |
LINKAGE, BRAKE, LOWER Price: $21.99 |
| 22 |
574866401 |
LINKAGE, BRAKE, MIDDLE Price: $30.99 |
| 23 |
574876401 |
LINKAGE, TWO SPEED Price: $18.99 |
| 24 |
596739901 |
Yoke This part replaces 539977465. Price: $27.99 |
| 25 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 26 |
539102454 |
E RING 3/4 Price: $2.99 |
| 27 |
596917801 |
Pins This part replaces 539110631. Price: $1.99 |
| 28 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 29 |
596919501 |
Clips This part replaces 522705901. Price: $4.99 |
| 30 |
529311401 |
FITTING, 4601-10-10 NOW Price: $14.99 |
| 31 |
574882201 |
ROD, BELT KEEPER Price: $29.99 |
| 32 |
523022101 |
ROD, CONTROL Price: $19.99 |
| 33 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 34 |
539977250 |
SPRING Price: $3.99 |
| 35 |
539104986 |
SPRING Price: $11.99 |
| 36 |
575621101 |
SWITCH, PLUNGER, SEALED Price: $24.99 |
| 37 |
525851402 |
Swivels This part replaces 525851401. Price: $4.99 |
| 38 |
539102590 |
BALL JOINT, RIGHT HANDED Price: $19.99 |
| 39 |
539109149 |
TURNBUCKLE, 3/8 Price: $39.99 |
| 40 |
575471001 |
BOLT, SHLD 3/8 X 5/16, 5/16-18 Price: $1.99 |
| 41 |
525544802 |
Screws This part replaces 525544801. Price: $2.99 |
| 42 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 43 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 44 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 45 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 46 |
574210602 |
Screws This part replaces 574210601. Price: $2.99 |
| 47 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 48 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 49 |
532110452 |
NUT PUSH M This part replaces 539107626. Price: $2.99 |
| 50 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
| 51 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 52 |
596040901 |
Hardware This part replaces 539990223. Price: $2.99 |
| 53 |
596433601 |
Nuts This part replaces 539115617. Price: $2.99 |
| 54 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 55 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 56 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
