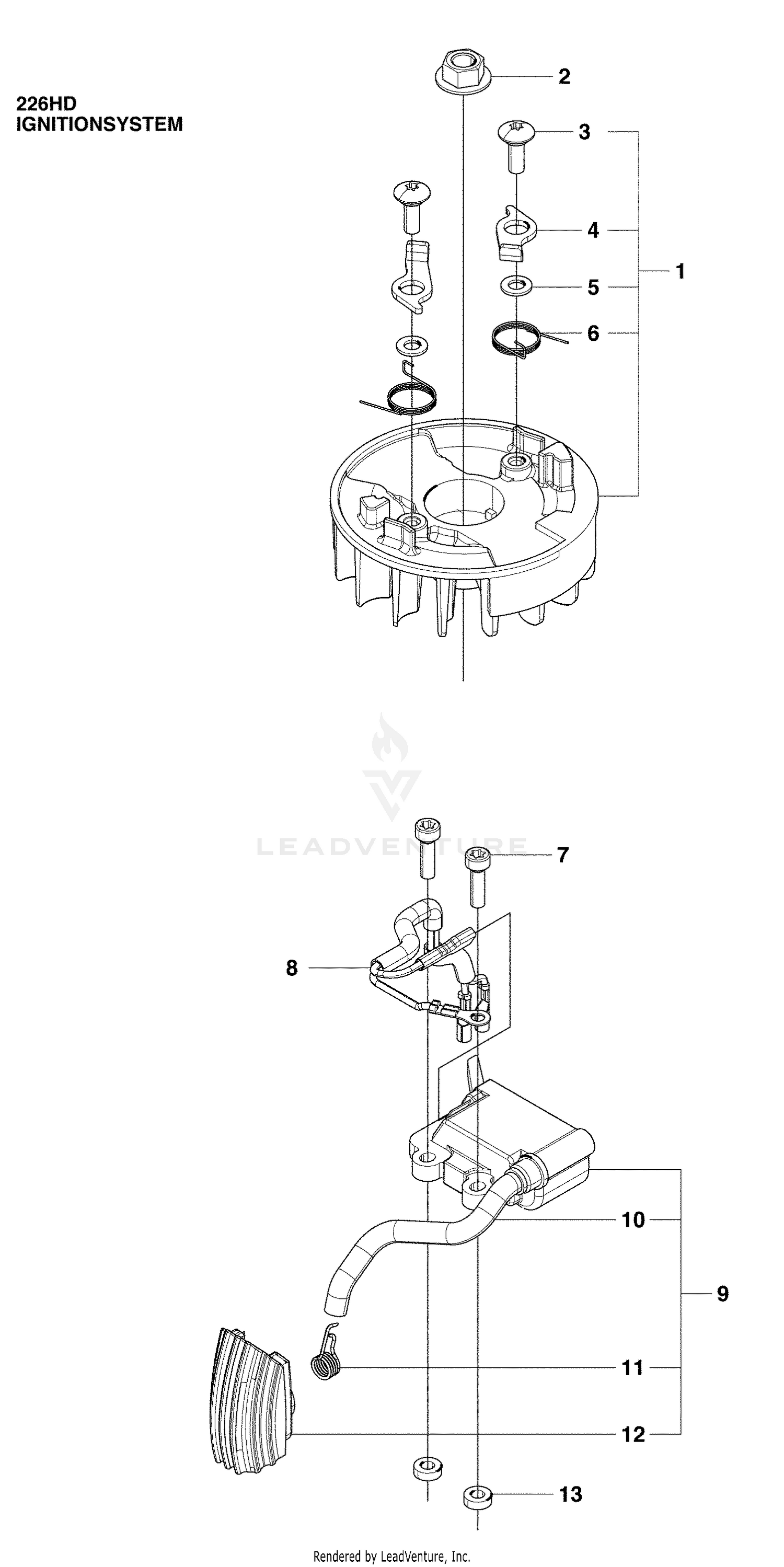

Ignition
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506656001 | ROTOR ASSY Price: $39.99 |
| 2 | 516437401 | NUT(RPLS 1140-43230&182301) This part replaces 505041501. Price: $2.99 |
| 3 | 506614301 | SCREW Price: $2.99 |
| 4 | 506614101 | PAWL Price: $4.99 |
| 5 | 505042501 | WASHER Price: $0.71 |
| 6 | 506674301 | SPRING Price: $6.99 |
| 7 | 506745701 | BOLT This part replaces 506616601. Price: $2.99 |
| 8 | 506652301 | CORD COMP Price: $7.99 |
| 9 | 589372401 | COIL ASSY This part replaces 506656101. Price: $59.99 |
| 10 | 506618201 | TUBE Price: $2.99 |
| 11 | 506655201 | SPRING Price: $2.99 |
| 12 | 521610001 | CAP Price: $5.99 |
