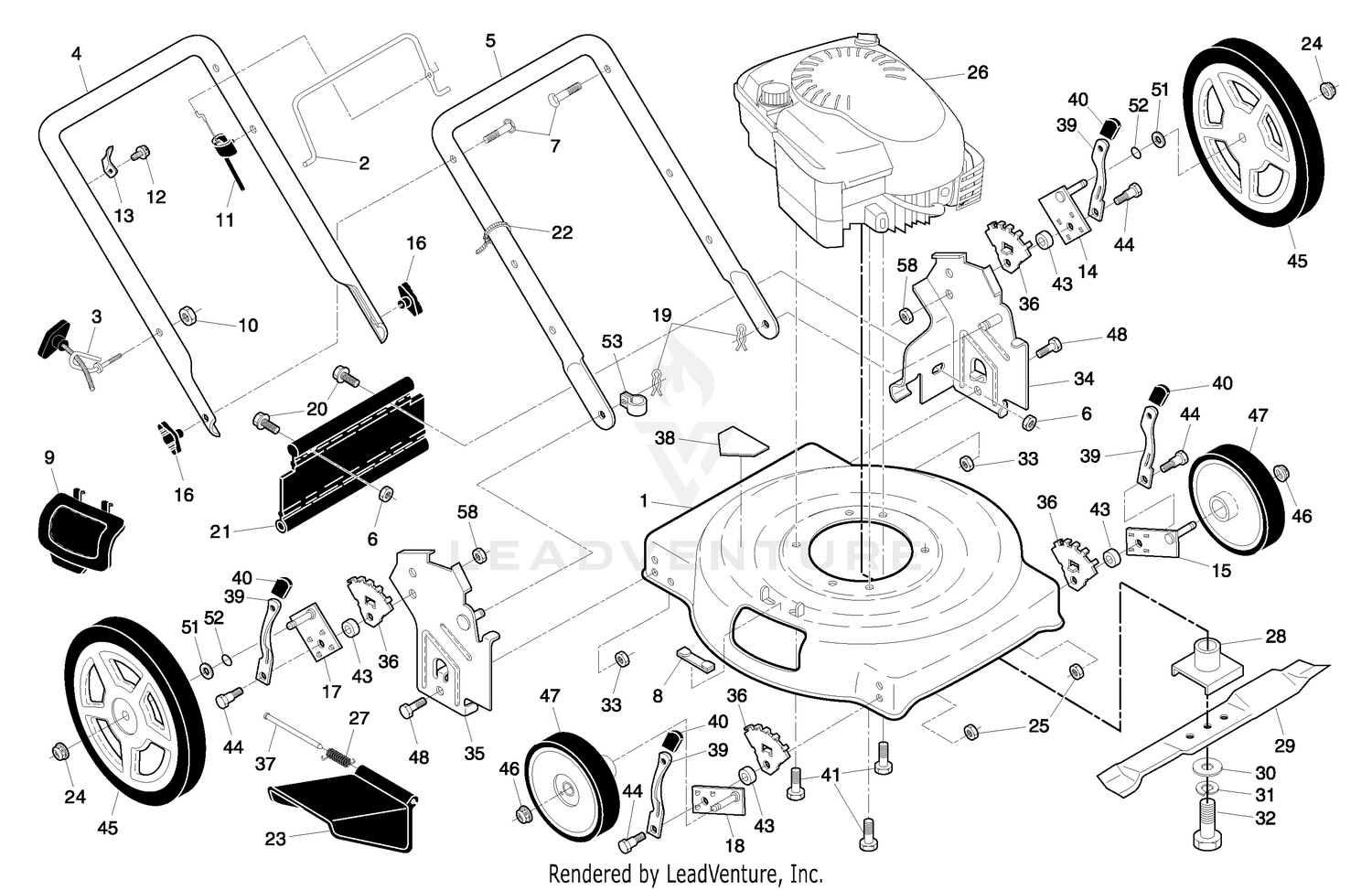

| Ref | Part Number | Description |
|---|
| 2 |
194177X428 |
Control Bar Price: Call Us |
| 3 |
179585 |
Rope Guide Price: Call Us |
| 4 |
194179X479 |
Upper Handle Price: Call Us |
| 5 |
169708X479 |
Lower Handle Price: Call Us |
| 6 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 7 |
191574 |
Handle Bolt 5/16-18 Price: Call Us |
| 8 |
161622 |
Clip, Closeout Price: Call Us |
| 9 |
160830 |
Plate, Mulcher Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
132004 |
Locknut, Hex 1/4-20 Price: Call Us |
| 11 |
158152 |
Engine Zone Control Cable Price: Call Us |
| 12 |
750634 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
180409X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 15 |
186577X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 16 |
189713X428 |
Handle Knob Price: Call Us |
| 17 |
180410X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 18 |
186578X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 19 |
51793 |
Hairpin Cotter Price: Call Us |
| 20 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 20 |
74760412 |
Screw, Hex Cap Head 1/4-20 Price: Call Us |
| 21 |
189008 |
Rear Deflector Price: Call Us |
| 22 |
664-26 |
Wire Tie Price: Call Us |
| 23 |
160831 |
Discharge Guard Price: Call Us |
| 24 |
145212 |
Nut, Hex, Flangelock 3/8-16 Price: Call Us |
| 25 |
166785 |
Nut, Hex, Flangelock 5/16-18 Price: Call Us |
| 27 |
193436 |
Torsion Spring Price: Call Us |
| 28 |
193707 |
Blade Adapter Price: Call Us |
| 30 |
108-7088 |
BOLT Price: $1.22 |
| 30 |
851074 |
Hardened Washer Price: Call Us |
| 31 |
850263 |
Helical Lockwasher 3/8 Price: Call Us |
| 32 |
851084 |
Screw, Hex Head 3/8-24 x 1-3/8(Grade 8) Price: Call Us |
| 33 |
751153 |
Nut, Hex, Nylock 5/16-18 Price: Call Us |
| 34 |
196963X479 |
Handle Bracket, LH Price: Call Us |
| 35 |
196962X479 |
Handle Bracket, RH Price: Call Us |
| 36 |
160835X007 |
Wheel Bracket Adjuster Price: Call Us |
| 37 |
160833 |
Hinge Rod Price: Call Us |
| 38 |
85463 |
Danger Decal Price: Call Us |
| 39 |
168360X004 |
Selector Spring Price: Call Us |
| 40 |
87877 |
Selector Knob Price: Call Us |
| 40 |
98-9360 |
BOLT Price: $2.35 |
| 41 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 43 |
183901 |
Spacer Price: Call Us |
| 44 |
160828 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 45 |
193926X460 |
Wheel & Tire Assembly, Rear, 12" Price: Call Us |
| 46 |
83923 |
Nut, Hex, Flangelock 3/8-16 Price: Call Us |
| 47 |
193905X460 |
Wheel & Tire Assembly, Front, 8" Price: Call Us |
| 48 |
74760514 |
Hex Head Bolt 5/16-18 Price: Call Us |
| 50 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 51 |
88348 |
Washer, Flat Price: Call Us |
| 52 |
197480 |
O-Ring Price: Call Us |
| 53 |
192770 |
Clip, Cable Price: Call Us |
| 58 |
73800500 |
Nut, Hex, Nylock 5/16-18 Price: Call Us |
| 60 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 70 |
98-7738 |
WASHER-SPRING Price: $0.24 |
| 80 |
100-9233 |
WASHER-PLAIN Price: $0.48 |
| 90 |
98-7692 |
BOLT Price: $0.92 |
| 110 |
98-9473 |
PULLEY-DRIVE, FAN Price: $319.19 |
| 120 |
98-9585 |
BOLT Price: $15.20 |
| 130 |
98-9676 |
V-BELT Price: $31.01 |
| 140 |
98-9584 |
PULLEY-FAN Price: $89.56 |
