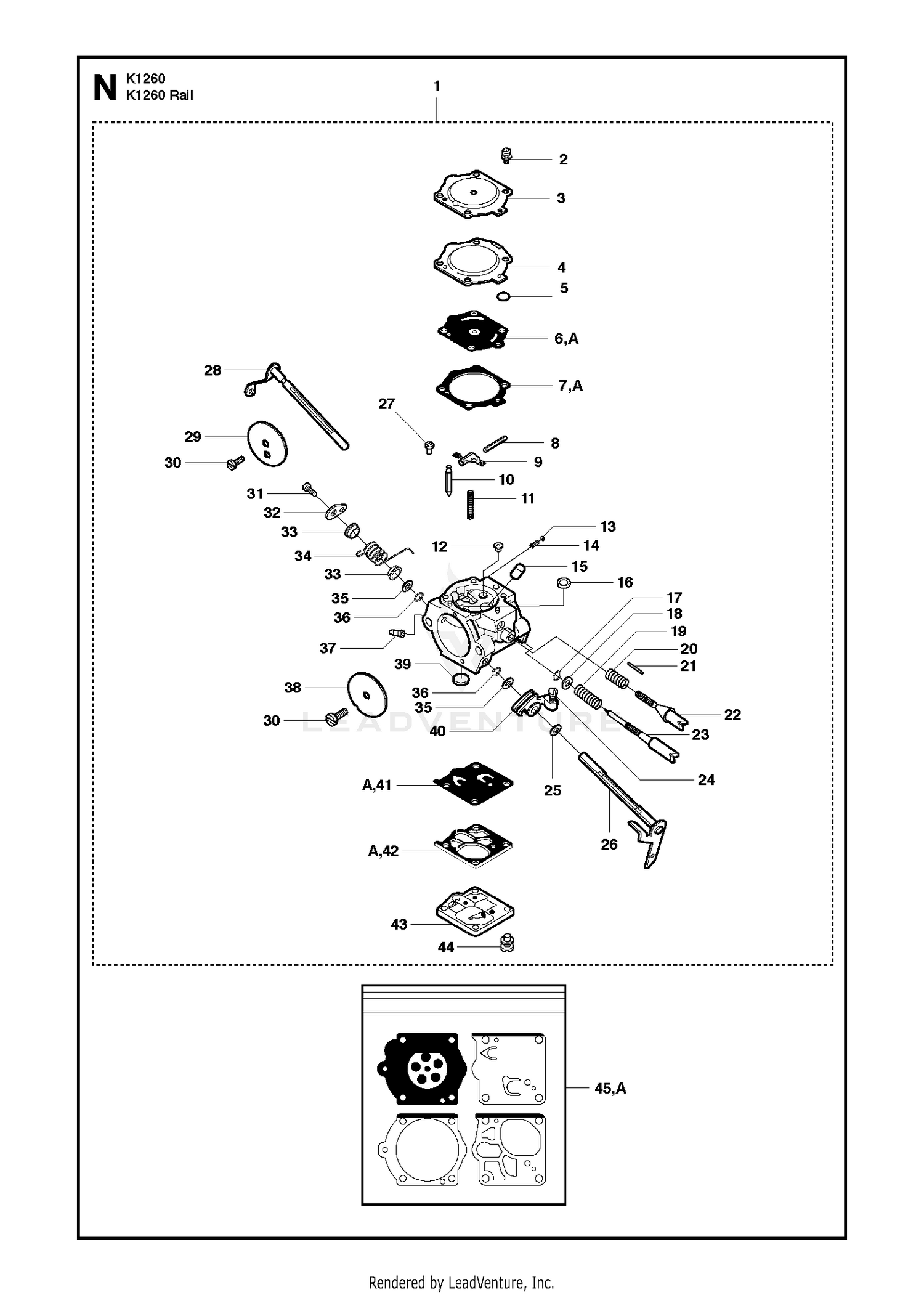

CARBURETOR DETAILS
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503281270 | CARBURET0R Price: $199.99 |
| 2 | 537003101 | SCREW Price: $7.99 |
| 3 | 501692801 | COVER DIAPH Price: $3.99 |
| 4 | 537002901 | COVER Price: $3.99 |
| 5 | 537002801 | WASHER Price: $2.99 |
| 8 | 505316731 | PIN Price: $6.99 |
| 9 | 505316734 | LEVER Price: $11.99 |
| 10 | 503563401 | INLET NEEDLE Price: $14.99 |
| 12 | 537153401 | JET Price: $3.99 |
| 13 | 501468501 | BALL Price: $6.99 |
| 14 | 501468401 | SPRING Price: $6.99 |
| 15 | 503976601 | JET Price: $5.99 |
| 16 | 503574201 | WELCH PLUG Price: $6.99 |
| 17 | 503595501 | O-RING Price: $9.99 |
| 18 | 503597201 | Washer Price: $0.81 |
| 19 | 505316737 | PRESSURE SPRING Price: $12.99 |
| 20 | 503633101 | SPRING-MIX NEEDLE Price: $8.99 |
| 21 | 503526001 | ADJ NEEDLE-LO,CARB Price: $8.40 |
| 22 | 503632901 | ADJ SCREW-LO,CARB Price: $39.99 |
| 23 | 503633201 | HI-NEEDLE,CARB Price: $5.99 |
| 24 | 503596501 | SCREW Price: $9.99 |
| 25 | 506028301 | WASHER Price: $11.99 |
| 26 | 503595901 | THROTTLE SHAFT Price: $4.55 |
| 27 | 505316717 | SCREW Price: $6.99 |
| 28 | 537003001 | SHAFT Price: $8.99 |
| 29 | 503525801 | CHOKE SHUTTER Price: $2.99 |
| 30 | 530035015 | SCREW SHUTTERS Price: $2.99 |
| 31 | 503192201 | SCREW Price: $2.99 |
| 32 | 503595601 | LEVER Price: $2.99 |
| 33 | 502103101 | BUSHING Price: $9.99 |
| 34 | 503525901 | SPRING,THROTTLE RETURN Price: $27.99 |
| 35 | 505316748 | SPACER Price: $1.99 |
| 36 | 503564501 | WASHER Price: $32.99 |
| 37 | 503598401 | FUEL NIPPLE-CARB Price: $8.31 |
| 38 | 503632401 | SHUTTER-THROTTLE Price: $27.99 |
| 39 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 40 | 503595701 | LEVER Price: $3.99 |
| 43 | 503595801 | COVER Price: $37.99 |
| 44 | 503117501 | SCREW W/ WASHER Price: $7.99 |
| 45 | 503597402 | DIAPHRAM SET Price: $14.99 |
