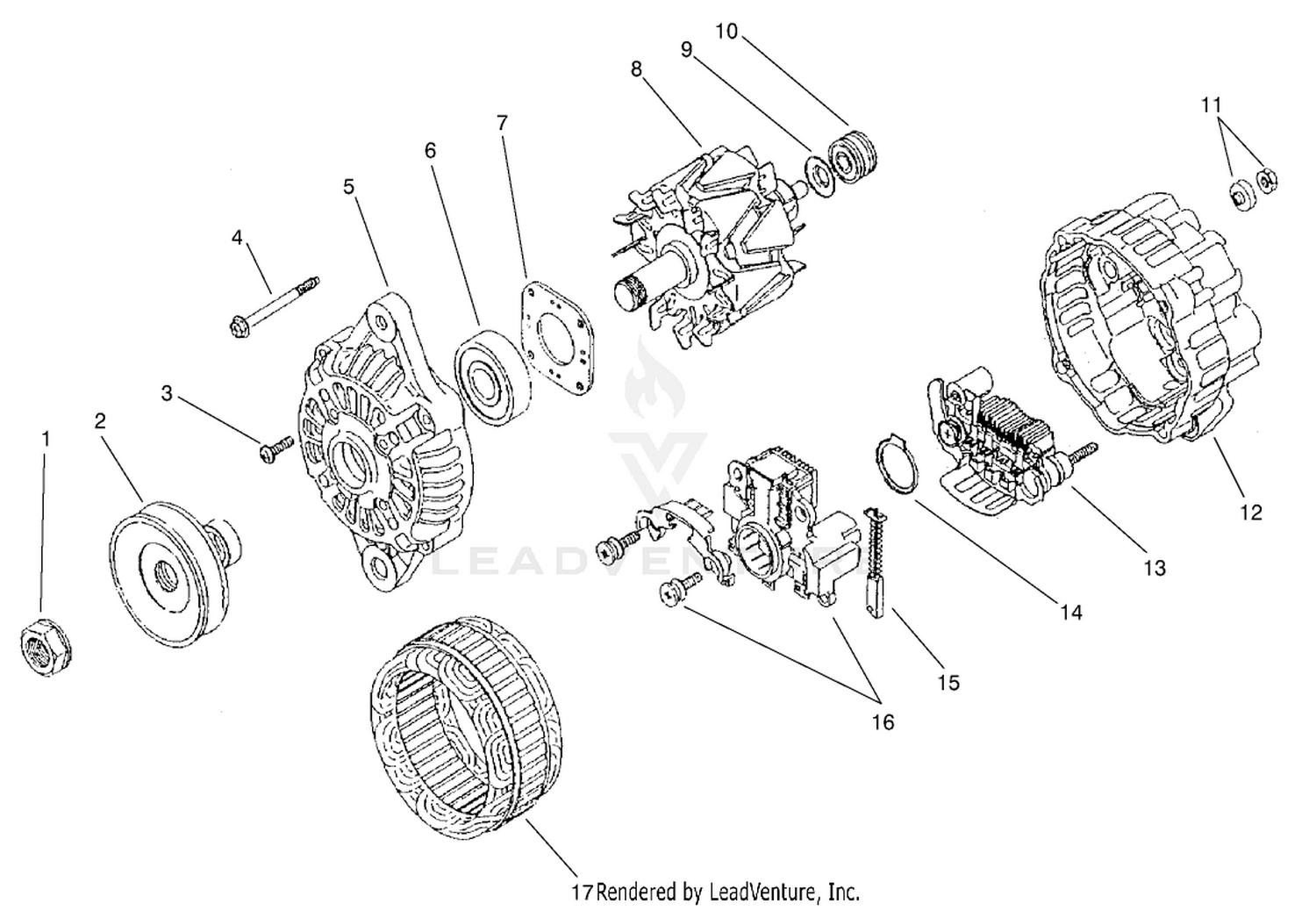

Alternator Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-3578 | NUT-SET Price: $8.04 |
| 2 | 99-2271 | PULLEY ASM Price: $98.99 |
| 3 | 93-3582 | SCREW SET Price: $3.82 |
| 4 | 93-3580 | BOLT SET Price: $17.04 |
| 6 | 93-3583 | BEARING FRONT Price: $57.00 |
| 10 | 98-2932 | BEARING-REAR This part replaces 93-3585. Price: $39.33 |
| 11 | 99-2275 | NUT SET Price: $5.66 |
| 13 | 99-2274 | RECTIFIER ASM Price: $239.46 |
| 15 | 93-3589 | BRUSH Price: $56.12 |
| 17 | 93-3586 | START ASSY Price: $663.23 |
