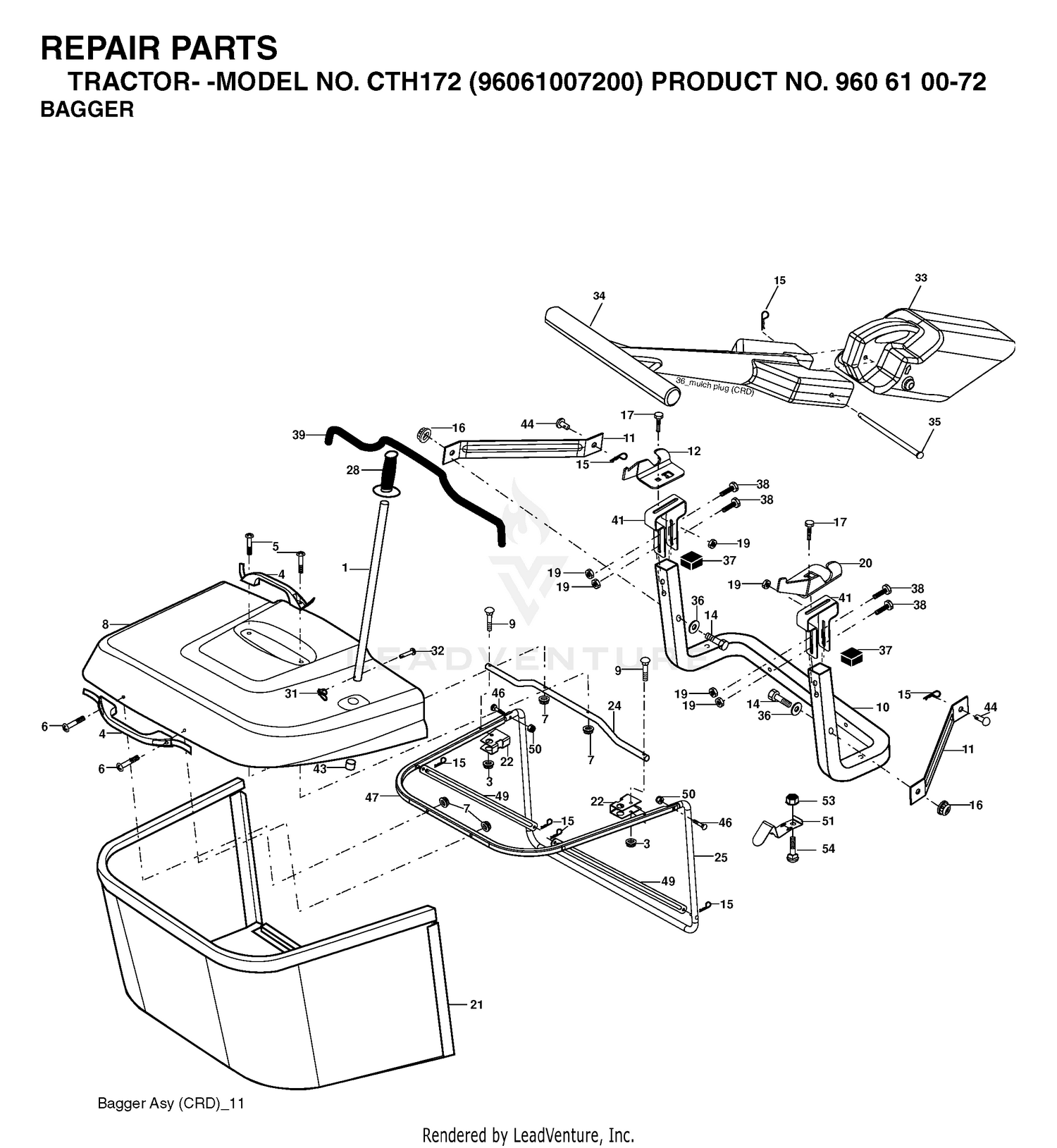

| Ref | Part Number | Description |
|---|
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532193838 |
NEEDS DESCRIPTION Price: Call Us |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 25 |
583211601 |
TUBE.FRONT.BAGGER.CRD This part replaces 532193705. Price: $84.99 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
532428683 |
MULCHING.PLUG.107.CRD.(2 2) This part replaces 532169380. Price: $37.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 44 |
532193312 |
NEEDS DESCRIPTION Price: Call Us |
| 46 |
873110510 |
NEEDS DESCRIPTION Price: Call Us |
| 47 |
583211501 |
TUBE.UPPER.BAGGER.CRD This part replaces 532193704. Price: $279.99 |
| 49 |
583208201 |
BAR.SPREADER.BAGGER.CRD This part replaces 532193305. Price: $12.99 |
| 50 |
872800500 |
NEEDS DESCRIPTION Price: Call Us |
| 51 |
529846601 |
SERVICE KIT LATCH.SPRING.BAGGE This part replaces 532199903. Price: $1.99 |
| 53 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
