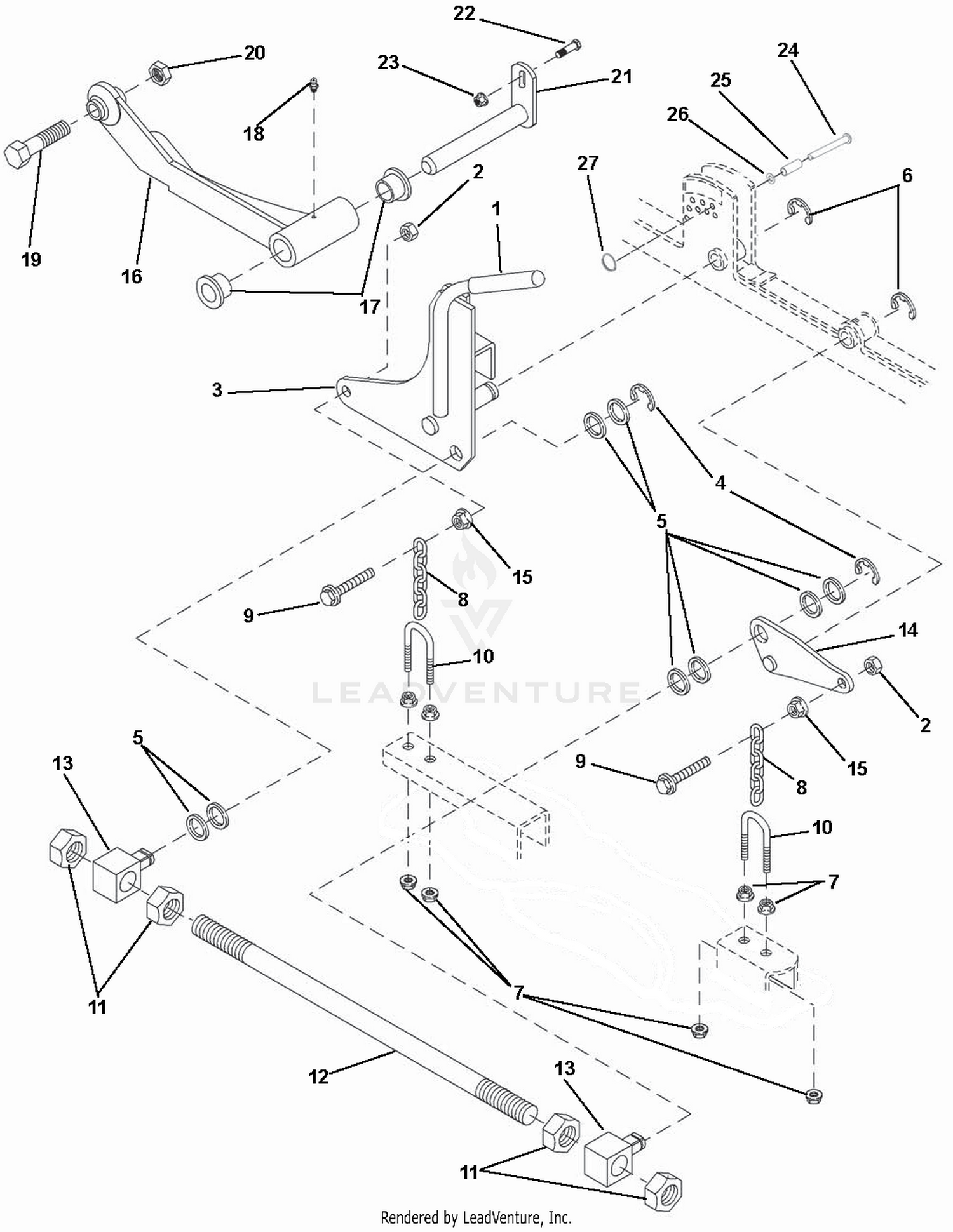

| Ref | Part Number | Description |
|---|
| GDA10007 |
WLDT, |
RH FRONT LIFT ARM Price: $52.75 GDA10007 |
| GDA10009 |
WLDT, |
RH REAR ARM LIFT Price: Call Us GDA10009 |
| 1 |
D18225 |
GRIP, CONTROL LEVER Price: $5.20 |
| 2 |
06500034 |
LOCKNUT, M10X1.50 WHIZ GR10 Y Price: $2.95 |
| 3 |
GDA10010 |
WLDT, LH REAR ARM LIFT Price: $89.00 |
| 4 |
P46402 |
RING, RETAINING Price: Call Us |
| 5 |
24H1413 |
WASHER,JDS24-.891X1.375X.048-S This part replaces 06400029. Price: $3.45 |
| 6 |
R27434 |
RING, RETAINER (E SERIES) Price: Call Us |
| 7 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 8 |
00150749 |
CHAIN, 6 LINKS Price: $13.45 |
| 9 |
05955200 |
BLT M10 X 1.5X40 YWZC Price: $1.30 |
| 10 |
05900118 |
U-BOLT Price: Call Us |
| 12 |
TCU15817 |
ROD, DECK LIFT Price: Call Us |
| 13 |
00200075 |
SWIVEL, DECK LIFT Y Price: $36.70 |
| 14 |
GDA10008 |
WLDT, LH FRONT LIFT ARM Price: Call Us |
| 15 |
06500034 |
LOCKNUT, M10X1.50 WHIZ GR10 Y Price: $2.95 |
| 17 |
M83541 |
BEARING, FLANGED Price: $3.45 |
| 18 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 20 |
06500031 |
LOCKNUT, 3/4-16 CROWN GR 8 Y This part replaces 00964024. Price: $3.45 |
| 21 |
TCA13292 |
PIN, WELDED Price: $89.95 |
| 23 |
06500817 |
NUT,NYL M8-1.25 G8.8 ZCC This part replaces 06541700. Price: $1.45 |
| 24 |
06821400 |
PIN-CLEV .468X4.16X3.89 YWZC This part replaces 06800007. Price: $3.45 |
| 25 |
TCU15892 |
BUSHING, H.O.C. PIN Price: Call Us |
| 26 |
H143731 |
PUSHNUT, M12 BOLT RETAINER Price: Call Us |
