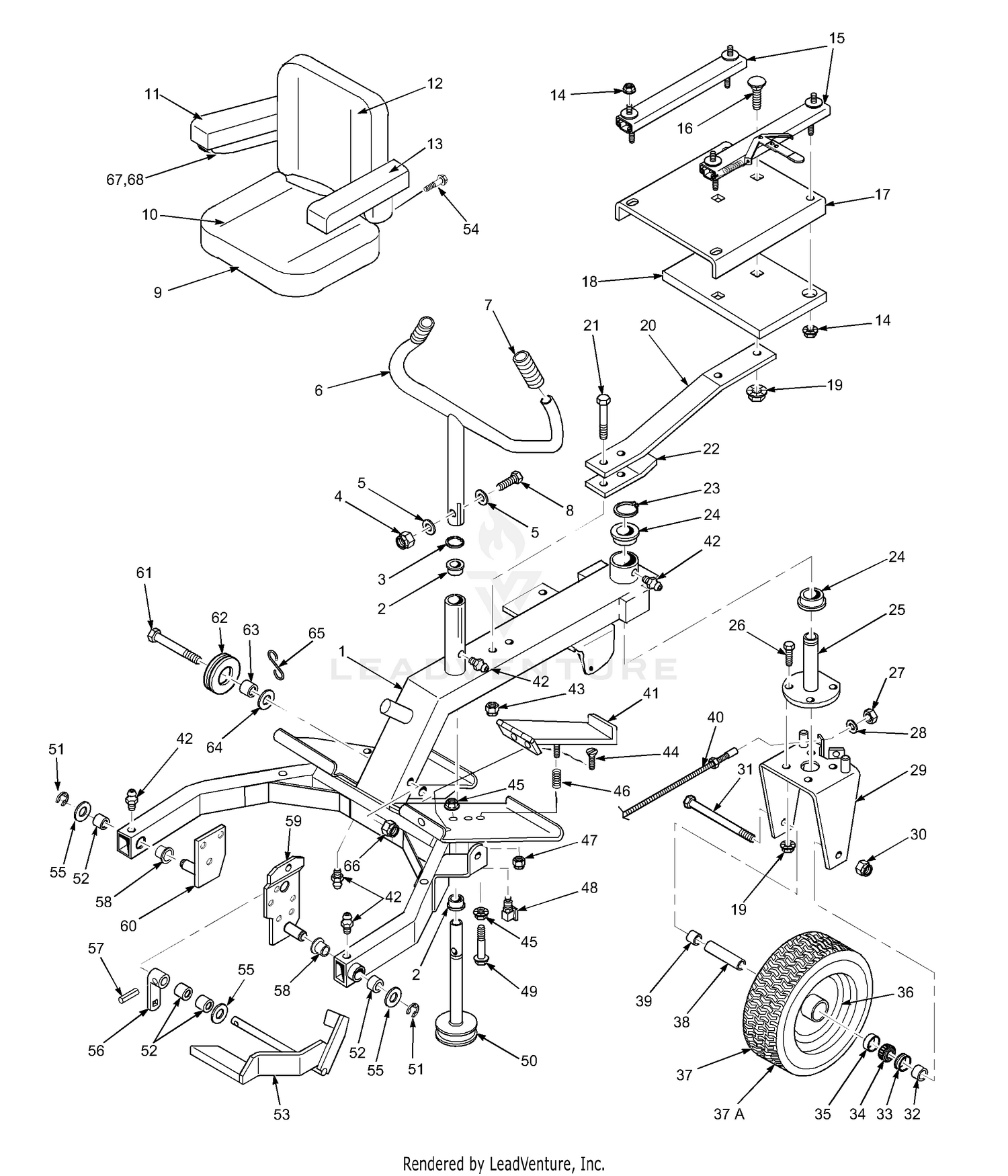

| Ref | Part Number | Description |
|---|
| 2 |
48100-01 |
Bronze Bushing, 7/8 ID x 1.0 Flanged Price: Call Us |
| 3 |
04050-03 |
Retaining Ring, 7/8 external Price: Call Us |
| 4 |
04021-10 |
Hex Nut, Elastic Stop 5/16-18 Price: Call Us |
| 5 |
04040-15 |
Flat Washer, 5/16 (3/8 x 7/8 x 13 ga.) Price: Call Us |
| 7 |
48159 |
Grip Price: Call Us |
| 8 |
04001-12 |
Bolt, Hex Hd., 5/16-18 x 1-3/4" Price: Call Us |
| 10 |
482111 |
Cushion, Lower Seat This part replaces 482106. Price: Call Us |
| 11 |
482108 |
Arm Pad - R.H. Price: Call Us |
| 12 |
484716 |
BACK CUSHION This part replaces 482105. Price: Call Us |
| 13 |
482107 |
Arm Pad - L.H. Price: Call Us |
| 14 |
04019-03 |
Serr. Fl. HH. Nut, 5/16-18 Price: Call Us |
| 15 |
46570 |
Seat Adjuster Track Price: Call Us |
| 16 |
04003-05 |
Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61") Price: Call Us |
| 17 |
421342 |
Seat Plate Price: Call Us |
| 18 |
42482 |
Ballast, Seat Mount (72" cutter deck only) Price: Call Us |
| 19 |
04019-04 |
Serr Fl. Hex Nut, 3/8-16 Price: Call Us |
| 20 |
42026 |
Seat Spring Price: Call Us |
| 21 |
04001-83 |
Bolt, Hex Hd., 7-16-14 x 3-1/2" Price: Call Us |
| 22 |
42366 |
Reinforcement, Seat Spring Price: Call Us |
| 23 |
04050-05 |
Retaining Ring, 1-1/8" external Price: Call Us |
| 24 |
48100-02 |
Bushing, Oilite - 1-1/8 ID x 1.0 Flanged Price: Call Us |
| 25 |
45008 |
Rear Wheel Pivot Price: Call Us |
| 26 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 29 |
45035 |
Rear Wheel Yoke Price: Call Us |
| 30 |
04021-13 |
Hex Elastic Stop Nut, 5/8-11 Price: Call Us |
| 31 |
04001-40 |
Bolt, Hex Hd. 5/8-11 x 9" Price: Call Us |
| 32 |
43020-01 |
Spacer, Rear Wheel, short Price: Call Us |
| 33 |
481897 |
Seal, Grease Price: Call Us |
| 34 |
481896 |
Bearing Cone Price: Call Us |
| 35 |
481895 |
Bearing Cup Price: Call Us |
| 36 |
481894 |
Rim Only Price: Call Us |
| 37A |
481893 |
Tire Only Price: Call Us |
| 38 |
43021 |
Sleeve, Rear Wheel Price: Call Us |
| 39 |
43020-02 |
Spacer, Rear Wheel Price: Call Us |
| 41 |
45606 |
Pedal, Foot Safety Switch Price: Call Us |
| 42 |
48114-04 |
Grease Fitting Price: Call Us |
| 43 |
04021-11 |
Hex Elastic Stop Nut, 7/16-14 Price: Call Us |
| 44 |
04010-17 |
Screw, Phillips flat hd #10-32 x 3/4" Price: Call Us |
| 45 |
04019-02 |
Serr. Fl. Hex Nut, 1/4-20 Price: Call Us |
| 46 |
481056 |
Spring, Foot Safety Switch Price: Call Us |
| 47 |
04021-08 |
Hex Nut, Elastic Stop Lock, 1/4-20 Price: Call Us |
| 48 |
481476 |
Switch, Foot Safety Price: Call Us |
| 49 |
04001-02 |
Bolt, Hex Hd., 1/4-20 x 1-3/4" Price: Call Us |
| 50 |
45009 |
Steering Shaft Price: Call Us |
| 51 |
04050-02 |
Retaining Ring 3/4 Ext. "E" Price: Call Us |
| 52 |
48100-06 |
Bushing, Oillube - 3/4 ID x 1.0 Price: Call Us |
| 53 |
45502 |
Foot Pedal Price: Call Us |
| 54 |
04010-22 |
Screw w/washer, 1/4-20 x .75" Price: Call Us |
| 55 |
04041-08 |
Flat Washer, 3/4 x 1-1/4 x 16 Ga. Price: Call Us |
| 56 |
45506 |
Foot Pedal Arm Price: Call Us |
| 57 |
04065-01 |
Pin, Drive Lock 3/16 x 1-1/4" Price: Call Us |
| 58 |
48100-03 |
Bushing, oillube - 3/4 x .50 Flanged Price: Call Us |
| 59 |
45488 |
Sulky Mtg. Brkt. L.H. Price: Call Us |
| 60 |
45256 |
Sulky Mtg. Brkt. R.H. Price: Call Us |
| 61 |
04001-37 |
Bolt, Hex Hd., 1/2-13 x 5-1/2" Price: Call Us |
| 62 |
48208 |
Pulley, Winch Cable Price: Call Us |
| 63 |
48100-04 |
Bushing, Oillube - 1/2 ID x .56 Price: Call Us |
| 64 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 65 |
44028 |
Retainer, Winch Cable Price: Call Us |
| 66 |
04021-07 |
Hex Elastic Stop Nut, 1/2-13 Price: Call Us |
| 67 |
482109 |
Arm Rest Bracket, Left Hand Price: Call Us |
