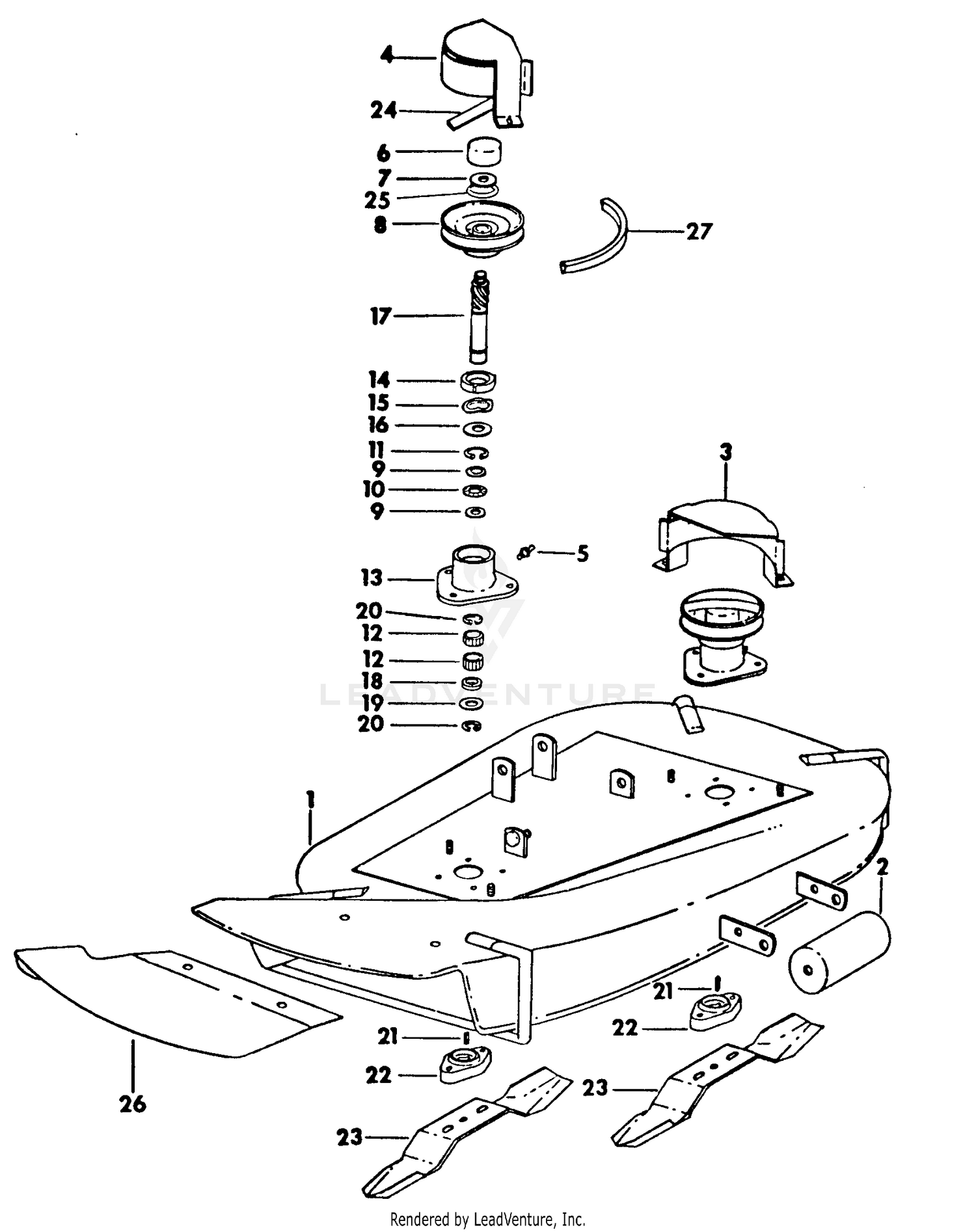

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
731-3005 |
Roller, Front Price: $26.47 |
| 2 |
94-3647 |
CHARGE PUMP ADAPTER ASM Price: $628.11 |
| 3 |
703-0387 |
SHIELD ASSY, LH Not Available Price: |
| 3 |
94-3648 |
GEROTOR AND COUPLER ASM Price: $680.16 |
| 4 |
703-0390 |
SHIELD ASSY, RH Not Available Price: |
| 5 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 5 |
94-3650 |
VALVE-PUMP Price: $171.97 |
| 6 |
IH-38779-H |
Plug Price: Call Us |
| 7 |
94-3649 |
PLATE-VALVE Price: $316.33 |
| 7 |
IH-539222-R2 |
WASHER Not Available Price: |
| 8 |
756-3017 |
PULLEY-OUTER Not Available Price: |
| 9 |
60-6330 |
SCREW Price: $6.91 |
| 9 |
736-0617 |
Thrust Washer, .75 x 1.25 x .0615 This part replaces IH-56645-C1. Price: $10.05 |
| 10 |
76-6090 |
COVER-TRUNNION Price: $9.19 |
| 10 |
IH-324105-R92 |
Thrust Bearing, .75 x 1.25 x .078 This part replaces IH-324105-R91. Price: $9.94 |
| 11 |
716-3004 |
RING, 1-1/4 INTER RETAINING Not Available Price: |
| 11 |
76-6100 |
DISCONTINUED Price: Call Us |
| 12 |
741-0665 |
Needle Bearing This part replaces 741-3010. Price: $18.80 |
| 12 |
76-6140 |
O-RING Price: $4.42 |
| 13 |
719-3021 |
BLADE SHAFT HOUSING Not Available Price: |
| 13 |
76-6180 |
DISCONTINUED Price: Call Us |
| 14 |
33-3750 |
RACE-INNER Price: $77.27 |
| 14 |
719-3022 |
BRAKE INSERT Not Available Price: |
| 15 |
252-95 |
BEARING-NEEDLE Price: $19.11 |
| 15 |
IH-539225-R1 |
WAVE WASHER Not Available Price: |
| 16 |
IH-539467-R1 |
WASHER Not Available Price: |
| 17 |
711-3071 |
SHAFT, BLADE Not Available Price: |
| 17 |
94-3641 |
HOUSING ASM Price: $527.47 |
| 18 |
721-3007 |
GREASE SEAL Not Available Price: |
| 18 |
76-6080 |
DISCONTINUED Price: Call Us |
| 19 |
736-3047 |
Washer, Thrust Price: $9.22 |
| 19 |
76-6190 |
SEAL-SHAFT Price: $37.70 |
| 20 |
716-0101 |
Ring, 3/4 External Retaining Price: $3.37 |
| 20 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 21 |
714-3009 |
Key, 3/16 X 1/2 Sq Parallel Price: $3.24 |
| 21 |
94-3646 |
KEY Price: $6.56 |
| 22 |
719-3023 |
BLADE ADAPTER Not Available Price: |
| 22 |
94-3643 |
CAMPLATE Price: $1,264.74 |
| 23 |
70-1240 |
PLUG ASM Price: $51.46 |
| 23 |
759-3814 |
BLADE 18.3LG QTY-2 (742-3004) Not Available This part replaces 742-3004. Price: |
| 24 |
76-6200 |
SPRING Price: $5.86 |
| 24 |
IH-55619-C1 |
SPRING-RET Not Available Price: |
| 25 |
94-3644 |
SEAT Price: $103.95 |
| 25 |
IH-364108-R1 |
RING Not Available Price: |
| 26 |
33-4930 |
GASKET-HOUSING Price: $24.06 |
| 27 |
94-3640 |
BACKPLATE ASM Price: $939.56 |
| 27 |
954-3011 |
V-BELT 1/2 x 68 3/4 Not Available This part replaces 754-3011. Price: |
| 29 |
322-20 |
SCREW-HH Price: $1.79 |
| 31 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 32 |
94-3645 |
KEY Price: $13.07 |
| 33 |
94-3642 |
SHAFT-DRIVE Price: $578.05 |
| 34 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 35 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 36 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 37 |
33-3270 |
DISCONTINUED Price: Call Us |
| 38 |
104-4861 |
SEAL-SHAFT This part replaces 42-2720. Price: $28.44 |
| 39 |
32151-13 |
RING-RETAINING Price: $4.39 |
