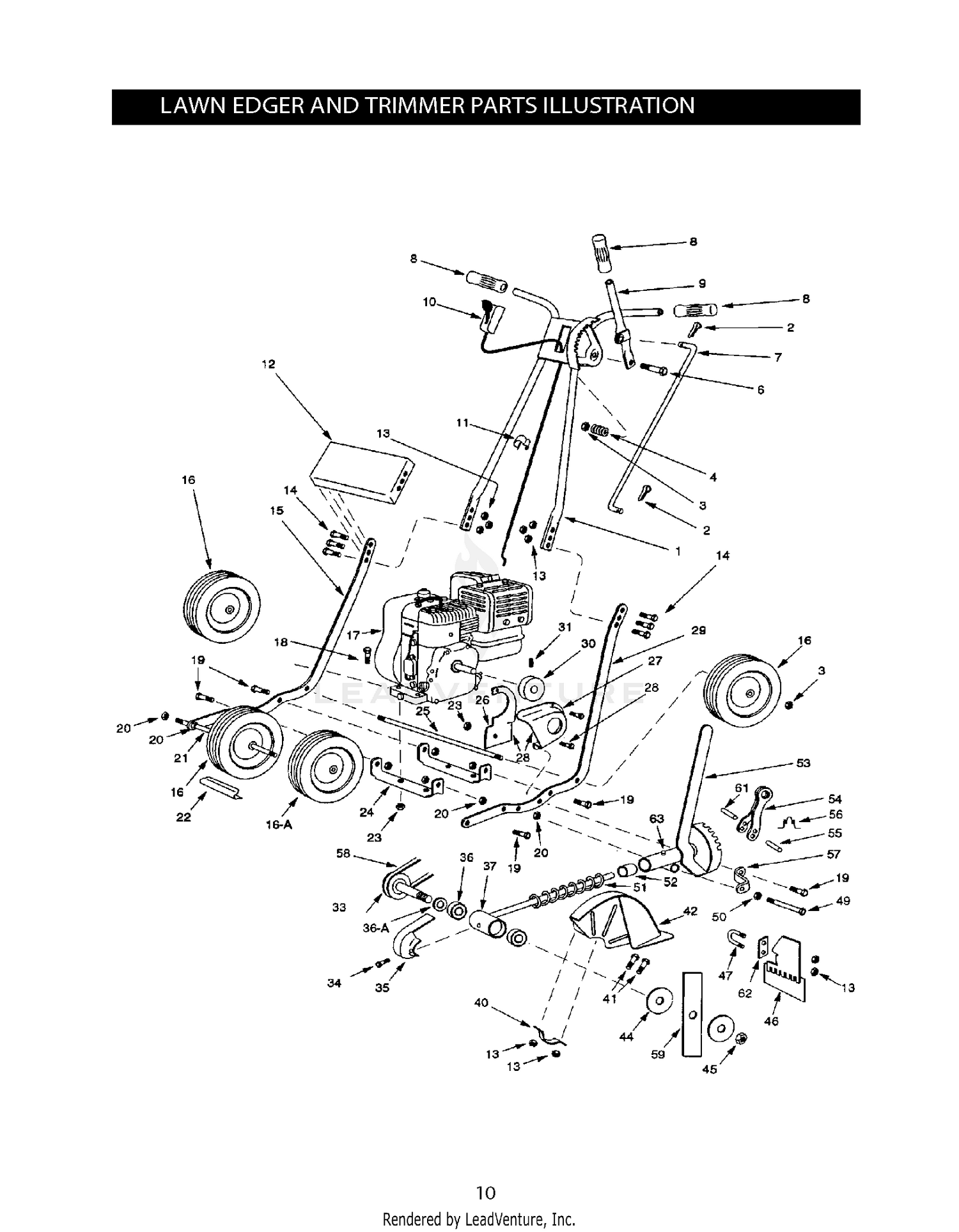

PRODUCT COMPLETE
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505289901 | HANDLE Price: $119.99 |
| 2 | 505289902 | COTTER PIN 1/8 X 1/2 Price: $2.99 |
| 3 | 505289903 | LOCK NUT 7/16-14 Price: $2.99 |
| 4 | 505289904 | HANDLE SPRING Price: $17.99 |
| 6 | 505289905 | BOLT 7/16-14 X 2 Price: $3.99 |
| 7 | 505289906 | CLUTCH DEPTH ROD Price: $34.99 |
| 8 | 505289907 | DRIVE/CLUTCH LEVER GRIP Price: $8.99 |
| 9 | 505289908 | CLUTCH DEPTH LEVER Price: $44.99 |
| 10 | 505289909 | THROTTLE CONTROL Price: $99.99 |
| 11 | 505289910 | THROTTLE CLIP Price: $2.99 |
| 12 | 505289911 | HANDLE CROSS BRACE Price: $19.99 |
| 13 | 505289912 | NUT-SERR FLANGE 1/4-20 Price: $2.99 |
| 14 | 505289913 | HEX BOLT 1/4-28 X 7/8 Price: $2.99 |
| 15 | 505289914 | FRAME RIGHT 8" Price: $89.99 |
| 16 | 505289915 | HUB CAP Price: $3.99 |
| 16 | 505289918 | WHEEL BEARING HW11AB Price: $11.99 |
| 16A | 505289919 | FRONT WHEEL COMP - 7" PLASTIC Price: $49.99 |
| 18 | 505289924 | BOLT 5/16-24 X 1.5 Price: $2.99 |
| 19 | 505289925 | BOLT 5/16-24 X 7/8 Price: $2.99 |
| 20 | 505289926 | NUT 7/16-14 Price: $2.99 |
| 21 | 505289927 | FRONT AXLE Price: $37.99 |
| 23 | 505289929 | NUT 5/16-24 Price: $2.99 |
| 24 | 505289930 | FRAME CROSSMEMBER-8" Price: $11.99 |
| 26 | 505289932 | PULLEY GUARD BRRACKET Price: $44.99 |
| 27 | 505289933 | PULLEY GUARD Price: $22.99 |
| 28 | 505289934 | ENGINE PULLEY GUARD W/BRKT Price: $39.99 |
| 28 | 505289935 | SHEET METAL SCREW #10 X 1/2 Price: $3.99 |
| 29 | 505289936 | LEFT FRAME 8" Price: $49.99 |
| 30 | 505289937 | ENGINE PULLEY Price: $22.99 |
| 31 | 525594401 | SET SCREW Price: $7.99 |
| 33 | 505289938 | CUTTER HEAD & SHAFT COMP Price: $129.99 |
| 34 | 505289939 | ROLOK SCREW 1/4-20 X 1/2 Price: $2.99 |
| 35 | 505289940 | CUTTERHEAD PULLEY GUARD Price: $27.99 |
| 36 | 505289941 | CUTTERHEAD BEARING 6202-2RS-10 Price: $39.99 |
| 36A | 505289943 | WASHER Price: $3.99 |
| 37 | 505289942 | HEAD MANDREL Price: $69.99 |
| 40 | 505289944 | BLADE CLAMP Price: $6.99 |
| 41 | 505289945 | BOLT 1/4-20 X 1.5 Price: $2.99 |
| 42 | 505289946 | MAIN BLADE GUARD Price: $69.99 |
| 42 | 505289947 | BLADE GUARD COMPLETE Price: $109.99 |
| 44 | 505289948 | FRICTION WASHER Price: $8.99 |
| 45 | 505289949 | HEX NUT 1/2-20 Price: $2.99 |
| 46 | 505289950 | DEBRIS DEFLECTOR Price: $39.99 |
| 47 | 505289951 | U-CLAMP Price: $8.99 |
| 47 | 505289952 | DEBRIS GUARD COMPLETE Price: $21.25 |
| 49 | 505289953 | PIVOT BOLT 7/16-14 X 3.25 Price: $6.99 |
| 50 | 505289954 | FLAT WASHER 7/16 Price: $2.99 |
| 52 | 505289956 | CUP Price: $3.99 |
| 53 | 505289957 | CUTTERHEAD BODY Price: $99.99 |
| 54 | 505289958 | ANGLE SHIFTING LEVER Price: $44.99 |
| 55 | 505289959 | ROLL PIN 5/16 X 1.5 Price: $2.99 |
| 56 | 505289960 | SPRING-DOUBLE TORSION Price: $8.99 |
| 57 | 505289961 | CUTTERHEAD BRACE Price: $17.99 |
| 59 | 505289963 | HD 2"X9" EDGER BLADE Price: $9.99 |
| 61 | 505289964 | ROLL PIN 5/16 X 1.25 Price: $2.99 |
| 62 | 505289965 | U-CLAMP SPACER Price: $9.99 |
| 63 | 505289966 | GREASE FITTING Price: $6.99 |
