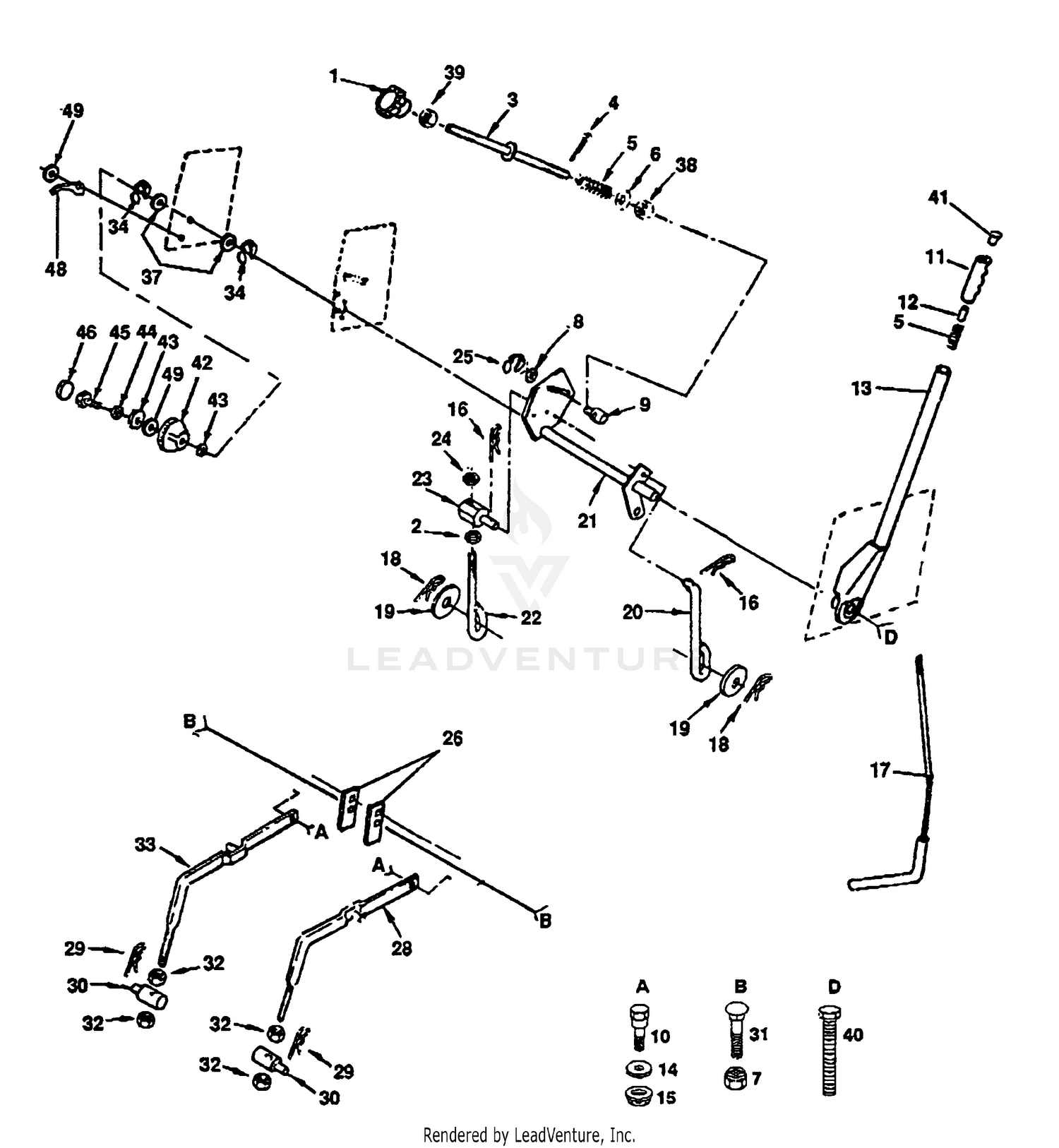

Lift Adjustment

Lift Adjustment

Parts (63)

RefPart NumberDescription
1 532121891 HDLE ADJ LIFT Price: $4.99
1 84-0940 FORK-BRAKE, RH Price: $74.96
2 302-5 FITTING-GREASE Price: $0.59
2 873610700 NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99
3 532110729 ROD LIFT LT Price: $18.99
3 76-9690-03 ROD-BRAKE This part replaces 76-9690. Price: $52.07
4 596917601 Pins This part replaces 876020308. Price: $1.99
4 86-5840 PLATE-SPRING Price: $7.17
5 532002876 SPRING This part replaces 532124874. Price: $3.99
5 86-5830 SPRING-COMPRESSION Price: $19.73
6 66-6480 WASHER Price: $1.29
6 819131016 WASHER Price: $2.99
7 3220-3 NUT-HJ Price: $0.28
7 596322601 Nuts This part replaces 873680600. Price: $2.99
8 121-4600 NUT-HEX This part replaces 3296-59. Price: $0.78
8 819151216 Washer 15/32 x 3/4 x 16 Gauge Price: $2.45
9 2411-36 BEARING-END, ROD Price: $32.13
9 532110810 TRUNION LT Price: $17.99
10 323-7 SCREW-HH Price: $0.65
10 532105848 BOLT, SHOULDER LT Price: $2.02
11 532125631 GRIP HANDLE Price: $6.99
11 84-0970 FORK-BRAKE, LH Price: $74.96
12 32120-19 E-RING Price: $2.27
12 532125925 PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99
13 3296-39 NUT-LOCK, NI Price: $2.29
13 532123096 LIFT LEVER This part replaces 532121002. Price: $71.83
14 532110739 WASHER T Price: $3.99
14 76-8270 PIN-BRAKE Price: $11.07
15 596322601 Nuts This part replaces 873980600. Price: $2.99
15 76-4180 BOOT-ROD, BRAKE Price: $25.33
16 283-2 PIN-CLEVIS Price: $12.99
16 532124670 RETAINER-SPRNG RB Price: $5.99
17 532121006 LEVER ROD LT Price: $24.99
17 76-6610 DISCONTINUED Price: Call Us
18 3272-6 PIN-COTTER Price: $0.25
18 532004921 COTTER PIN This part replaces 532124961. Price: $4.99
19 5-2512 BUSHING Price: $15.80
19 596040101 Washers This part replaces 819171516. Price: $2.99
20 532110029 LIFT LINK LT Price: $3.45
21 532131926 Shaft, Lift, Assembly Price: Call Us
22 532110448 LINK ADJ T Price: $7.99
23 532132793 LIFT TRUNION This part replaces 532110447. Price: $4.99
24 873610700 NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $5.99
25 812000037 Ring, Klip Price: $4.99
26 532121252 UPSTOP Price: $3.99
28 532121598 RH SUSP ARM ASM Price: $13.99
29 532009135 SPRING H This part replaces 532124960. Price: $3.99
30 532175689 TRUNNION This part replaces 532106308. Price: $3.99
31 596728201 Bolts This part replaces 872140608. Price: $3.99
32 596433401 Nuts This part replaces 873220800. Price: $2.99
33 532121599 LH SUSP ARM ASM Price: $21.14
34 812000022 E-RING Price: $3.99
37 819292016 Washer 29/32 x 1-1/4 x 18 Gauge Price: $6.99
38 532110807 NUT T Price: $3.99
39 873220600 NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99
40 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99
41 532125925 PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99
42 532123934 HEIGHT INDICATOR Price: $2.99
43 819112410 WASHER Price: $3.99
44 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99
45 596580801 Bolts This part replaces 874780516. Price: $2.99
46 532123935 PLUG,HOLE Price: $4.99
48 532123933 HEIGHT INDICATOR PNTR This part replaces 532124763. Price: $3.99
