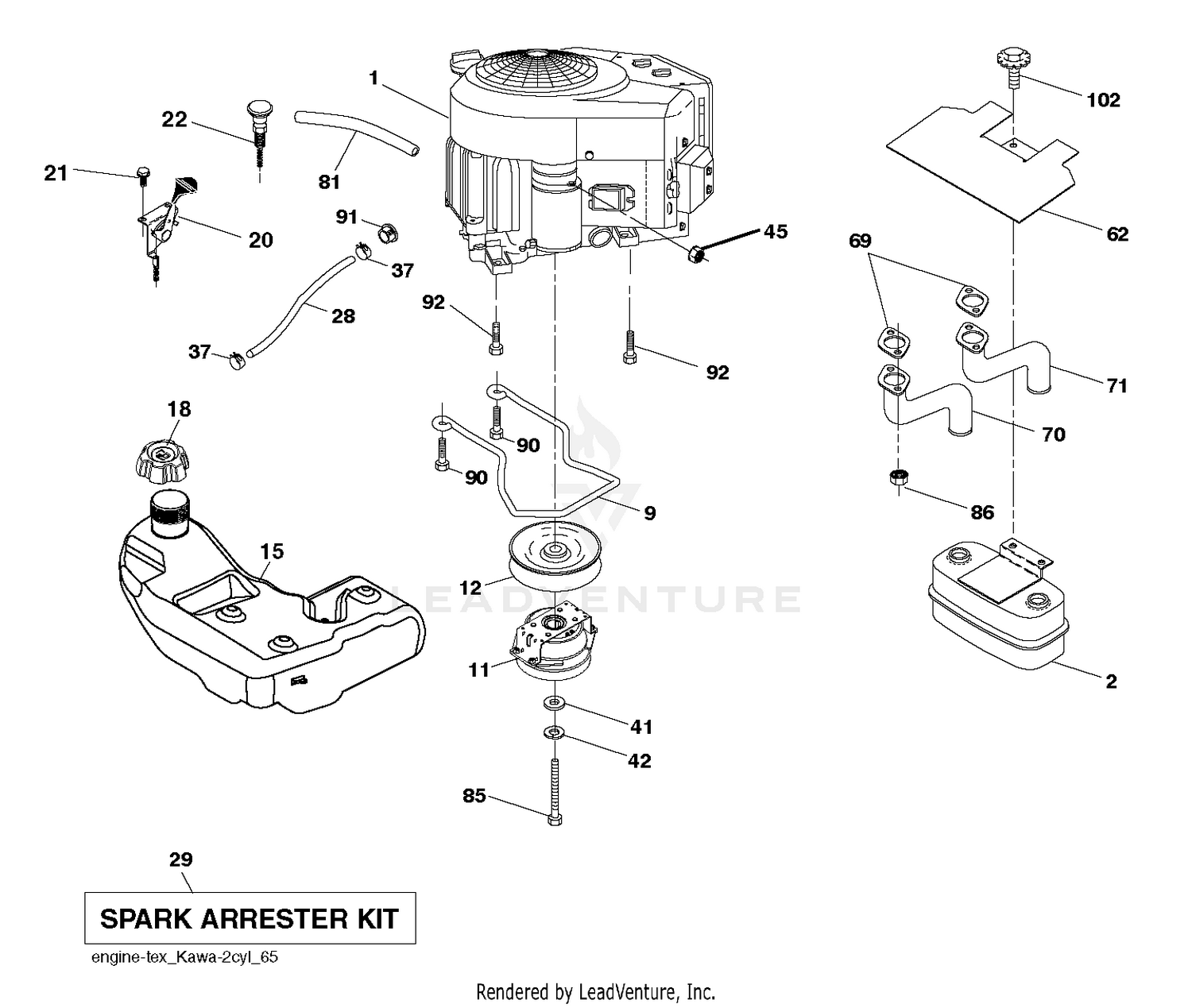

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
115-3443 |
CRANKCASE ASM Price: $1,731.92 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 28 |
587044860 |
HOSE.1/4".LOW.PERM.FUEL.LN.60" Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-9687 |
PLUG Price: $2.86 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 45 |
596133601 |
Hardware Price: $2.99 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 80 |
98-9379 |
PLUG-EXPANSION Price: $0.76 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
98-9376 |
PIN-STRAIGHT Price: $0.41 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
120-2559 |
PLUG Price: $1.19 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 210 |
99-3447 |
PLUG Price: $3.11 |
| 220 |
106-7056 |
GASKET Price: $1.48 |
