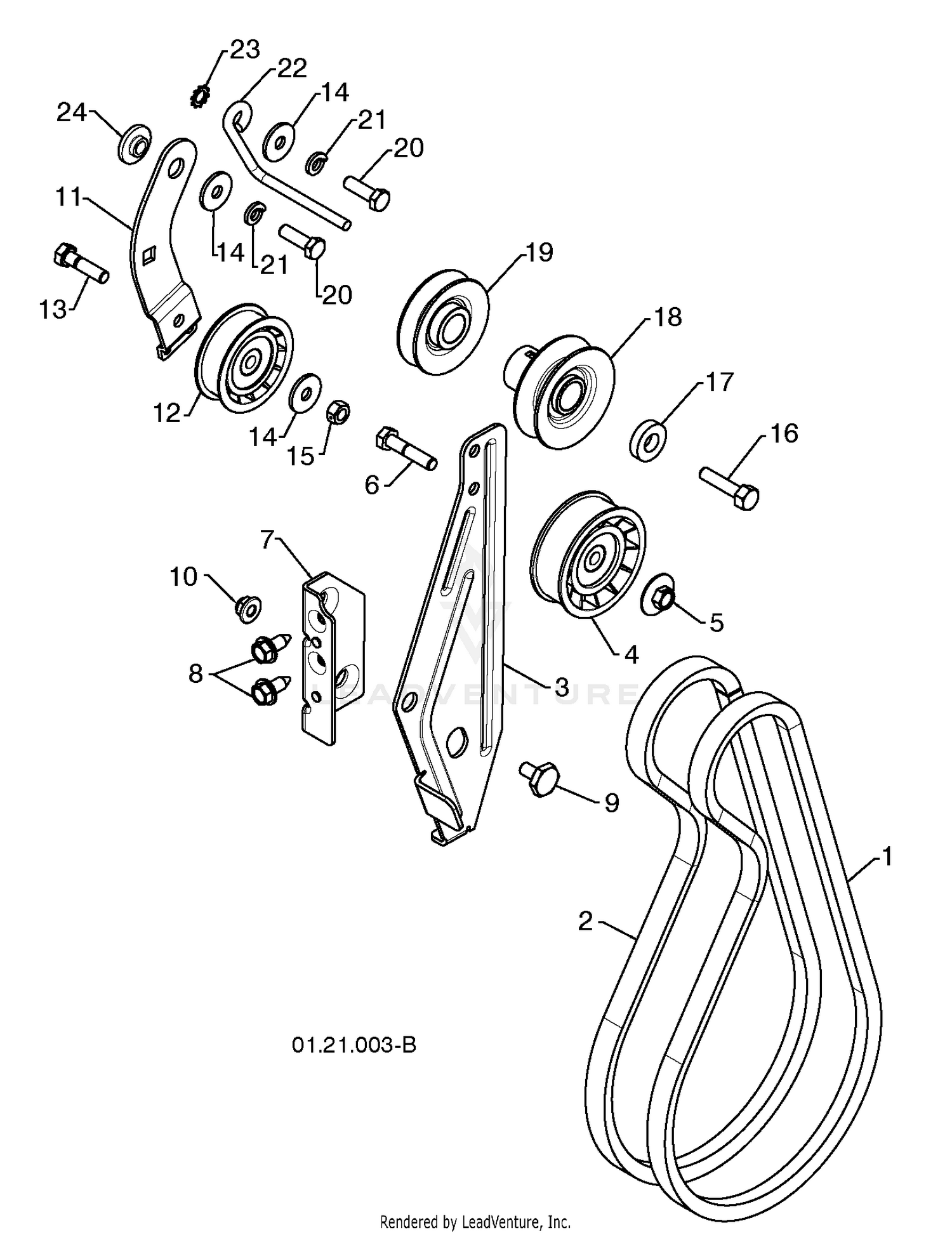

| Ref | Part Number | Description |
|---|
| 1 |
251-8 |
BEARING-BALL Price: $30.06 |
| 1 |
408007 |
IMPELLER BELT Price: Call Us |
| 2 |
419744 |
TRACTION BELT Price: Call Us |
| 2 |
92-0753 |
RING-SNAP Price: $3.60 |
| 3 |
423723X479 |
IDLER ARM BRACKET Price: Call Us |
| 3 |
92-0740 |
WASHER-THRUST Price: $22.39 |
| 4 |
180523 |
IDLER PULLEY Price: Call Us |
| 4 |
92-0781 |
BEARING-NEEDLE Price: $56.70 |
| 5 |
108-3694 |
GEAR-MAIN, 36T This part replaces 100-8597. Price: $580.27 |
| 5 |
426589 |
NUT 5/16-18 Price: Call Us |
| 6 |
74780524 |
SCREW 5/16-18 X 1 .50 Price: Call Us |
| 6 |
92-0667 |
RING-SYNCHRO Price: $105.99 |
| 7 |
423990X479 |
IDLER BRACKET Price: Call Us |
| 7 |
92-0668 |
SHIFTER-SYNCHRO Price: $505.63 |
| 8 |
251-346 |
BEARING-BALL Price: $9.37 |
| 8 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 9 |
100-8602 |
SHAFT-IDLER, REVERSE Price: $406.58 |
| 9 |
424297 |
SHOULDER BOLT 5/16-18 X .500 Price: Call Us |
| 10 |
751153 |
NUT 5/16-18 NYLOCK Price: Call Us |
| 10 |
92-0684 |
GEAR-REVERSE, 33 TOOTH Price: $224.56 |
| 11 |
187786 |
TRACTION IDLER ARM Price: Call Us |
| 11 |
92-0778 |
BEARING Price: $36.08 |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 12 |
92-0664 |
HUB-SYNCHRO Price: $399.67 |
| 13 |
74780520 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 13 |
92-0666 |
SPRING-SYNCHRO Price: $7.93 |
| 14 |
59289 |
WASHER Price: Call Us |
| 14 |
92-0763 |
RING-SNAP Price: $3.60 |
| 15 |
100-8598 |
GEAR-MAIN, 20 TOOTH Price: $368.51 |
| 15 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 16 |
100-8596 |
SHAFT-MAIN Price: $859.12 |
| 16 |
851084 |
SCREW 3/8-24 X 1.375 Price: Call Us |
| 17 |
400026 |
WASHER Price: Call Us |
| 17 |
92-0772 |
KEY Price: $6.36 |
| 18 |
426491 |
PULLEY ENG IMPELLER Price: Call Us |
| 19 |
108-3695 |
GEAR-MAIN, 22T This part replaces 92-0671. Price: $354.15 |
| 19 |
426490 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
74610516 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 20 |
92-0754 |
RING-SNAP Price: $3.19 |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 21 |
92-0673 |
GEAR-MAIN, 14 TOOTH Price: $173.64 |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 22 |
92-0650 |
BEARING Price: $82.22 |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
| 23 |
92-0665 |
KEY-SYNCHRO Price: $18.18 |
| 24 |
92-0676 |
GEAR-REDUCTION, 32 TOOTH Price: $354.36 |
| 26 |
100-8601 |
COLLAR Price: $33.06 |
| 27 |
92-0819 |
GEAR-REDUCTION, 40 TOOTH Price: $812.64 |
| 28 |
92-0674 |
SHAFT-REDUCTION Price: $842.09 |
| 29 |
92-0682 |
WASHER-THRUST Price: $17.98 |
| 30 |
92-0681 |
BEARING-NEEDLE Price: $42.01 |
| 31 |
100-8599 |
GEAR-RED, 25 TOOTH Price: $225.10 |
| 32 |
108-3697 |
GEAR-REDUCTION, 47T This part replaces 100-8600. Price: $417.10 |
| 33 |
92-0782 |
BEARING-NEEDLE Price: $70.92 |
