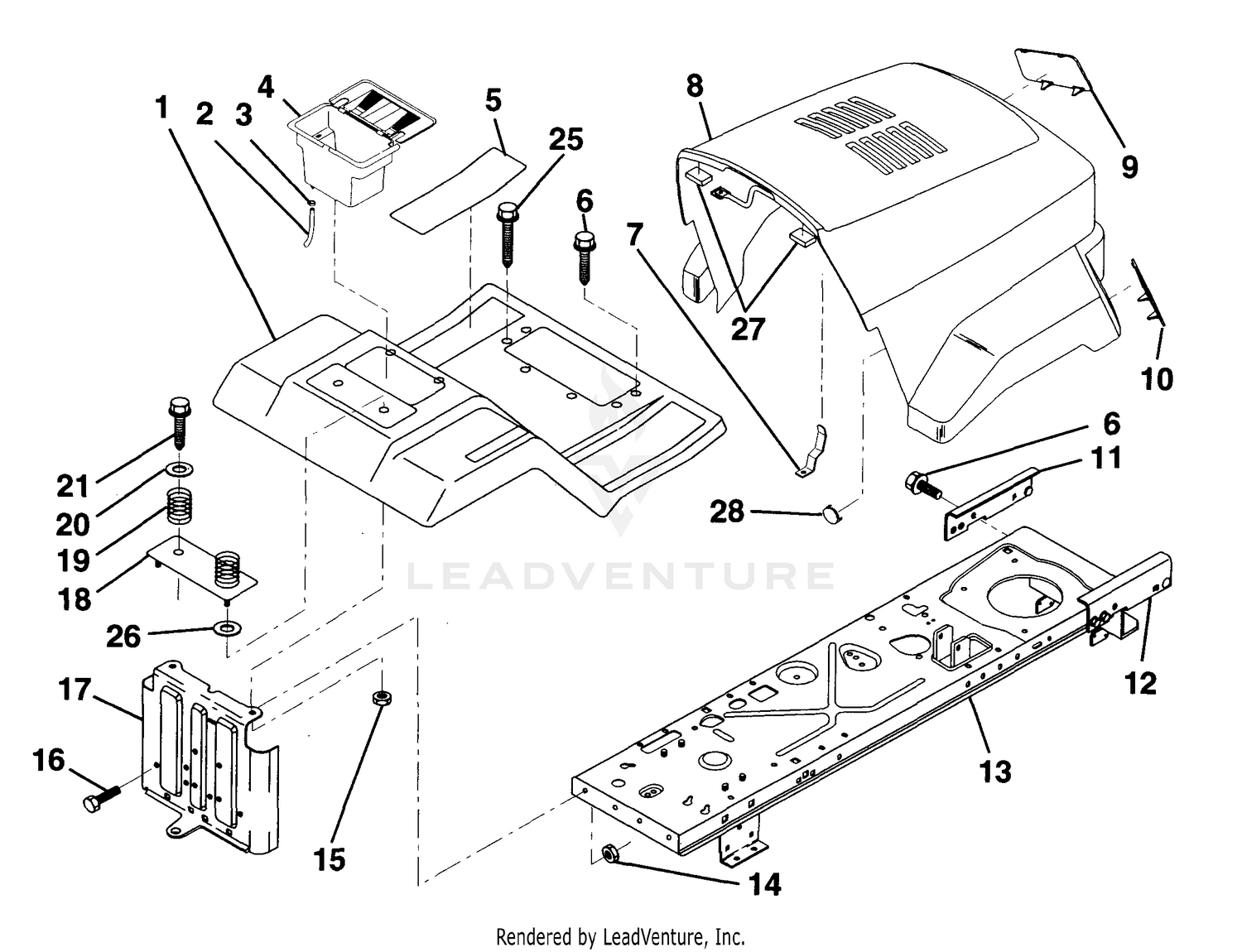

| Ref | Part Number | Description |
|---|
| 1 |
532131810 |
FENDER/FOOTREST Price: $106.71 |
| 2 |
532109238 |
TUBE BATTERY DRAIN Price: $5.46 |
| 3 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 4 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532129965. Price: $24.99 |
| 5 |
532124144 |
PAD FOOTREST Price: $2.96 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 7 |
532139969 |
HOOD LATCH This part replaces 532131318. Price: $3.45 |
| 9 |
532130986 |
LENS.LR.LH.HUSQV. Price: $12.99 |
| 10 |
532130985 |
LENS RH Price: $13.22 |
| 11 |
532128449 |
BRK PVT FRAME LH Price: $5.03 |
| 12 |
532128808 |
BRK PVT FRAME RH Price: $5.03 |
| 13 |
532139893 |
CHASSIS This part replaces 532137097. Price: $92.50 |
| 14 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 15 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 16 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 17 |
532127880 |
DRAW BAR Price: $25.05 |
| 18 |
532127115 |
PLATE Price: $5.78 |
| 19 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 20 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 21 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 25 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 817490516. Price: $2.99 |
| 26 |
596135301 |
Washers This part replaces 819091413. Price: $2.99 |
| 27 |
532126938 |
BUMPER HOOD T Price: $3.99 |
