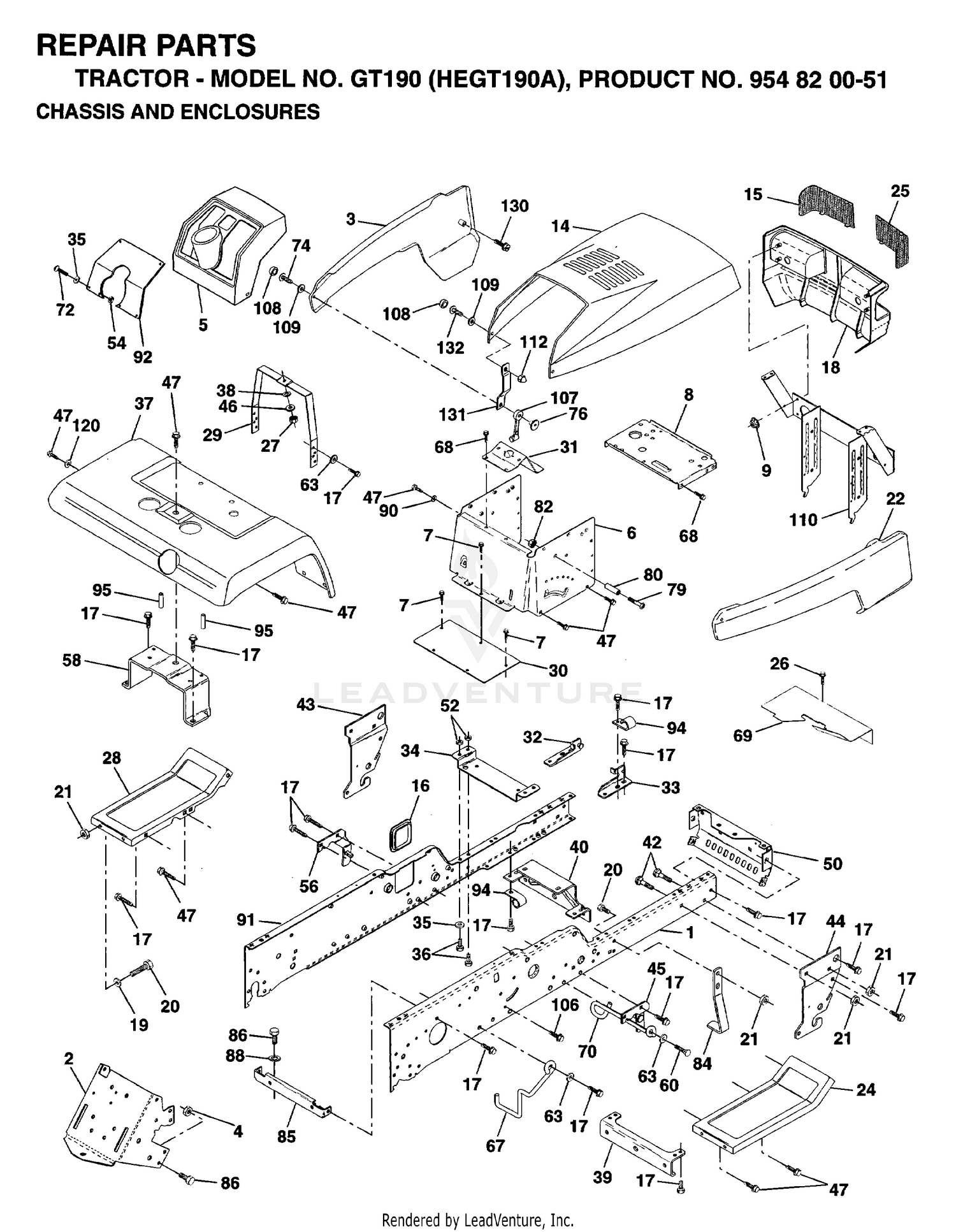

| Ref | Part Number | Description |
|---|
| 1 |
532180375 |
KIT.RAIL.CHASS.RH.GT This part replaces 532150253. Price: $59.99 |
| 2 |
532175282 |
DRAWBAR, GT This part replaces 532140506. Price: $59.99 |
| 3 |
532150189 |
PANEL/LH This part replaces 532150478. Price: $151.01 |
| 4 |
873680700 |
Nut, Crownlock Hex 7/16-14 unc Price: $2.99 |
| 5 |
532140452 |
DASH Price: $32.53 |
| 6 |
532150273 |
DASH ASS'Y LOWER Price: $40.99 |
| 7 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 8 |
532145166 |
SUPPORT, BATTERY Price: $4.69 |
| 9 |
532108067 |
PAL NUT LT Price: $3.10 |
| 15 |
532157069 |
LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99 |
| 16 |
532121794 |
COVER ACCESS Price: $3.99 |
| 17 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 18 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127320. Price: $119.99 |
| 19 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 20 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 21 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 22 |
532150190 |
RH PANEL This part replaces 532150479. Price: $159.55 |
| 24 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15 |
| 25 |
532157068 |
LENS LH This part replaces 532124250. Price: $13.99 |
| 26 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 27 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 28 |
532147203 |
FOOT REST LH Price: $9.15 |
| 29 |
532145205 |
DASH SUPT YP Price: $7.99 |
| 30 |
532148411 |
SADDLE Price: $5.99 |
| 31 |
532145183 |
BRACE, SUPPORT STEERING Price: $4.35 |
| 32 |
532141315 |
FRAME PIVOT BRKT ASSY LH Price: $7.99 |
| 33 |
532141314 |
FRAME PIVOT BRKT ASSY RH Price: $7.99 |
| 34 |
532142131 |
ENGINE SUPPORT BRKT Price: $3.99 |
| 35 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 36 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 37 |
532121642 |
FENDER This part replaces 532124927. Price: $131.32 |
| 38 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 39 |
532136961 |
FRONT AXLE BRACKET Price: $8.84 |
| 40 |
532156111 |
BRACKET, SUPPORT AXLE/ENGINE This part replaces 532142132. Price: $9.99 |
| 42 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 43 |
532136939 |
FRONT SUSPENSION BRKT LH Price: $12.99 |
| 44 |
532136940 |
FRONT SUSPENSION BRKT RH Price: $12.99 |
| 45 |
532155887 |
KIT.SERV.R.H.CHASSIS BRKT/HDW This part replaces 532138460. Price: $17.99 |
| 46 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 47 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 50 |
532136575 |
CHASSIS BRKT Price: $7.82 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 54 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 56 |
532155886 |
KIT.SERV.LH.CHASSIS BRKT/HDW This part replaces 532138461. Price: $7.99 |
| 58 |
532183569 |
BRACKET ASM., FENDER This part replaces 532137113. Price: $9.99 |
| 60 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 63 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 67 |
532140737 |
BELT GUIDE Price: $3.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 69 |
532140023 |
NEEDS DESCRIPTION Price: Call Us |
| 70 |
532177679 |
KEEPER, BELT VGT GROUND This part replaces 532137159. Price: $4.99 |
| 72 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 74 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 76 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 79 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $4.99 |
| 80 |
532007206 |
SPACER LT Price: $5.99 |
| 82 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 84 |
532142992 |
MOWER STOP Price: $4.99 |
| 85 |
532193923 |
BRKT.SUPPT This part replaces 532144911. Price: $6.99 |
| 86 |
596238601 |
Bolts This part replaces 874760716. Price: $2.99 |
| 88 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 90 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 91 |
532151630 |
RAIL KIT This part replaces 532144735. Price: $82.46 |
| 92 |
532150761 |
NEEDS DESCRIPTION Price: Call Us |
| 94 |
532100207 |
CLIP GTV Price: $3.99 |
| 95 |
532105531 |
NUT-PUSH YT Price: $2.99 |
| 106 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 107 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 108 |
532110356 |
SNAP CAP LT Price: $3.99 |
| 109 |
532110357 |
WASHER LT Price: $2.99 |
| 110 |
532150200 |
PIVOT ASM GRL/HD Price: $31.99 |
| 112 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 120 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 130 |
817521312 |
Screw, SLTD Hex Hd. W/Pl Washer Price: $1.05 |
| 131 |
532150195 |
BRACKET.SUPPORT.HOOD/PANEL.NLA Price: $2.99 |
