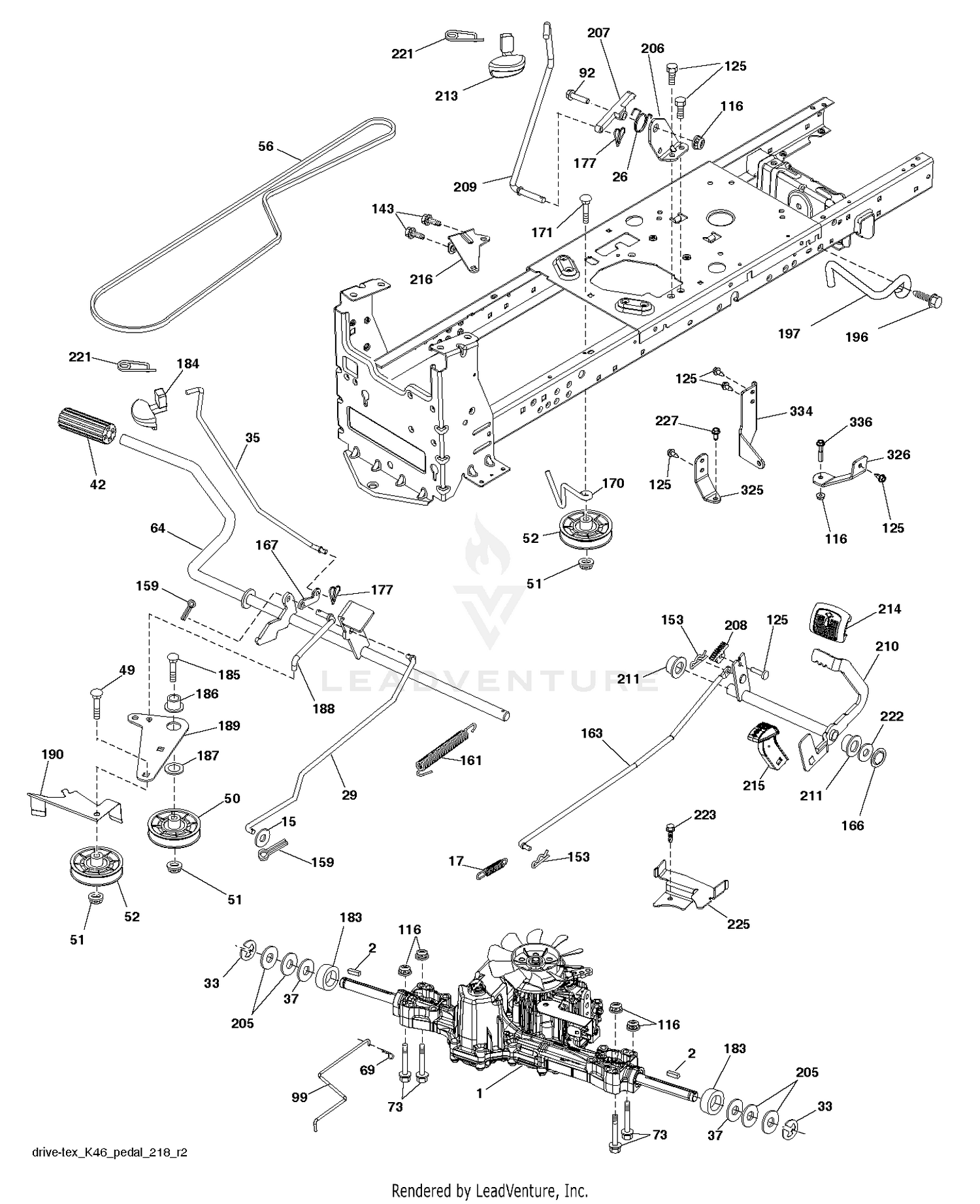

| Ref | Part Number | Description |
|---|
| 1 |
120-4155 |
PANEL ASM Price: $321.47 |
| 2 |
108-7604 |
COVER-LH Price: $55.56 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
108-7605 |
COVER-RH Price: $55.56 |
| 4 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 5 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 6 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 7 |
115-8849-03 |
PLATE-COVER Price: $23.24 |
| 8 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 10 |
94-2413 |
NUT-U Price: $1.79 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
125-4646-03 |
PANEL-CONTROL Price: $92.78 |
| 14 |
108-7602 |
REST-ARM Price: $158.43 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 16 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
121-5159 |
IGNITION SWITCH ASM Price: $84.21 |
| 21 |
120-6310 |
LCD DISPLAY ASM Price: $584.72 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 28 |
114-3329 |
SWITCH-ROCKER Price: $206.34 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 29 |
95-8999 |
SWITCH Price: $42.14 |
| 30 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 31 |
161-8355 |
CUP HOLDER ASM This part replaces 117-2378. Price: $12.36 |
| 32 |
107069 |
CLIP Price: $1.79 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
99-7411 |
POINT-POWER Price: $30.69 |
| 34 |
99-7416 |
CAP Price: $6.64 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 35 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 36 |
110-0542 |
SPACER-FLANGE Price: $4.94 |
| 37 |
100-1535 |
SWITCH Price: $84.91 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 73 |
596136501 |
Bolts Price: $3.99 |
| 92 |
595305701 |
Screws Price: $3.99 |
| 99 |
582404501 |
ARM.PIVOTING.TCRD.GEN2.5.BAGGE Price: $5.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts Price: $2.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch Price: $5.99 |
| 208 |
596564101 |
Gears Price: $4.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ Price: $6.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 223 |
598662601 |
BOLTS Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 326 |
585670803 |
BRACKET TORQUE STRAP This part replaces 585670802. Price: $4.99 |
| 334 |
585882202 |
SWAY.ROD.BRACKET.K46.X431 Price: $11.99 |
| 336 |
587259602 |
Bolts Price: $3.99 |
