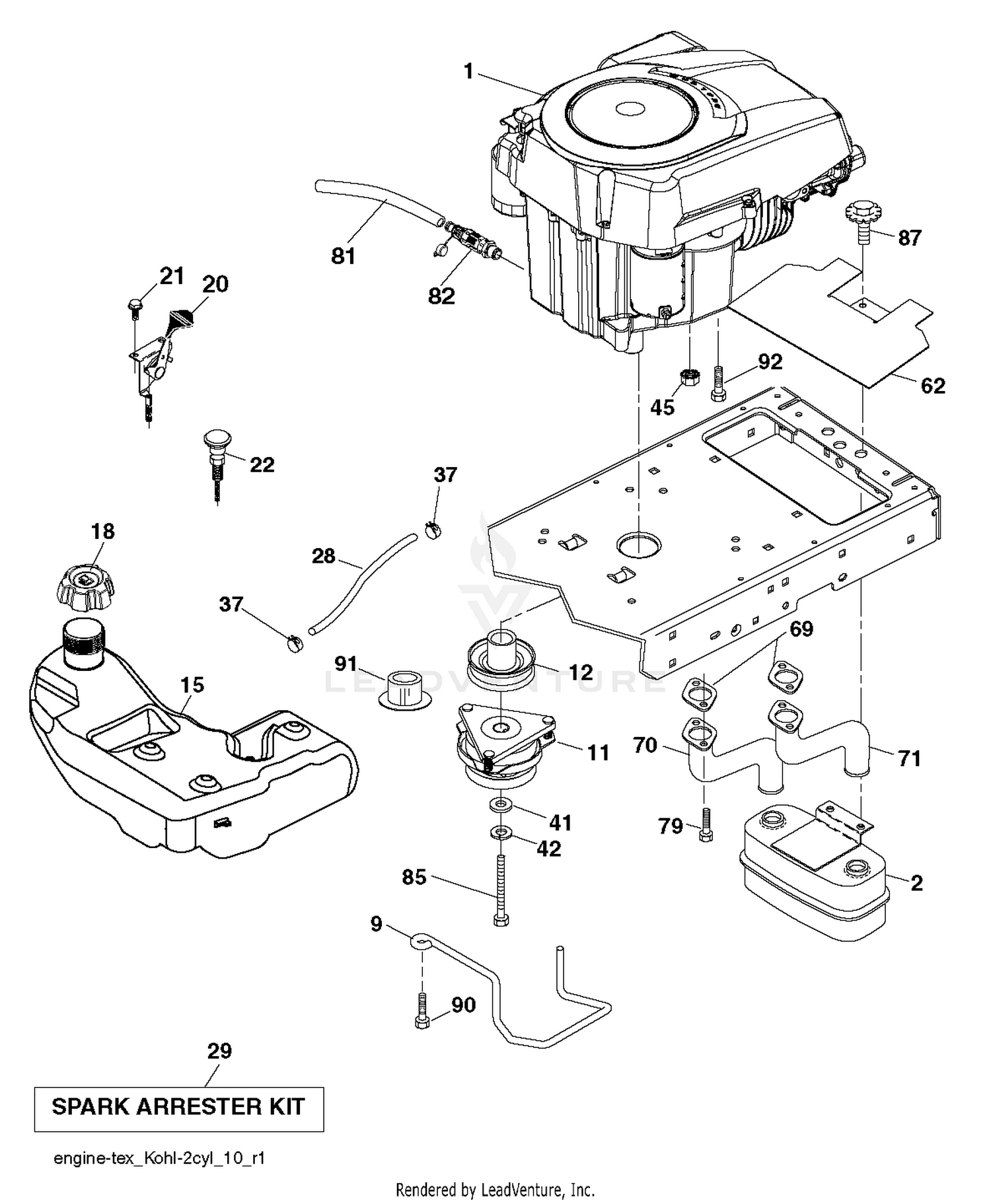

| Ref | Part Number | Description |
|---|
| 1 |
99-8346 |
GASKET Price: $1.43 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 3 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 4 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 5 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 6 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 7 |
98-7568 |
BOLT This part replaces 98-9587. Price: $0.84 |
| 8 |
98-9591 |
PIN-BAND Price: $6.96 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 10 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 11 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
98-9723 |
HOLDER ASM Price: $154.38 |
| 13 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 14 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 15 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 16 |
98-9727 |
COLLAR Price: $9.86 |
| 17 |
104-5157 |
OIL COOLER SERVICE KIT This part replaces 98-9728. Price: $1,236.62 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
98-9729 |
O-RING Price: $6.27 |
| 19 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 20 |
108-3841 |
FILTER-OIL This part replaces 99-8384. Price: $10.81 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
