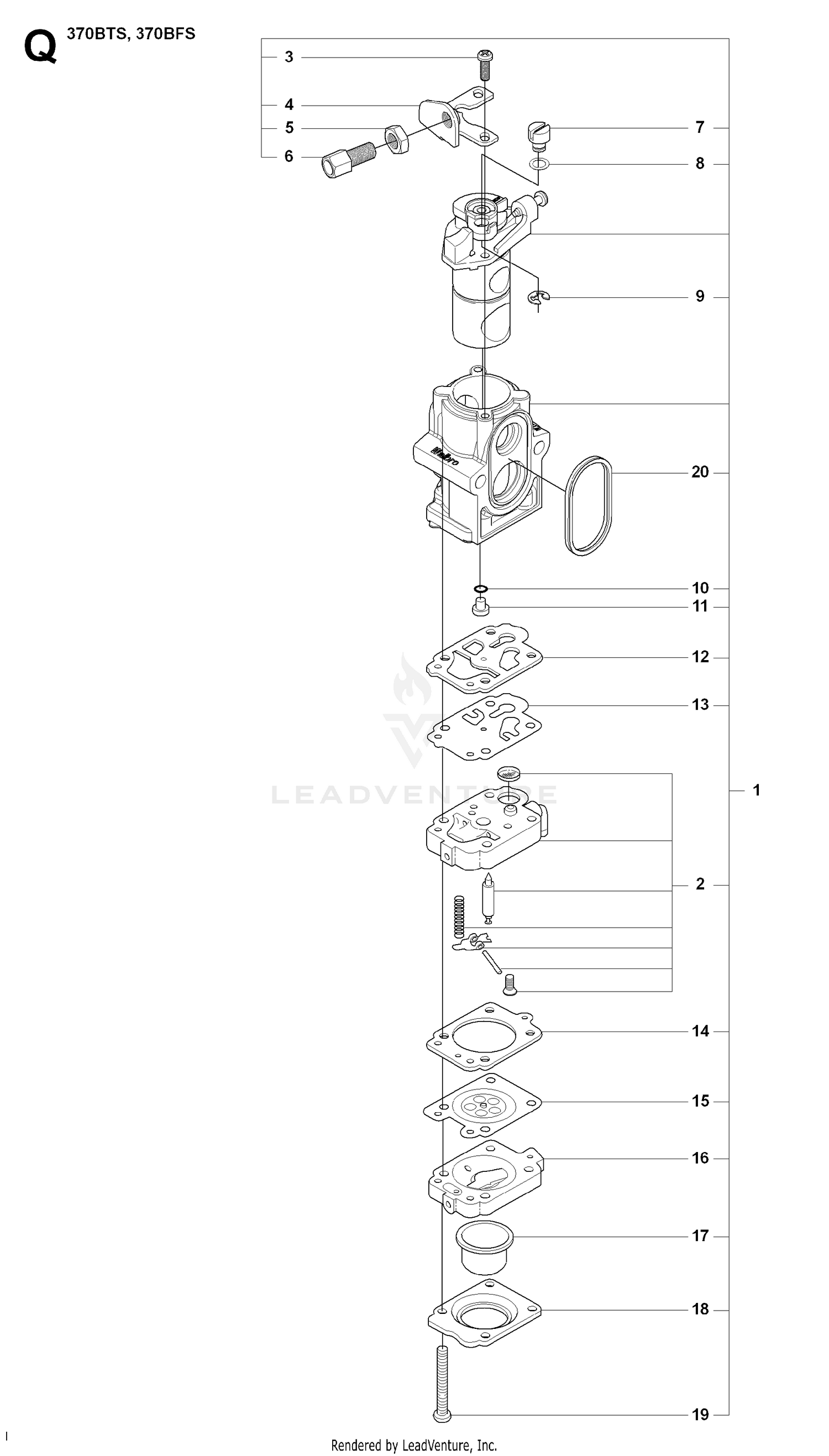

CARBURETOR DETAILS
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 581156101 | CARB This part replaces 544363001. Price: $69.99 |
| 2 | 544363501 | BODY-A-PUMP Price: $64.99 |
| 3 | 505307901 | SCREW Price: $2.99 |
| 4 | 506746001 | BRACKET Price: $8.99 |
| 5 | 510487401 | NUT This part replaces 506612601. Price: $2.99 |
| 6 | 521756001 | SCREW (RPLS 191881170) This part replaces 506741301. Price: $3.99 |
| 7 | 506741201 | SWIVEL Price: $4.99 |
| 8 | 506746101 | WASHER Price: $2.99 |
| 9 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 10 | 505307501 | O-RING Price: $3.99 |
| 11 | 544365301 | JET #58 Price: $6.99 |
| 13 | 506689801 | DIAPHRAGM Price: $3.99 |
| 14 | 506740801 | GASKET Price: $7.99 |
| 15 | 505306801 | DIAPHRAGM Price: $12.99 |
| 16 | 506740901 | BODY Price: $19.99 |
| 17 | 505306701 | PUMP Price: $7.99 |
| 19 | 506741101 | SCREW Price: $2.99 |
| 20 | 521631501 | RING Price: $6.99 |
