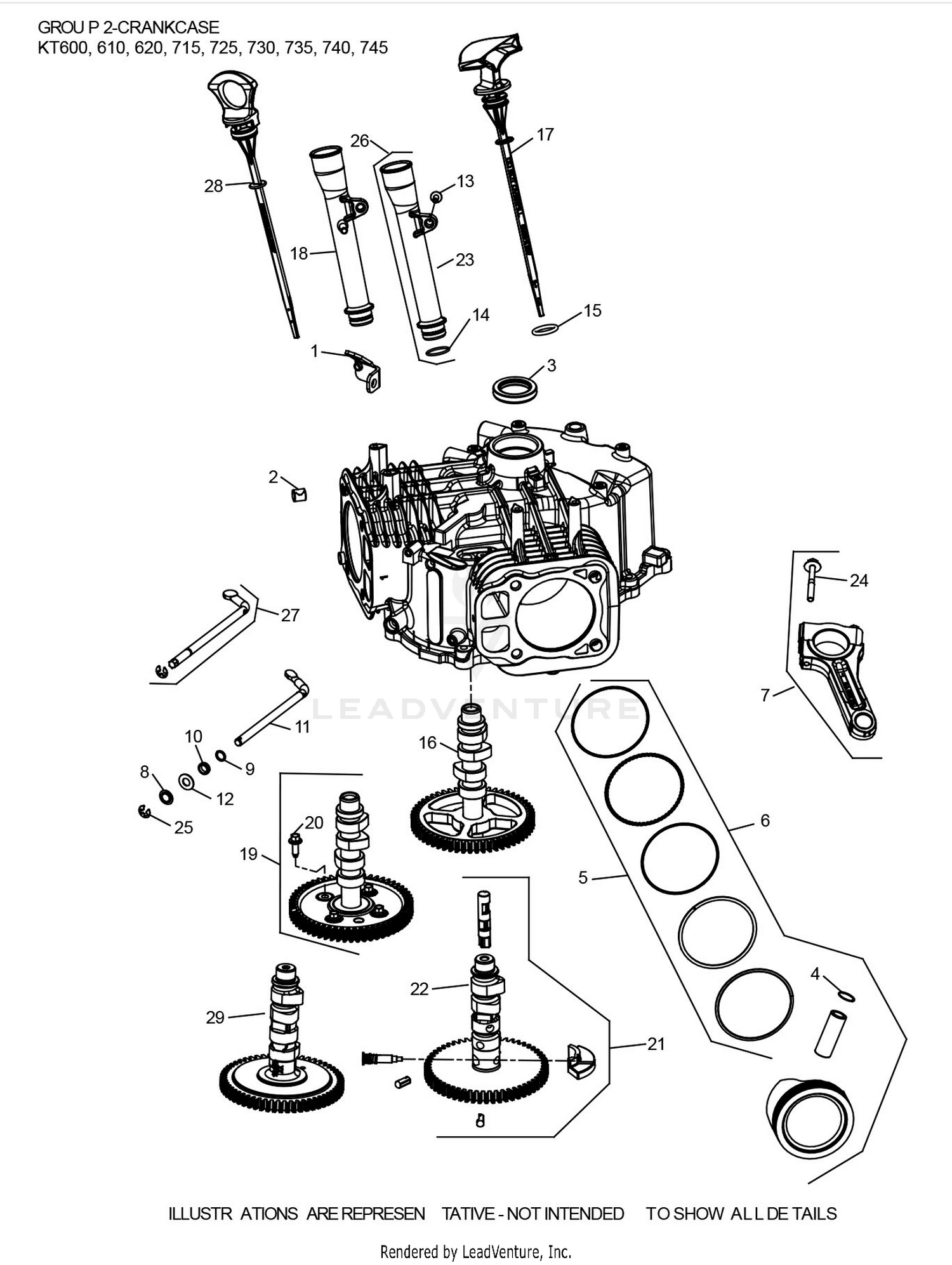

KT735-3102 CrankCase
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KH-24-126-243-S | BRACKET-OIL FILL TUBE Price: $9.30 |
| 2 | KH-24-380-16-S | PIN-SPLIT DOWEL Price: $4.02 |
| 3 | KH-24-032-19-S | OIL SEAL Price: $6.93 |
| 4 | KH-24-018-01-S | RETAINER-PISTON Price: $2.29 |
| 6 | KH-25-874-13-S | KIT-PISTON STD Price: $262.86 |
| 7 | KH-25-067-04-S | CONNECTING ROD ASSEMBLY Price: $57.73 |
| 9 | KH-24-468-15-S | WASHER-1/4 FLAT Price: $2.29 |
| 10 | KH-28-032-09-S | SEAL Price: $3.19 |
| 12 | KH-M-931010-S | WASHER-9MM FLAT Price: $2.11 |
| 14 | KH-12-153-07-S | O-RING Price: $2.22 |
| 15 | KH-25-153-09-S | O-RING DIPSTICK Price: $3.24 |
| 16 | KH-32-010-07-S | CAMSHAFT ASSEMBLY Price: $83.02 |
| 17 | KH-32-038-14-S | DIPSTICK Price: $8.89 |
| 18 | KH-32-123-14-S | DIPSTICK TUBE Price: $6.67 |
| 25 | KH-32-154-03-S | GOVERNOR SHAFT RETAINER CLIP Price: $2.07 |
