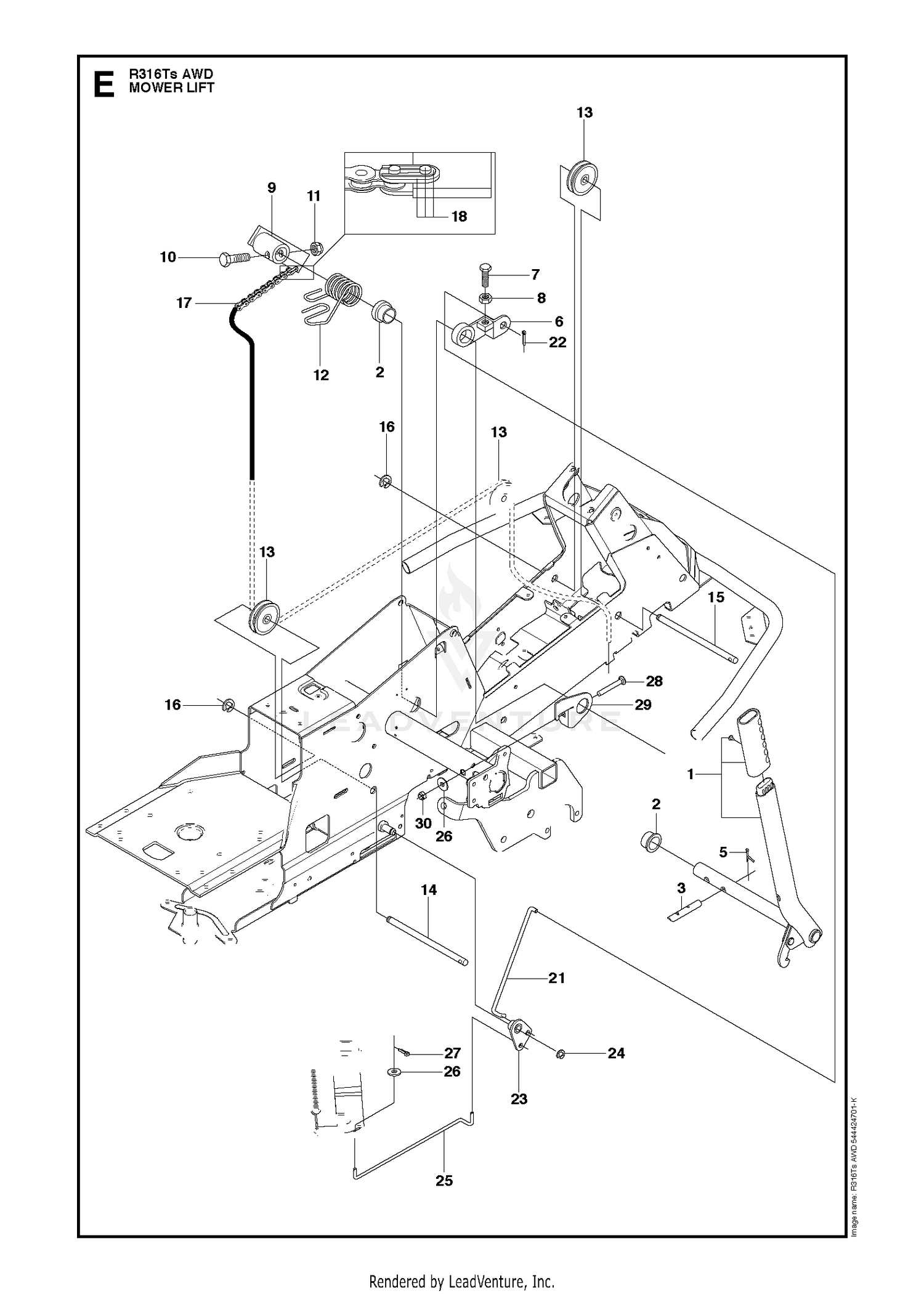

MOWER LIFT / DECK LIFT
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-9793 | BREATHER Price: $53.38 |
| 1 | 577966701 | LIFTING LEVER ASSY Price: $59.99 |
| 2 | 133-2334 | DIPSTICK ASM Price: $60.62 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 136-8526 | HYDRAULIC TANK ASM Price: $1,318.86 |
| 3 | 525406601 | PIN Price: $7.99 |
| 4 | 105-8285 | HOSE-INLET, PUMP Price: $105.98 |
| 5 | 112-0211 | STRAINER FITTING ASM Price: $128.41 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 6 | 83-0870 | FITTING-HOSE, BARBED Price: $62.08 |
| 7 | 323-6 | SCREW-HH Price: $0.66 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 63-8410 | WASHER Price: $1.76 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 240-11 | BUSHING-FLANGE Price: $5.32 |
| 9 | 544433601 | LIFTING ARM Price: $22.99 |
| 10 | 105-5410 | HOSE-HYD Price: $25.01 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 117-9881 | FITTING-HYD, TEE Price: $72.38 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 136-8534 | PLUG Price: $4.72 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 353-551 | PLUG-HH Price: $18.48 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 322-14 | SCREW-HH Price: $1.01 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 121-2564 | BRACKET Price: $23.69 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 506554701 | LINK Price: $4.99 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 28 | 535423803 | SCREW Price: $3.99 |
| 29 | 577999501 | SHEET Price: $8.99 |
| 30 | 732211801 | LOCKNUT M8 Price: $3.99 |
