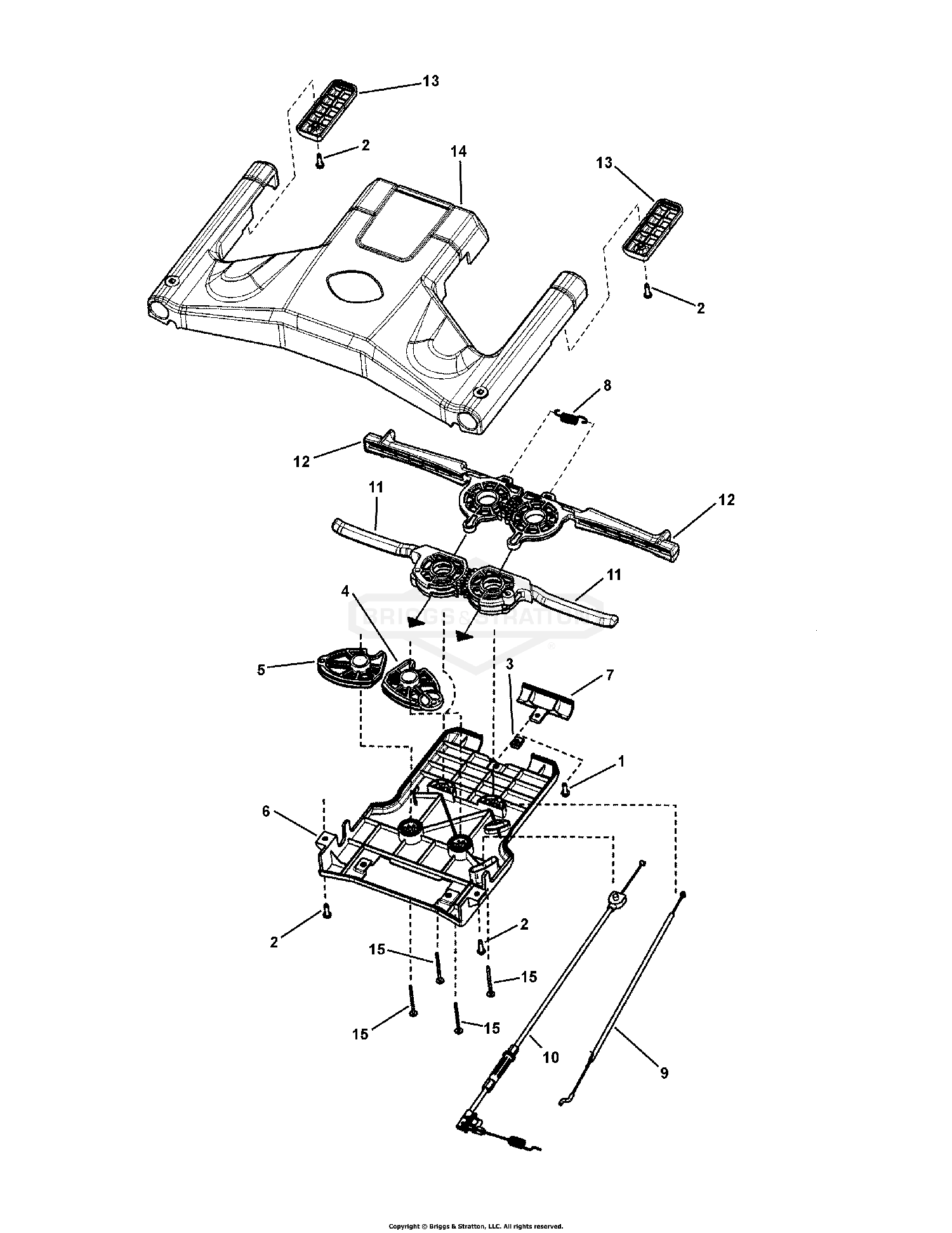

React Handle Assembly, FWD

React Handle Assembly, FWD

Parts (14)

RefPart NumberDescription
1 7091075SM SCREW, Hex Washer Flange Self-Tap, #10-24 x 5/8 This part replaces 7091075. Price: $3.72
2 7091195SM SCREW, Taptite Pan Head Combo, #10-16 x 3/4 This part replaces 7091195. Price: $3.84
3 1960593SM NUT, #10-24, Speed Retainer w/Extrusion This part replaces 1960593. Price: $4.27
4 7102805YP CAM, Drive LH This part replaces 7102805. Price: $5.49
5 7102806YP CAM, Drive RH This part replaces 7102806. Price: $4.79
6 7103325YP PANEL, Bottom Control This part replaces 7103325. Price: $11.49
7 7103456YP PANEL, Access, Maintenance Reminder This part replaces 7103456. Price: $5.79
8 7104689YP SPRING, Tension, Drive Control This part replaces 7104689. Price: $4.59
9 7104752YP CABLE, OPC This part replaces 7104752. Price: $14.70
10 7105086YP CABLE, DRIVE CONTROL This part replaces 7105086. Price: $67.40
11 7105187YP LEVER, OPC Control This part replaces 7105187. Price: $10.99
12 7105188YP LEVER, Drive Control This part replaces 7105188. Price: $13.15
13 7105262YP PANEL, Bottom Control - LH/RH This part replaces 7105262. Price: $4.70
14 7105349 PANEL, Top Control, WBM Price: Call Us
