Home / OPE / Riding Products / 02750, T4240 4-Wheel Drive 5-Plex Traction Unit, 2016 (SN 316000001-316999999) / Engine Mounted Components

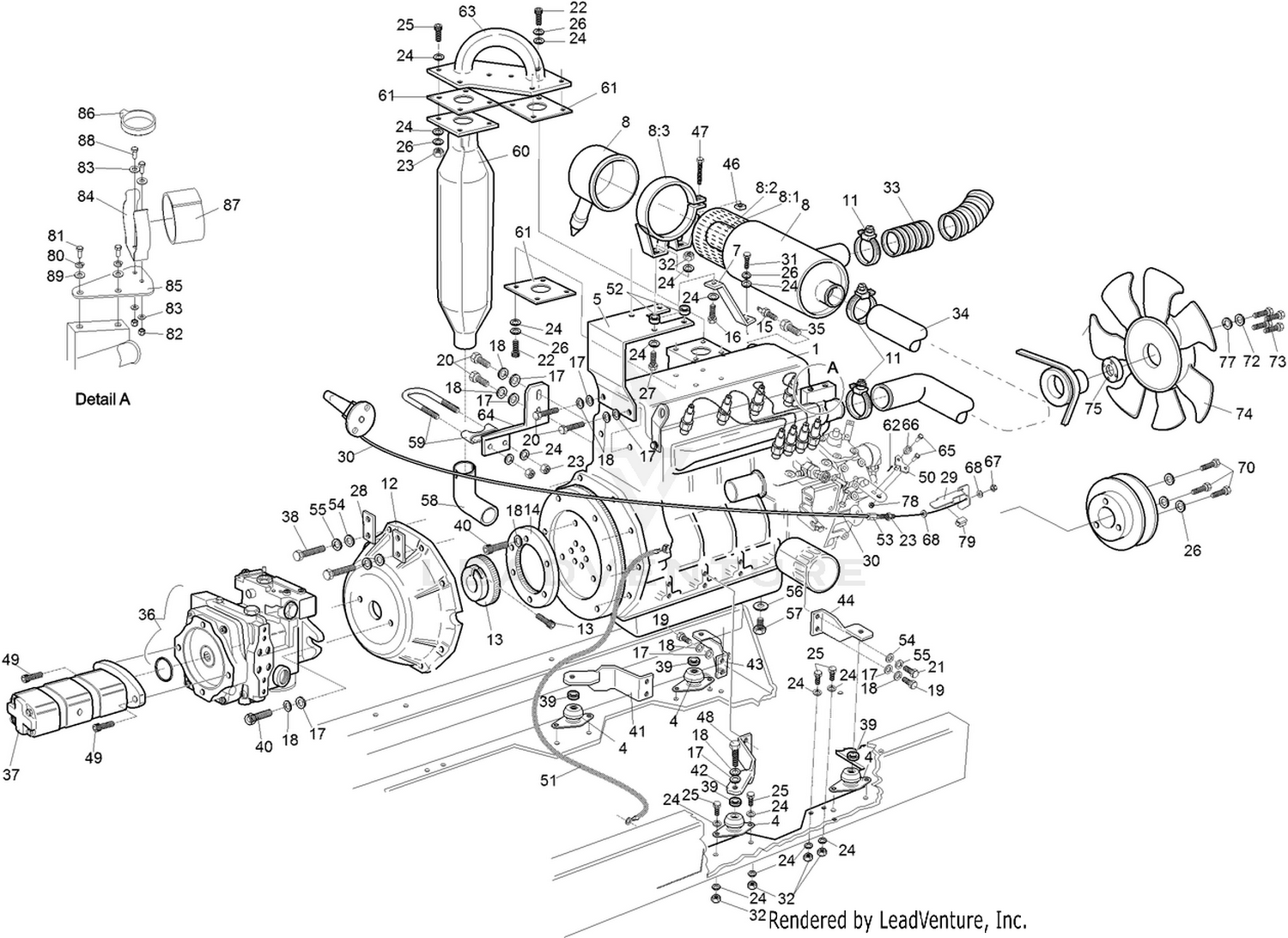

Engine Mounted Components

Engine Mounted Components

Parts (80)

RefPart NumberDescription
1 111-2161 ENGINE - KUBOTA V2203-M-E2B-HAYTER-1 Price: $5,137.35
4 70-07-034 FLEXIBLE MTG (70-07-001) Price: $108.55
5 111-4990-03 MOUNT-AIR CLEANER Price: $58.24
7 111-5017 STRAP-CLEANER, AIR Price: $39.49
8 950429W STRIP AIR CLEANER BRACE Price: $31.83
11 65-07-042 HOSE CLIP(58-75MM DIA) Price: $2.81
12 994880 KIT BELL HOUSING KUBOTA SUPER3 Price: $364.16
13 994882 DRIVE HUB V2203/V2003M-T Price: $104.37
14 994883 DRIVE FLANGE V2203/V2003M-T Price: $111.15
15 99-3582 THERMOSWITCH This part replaces 950853. Price: $110.05
16 03162 STEEL BOLT Price: $1.39
17 HY09485 WASHER M12 PLAIN Price: $1.40
18 09599 WASHER Price: $1.42
19 70-11-017 HEX HED SETSCREW M12*30 FINE Price: $5.90
20 70-11-016 HED HED.SET SCREW M12*20 FINE Price: $4.88
21 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
22 09369 SETSCREW M8 X 30 Price: $1.40
23 09437 NUT M6 PLAIN Price: $1.40
24 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
25 09369 SETSCREW M8 X 30 Price: $1.40
26 03469 WASHER M8 SC SPRING Price: $1.40
27 09548 BOLT COACH M8X35CUPSQ ATLAS(P) Price: $1.40
28 74-01-327 BRACKET LOOM TIE Price: $10.83
29 994382W BRACKET THROTTLE CONTROL Price: $37.99
30 910815 THROTTLE CONTROL Price: $72.39
31 03162 STEEL BOLT Price: $1.39
32 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
33 70-07-052 VACUUM HOSE Price: $49.23
34 134-1742 HOSE, AIR INTAKE This part replaces 111-5018. Price: $88.16
35 950425 ADAPTER TEMPERATURE SENDER Price: $61.08
36 953684 PUMP TRANSMISSION Price: $5,592.25
37 953750 PUMP TRIPLE GEAR Price: $1,650.41
38 09397 BOLT M10 X 60 Price: $1.40
39 953028 Spacer - Engine T424 Price: $14.92
40 09694 SCREW SOC HD CAP M12*40 Price: $1.61
41 953121W BRACKET ENGINE MOUNT FRONT RH Price: $62.79
42 953120W BRACKET ENGINE MOUNT FRONT LH Price: $62.79
43 953123W BRACKET ENGINE MOUNT REAR RH Price: $60.07
44 953122W BRACKET ENGINE MOUNT REAR LH Price: $60.07
46 09437 NUT M6 PLAIN This part replaces 09436. Price: $1.40
47 09645 M6 X 35 HEX.HD.SETSCREW Price: $1.40
48 63-11-009 HEX HD.BOLT M12*50HT/10.9 Price: $5.02
49 ZCS1J030U SOC.HD.CAP Price: $1.31
50 994381 PLATE THROTTLE CONTROL Price: $12.19
51 70-09-023 EARTH CABLE Price: $10.21
52 480072 SPACER Price: $5.61
53 953832 ADJUSTER THROTTLE CABLE Price: $2.50
54 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
55 09480 WASHER M10 SC SPRING Price: $1.36
56 15451-96670 Washer - Oil Drain Plug Price: Call Us
57 15707-33750 Plug - Oil Drain Price: Call Us
58 950415 EXHAUST TAIL PIPE Price: $38.23
59 74-07-018 CLAMP EXHAUST 45MM S.8878 Price: $3.82
60 19077-12110 MUFFLER Price: $293.49
61 15471-12230 EXHAUST GASKET - MUFFLER Price: $4.94
62 70-07-107 SPLIT PIN 0 2,5*16 Price: $1.35
63 950410S EXHAUST MANIFOLD W/A Price: $182.21
64 950408W PLATE EXHAUST BRACE Price: $34.44
65 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
66 940243 BOSS - THROTTLE CLAMP Price: $48.47
67 09437 NUT M6 PLAIN Price: $1.40
68 09472 WASHER-PLAIN Price: $1.25
70 09565 BOLT M8 X 55 HEX HD ZN & PASS Price: $1.40
72 09472 WASHER-PLAIN Price: $1.25
73 ZDH1F050U SETSCREW Price: Call Us
74 994821 IMPELLER DIA 380 Price: $257.85
75 994509 FAN SPACER R324 Price: $62.77
77 09474 WASHER M6 SC SPRING Price: $1.34
78 09438 NUT M6 X 1.5 PLAIN Price: $1.39
79 219097 CLIP CABLE Price: $1.40
80 03469 WASHER M8 SC SPRING Price: $1.40
81 09368 SCREW Price: $1.40
82 09430 NUT M5 NYL INS T TYPE Price: $1.25
83 09470 WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
84 995860 SPRING CLIP 76MM Price: $6.34
85 111-3492-03 BRKT - AIR INLET HOSE Price: $16.11
86 74-07-020 CABLE TIE 368X4,8 Price: $1.35
87 HY910808 STRIP - NEOPRENE Price: $15.11
88 ZDH1E016U HEX HD SET SCREW M5*16 Price: $1.38
89 ZWP1H000U WASHER (M8) Price: $1.40
