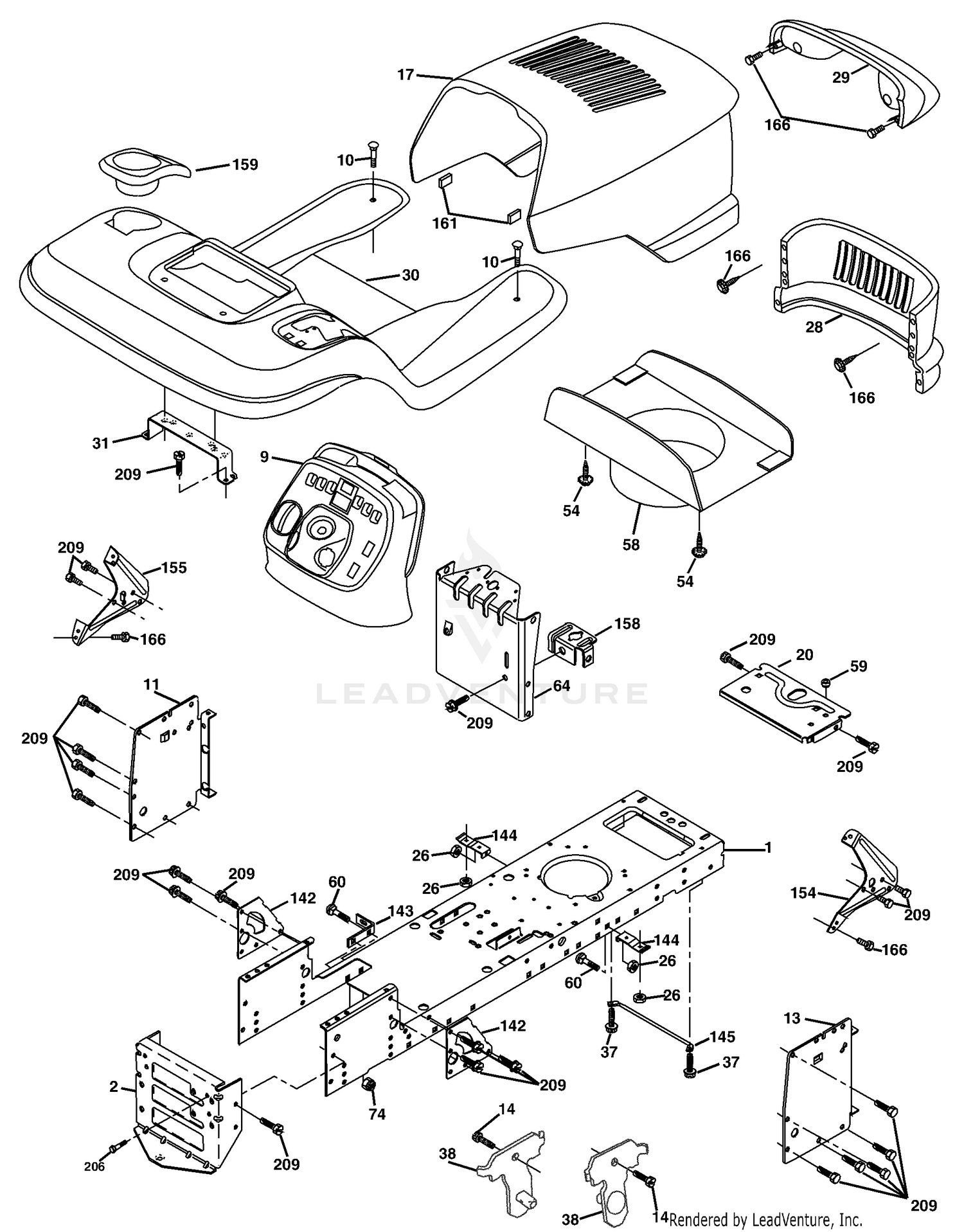

Chassis And Enclosures

Chassis And Enclosures

Parts (37)

RefPart NumberDescription
1 532174619 Chassis Wldmt. Price: $83.99
2 532176554 Drawbar 12 Ga Price: $23.99
3 108-6744-03 STRAP-SUPPORT, FAN Price: $18.02
4 108-6745-03 DISCONTINUED Price: Call Us
5 120-9738 SCREW-HH This part replaces 322-11. Price: $0.84
6 3256-23 WASHER-PLAIN Price: $0.28
9 532185337 Dash Price: Call Us
10 872110608 Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99
11 532167203 Panel Asm. Dash Lh Price: $17.99
13 532178298 Panel Dash Rh Price: $17.99
14 817490608 Screw Thdrol 3/8-16 x 1/2 Price: $3.99
17 532181351 Hood Pnt Price: $102.99
20 532162026 Plate Mtg Battery Price: $5.99
26 873680600 Nut This part replaces 873800600. Price: $1.99
28 532181352 Grill w/Clips Price: Call Us
29 532179761 Lens Grille Price: Call Us
30 532181353 Fender /Ftrest Pnt STL Price: $111.99
31 532139976 Bracket Fender Price: $7.99
37 817490508 Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99
38 532175710 Bracket Asm. Pvt. Mwr. Rear Price: $5.99
54 532161464 Screw Hex Wshd 8-18 x 7/8 Price: $3.99
58 532175351 Duct Air Price: $28.99
59 532187495 Bushing Snap Split Price: $2.99
60 872140606 Bolt Rdhd Sqnk 3/8-16 Unc x 3/4 Price: $3.99
64 532174997 Dash Lower Price: $22.99
74 873680600 Nut, Crownlock 3/8-16 Unc Price: $1.99
142 532175702 Plate Reinforcement STLT Price: $4.99
143 532186689 Bracket Sway Bar Price: $2.99
144 532175582 Bracket Footrest STLT Price: $4.99
145 532409167 Rod Pivot Hood This part replaces 532156524. Price: $8.99
154 532161897 Bracket Dash STL RH Price: $4.99
155 532161900 Bracket Dash STL LH Price: $4.99
158 532162037 Bracket Parking Brake Price: $3.39
159 532155123 CUPHOLDER, BLK This part replaces 532181355. Price: $22.99
161 532164655 Extrusion Bumper Price: $4.99
166 532189747 SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $8.99
206 532170165 Bolt Shoulder 5/16-18 Price: $2.99
