| Ref | Part Number | Description |
|---|
| 1 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 1 |
487038 |

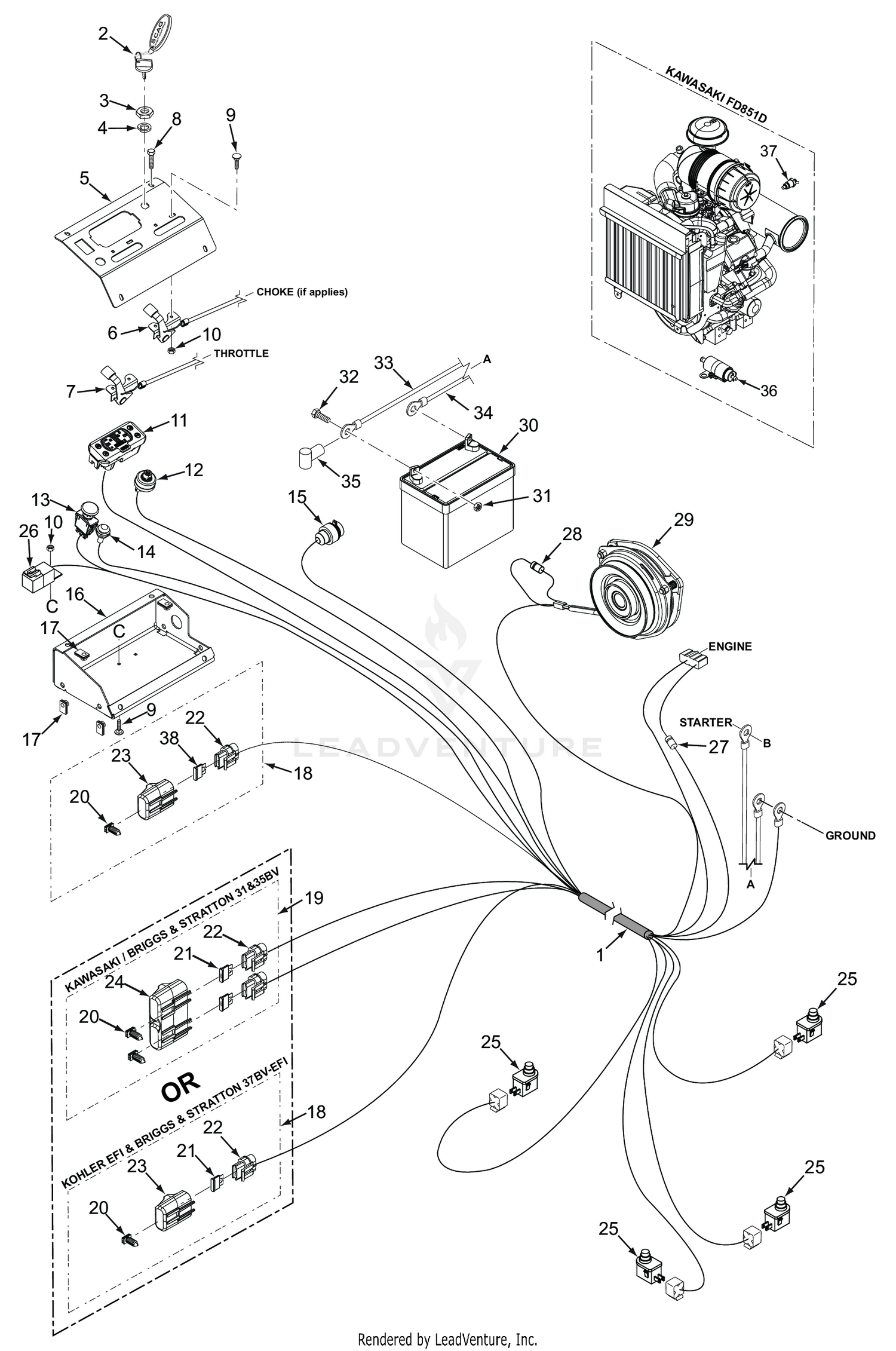

Wire Harness, STTII-40BV-EFI (Briggs & Stratton) Price: Call Us |
| 2 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 2 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 3 |
105-0150 |
SEAL-GREASE This part replaces 253-146. Price: $4.88 |
| 3 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 4 |
47-4250 |
SLEEVE-WEAR Price: $24.09 |
| 4 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 5 |
462930 |
Instrument Panel w/Decal Price: Call Us |
| 5 |
47-4260 |
SLINGER-GRASS Price: $1.78 |
| 6 |
130-0081 |
REEL-7IN FWY, (30) 11 BLD This part replaces 11-5119. Price: $674.98 |
| 6 |
481544 |
Control Cable (Kawasaki FX921 Throttle & Choke Cable) Price: Call Us |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
04013-04 |
Bolt, Hex Head Serrated Flange 1/4-20 x 3/4" Price: Call Us |
| 8 |
322-1 |
SCREW-HH Price: $0.22 |
| 9 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 9 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 10 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 10 |
47-4300-01 |
HANDLE ASM This part replaces 47-4300. Price: $71.44 |
| 11 |
47-4420 |
SPACER-SLEEVE, ADJUSTMENT Price: $7.85 |
| 11 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 12 |
47-4400 |
ARM-SPRING Price: $23.59 |
| 12 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 13 |
253-84 |
SEAL-OIL Price: $10.00 |
| 13 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 14 |
257-5 |
WASHER-THRUST Price: $1.83 |
| 14 |
481182 |
Indicator Light, Glow Plugs (Includes Mounting Hardware) Price: Call Us |
| 15 |
257-6 |
BEARING-THRUST Price: $4.78 |
| 15 |
485568 |
Power Plug, 12V Price: Call Us |
| 16 |
427541 |
Base, Instrument Panel Price: Call Us |
| 16 |
47-4410 |
HOUSING-RETAINER Price: $83.21 |
| 17 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 17 |
57-5190 |
SCREW-SET, HSH This part replaces 32110-19. Price: $5.50 |
| 18 |
3218-18 |
NUT-JAM Price: $0.57 |
| 18 |
485739 |
Single Fuse Assy., Excluding Fuse Price: Call Us |
| 19 |
47-4080-01 |
BEDBAR ASM This part replaces 47-4080. Price: $453.63 |
| 19 |
483642 |
Double Fuse Assy. Price: Call Us |
| 20 |
3296-19 |
NUT-HEX Price: $0.65 |
| 20 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 21 |
47-4440 |
WASHER-PLASTIC Price: $1.35 |
| 21 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 22 |
47-6680 |
BEDKNIFE, RM (FAIRWAY) Price: $90.64 |
| 22 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 23 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 23 |
483643 |
Cover, Sealed Single Price: Call Us |
| 24 |
3296-57 |
NUT-LOCK, NI Price: $1.13 |
| 24 |
483571 |
Cover, Sealed Double Price: Call Us |
| 25 |
47-4490 |
PINION-REEL Price: $57.09 |
| 25 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 26 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 26 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 27 |
482253 |
Decal, Forward Speed Selector Price: Call Us |
| 27 |
68-7530 |
BUSHING Price: $19.19 |
| 28 |
47-4530 |
RETAINER-DRAWBAR Price: $21.45 |
| 28 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 29 |
37-3490-01 |
BRACKET-DRAWBAR This part replaces 37-3490. Price: $18.94 |
| 30 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 31 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 32 |
11-5069 |
MAIN TUBE ASM Price: $641.88 |
| 33 |
47-4510 |
SHAFT-ADJUSTING Price: $47.27 |
| 34 |
47-5750 |
DECAL-REELMASTER, 11 BLADE Price: $12.85 |
| 35 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 35 |
48126 |
RUBBER BOOT Price: Call Us |
| 36 |
5-1463 |
PINION-REEL Price: $82.16 |
| 37 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 37 |
481670 |
Sender Unit, Water Temp. (Liquid Cooled Only) Price: Call Us |
