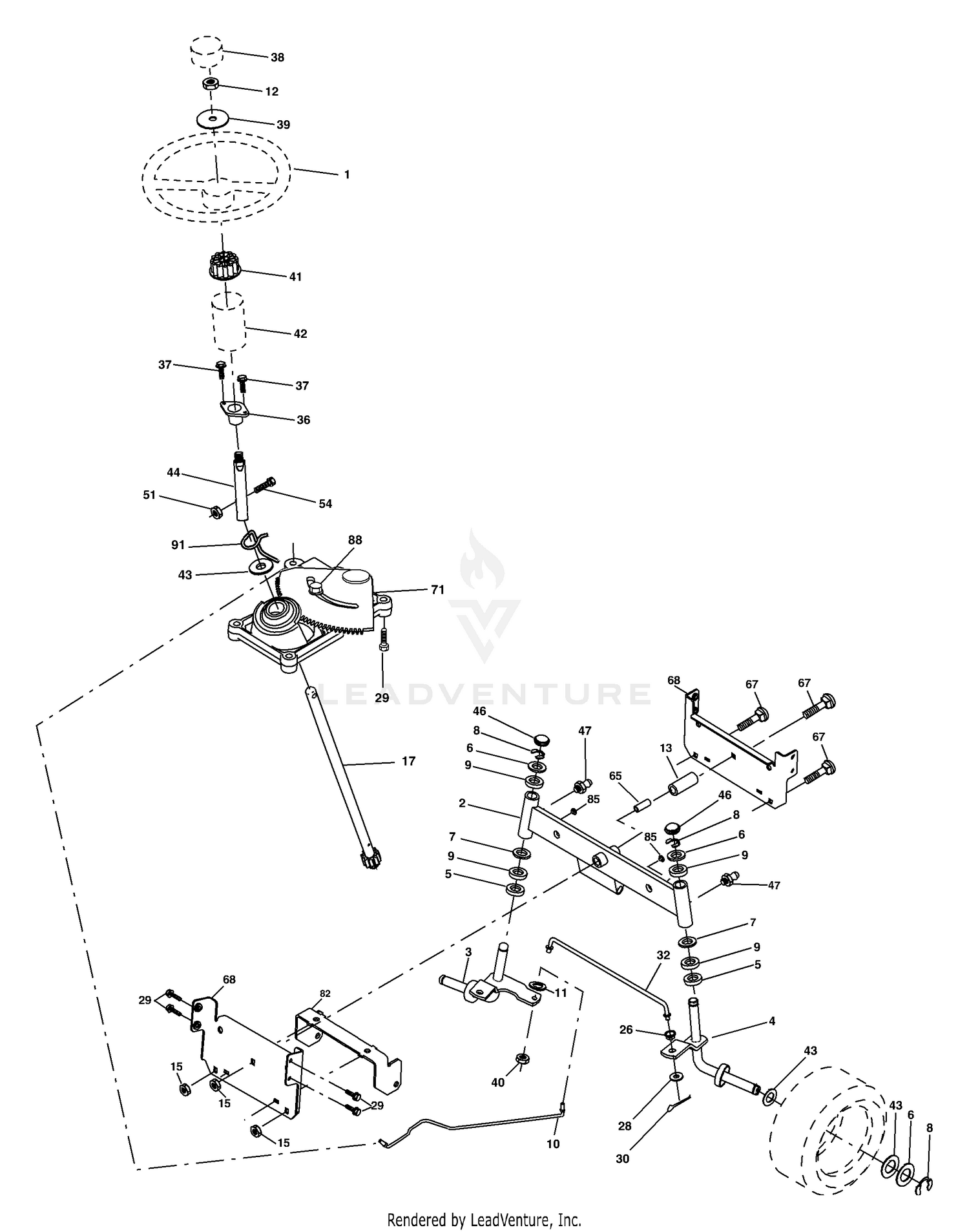

Steering Assembly

Steering Assembly

Parts (64)

RefPart NumberDescription
1 140044X428 Wheel Steering Auto Black Price: Call Us
2 175131 Axle Asm Front Price: Call Us
3 169840 Spindle Asm Lh Price: Call Us
4 169839 Spindle Asm Rh Price: Call Us
5 6266H Bearing Race Thrust Harden Price: Call Us
5 809185 Cylinder Head (No. 1)(Used After Date Code 01120200) Price: Call Us
5A 809186 Cylinder Head (No. 2)(Used After Date Code 01120200) Price: Call Us
6 121748X Washer 25/32 X 1 5/8 X 16ga Price: Call Us
7 19272016 Washer 27/32 X 1 1/4 X 16 Ga Price: Call Us
8 12000029 Ring Klip #t5304-75 Price: Call Us
9 3366R Bearing Col Strg Blk Price: Call Us
10 175121 Link Drag Extended Price: Call Us
11 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
12 73940800 Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us
13 136518 Spacer Bearing Axle Front Price: Call Us
13 692059 Screw Price: Call Us
15 145212 Hex Flange Lock Price: Call Us
17 180641 Shaft Asm Strg Price: Call Us
26 126847X Bushing Rod Tie Blk Lt Price: Call Us
28 19131416 Washer 13/32 X 7/8 X 16ga Price: Call Us
29 17060612 Screw 3/8-16x3/4 Price: Call Us
30 76020412 Pin Price: Call Us
32 130465 Rod Tie Wire Form 19 75 Mech Price: Call Us
33 807681 Valve-Exhaust Price: Call Us
34 807680 Valve-Intake Price: Call Us
35 692084 Spring-Valve Price: Call Us
36 155099 Bushing Strg 5/8 Id Dash Price: Call Us
36 692084 Spring-Valve Price: Call Us
37 152927 Screw TT #10-32 x 5 x 3/8 Flange Price: Call Us
38 140045X428 Insert Cap Strg Price: Call Us
39 19183812 Washer 9/16 ID x 2-3/8 OD 12 Gr Price: Call Us
40 692058 Retainer-Valve Price: Call Us
40 7810H Locknut Center Price: Call Us
41 100711L Adaptor Wheel Strg 640/ 635id Price: Call Us
42 145054X428 Boot Dash Steering Price: Call Us
42 807683 Keeper-Valve Price: Call Us
43 121749X Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us
44 180640 Extension Steering Price: Call Us
45 690977 Tappet-Valve Price: Call Us
46 121232X Cap Spindle Fr Top Blk Price: Call Us
47 183226 Fitting Grease Price: Call Us
51 73540400 Nut Crownlock 1/4-28 Price: Call Us
54 71130420 Bolt Hex 1/4-28unf x 1-1/4 Gr. 8 Price: Call Us
65 160367 Spacer Brace Axle Price: Call Us
67 72140618 Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us
68 169827 Brace Axle Price: Call Us
71 175146 Steering Asm Price: Call Us
82 169835 Bracket Susp Chassis Front Price: Call Us
85 133835 Fastener Christmas Tree Price: Call Us
88 175118 Bolt Shoulder 7/16-20 Price: Call Us
192 807623 Screw-Valve Adjustment (Incl. Jam Nut) Price: Call Us
276A 807085 DISCONTINUED Price: Call Us
337 496018 Spark Plug Price: Call Us
383 19374 Wrench-Spark Plug Price: Call Us
613 691902 Screw Price: Call Us
635 692076 Boot-Spark Plug Price: Call Us
830 809157 Stud-Arm, Rocker Price: Call Us
868 691963 Seal-Valve Price: Call Us
871 692057 Bushing-Guide, Valve Price: Call Us
883 691613 Gasket-Exhaust Price: Call Us
1026 691836 Rod-Push Price: Call Us
1029 691543 Arm-Rocker Price: Call Us
1100 690973 Pivot-Arm, Rocker Price: Call Us
691758 Rod-Push Price: Call Us 691758
