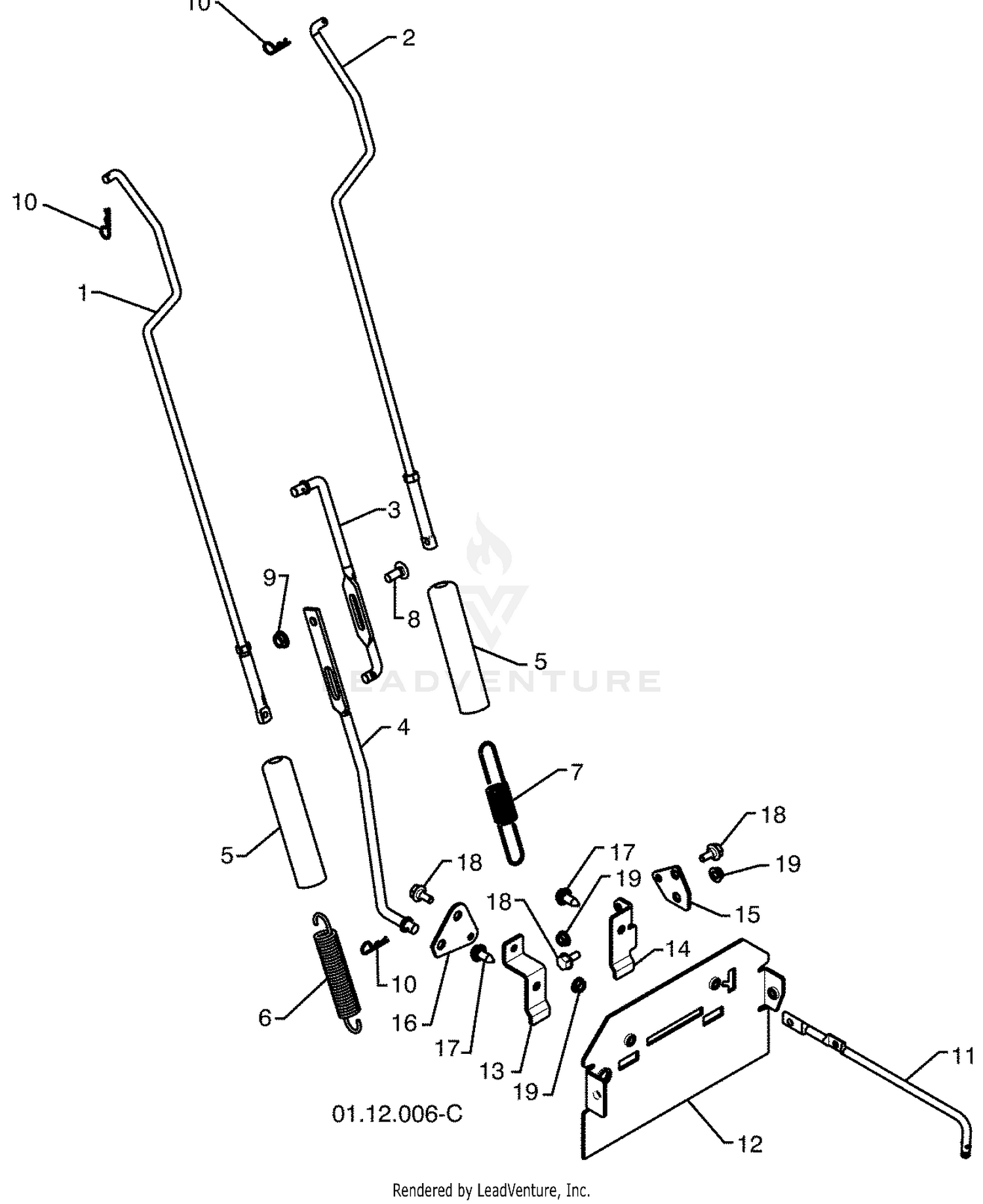

| Ref | Part Number | Description |
|---|
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 1 |
532180480 |
ROD.ASM.IMPELLER Price: $24.99 |
| 2 |
532405740 |
ROD.ASM.TRACTION Price: $27.99 |
| 2 |
94-3456 |
DISCONTINUED X-REF Price: Call Us |
| 3 |
33113-030 |
SCREW-HH Price: $0.54 |
| 3 |
532180445 |
ROD, UPPER SPEED CONTROL Price: $34.99 |
| 4 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 4 |
532187716 |
ROD, LOWER SPEED CONTROL.SNOW Price: $17.99 |
| 5 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 5 |
94-1312 |
SPACER-PIVOT Price: $6.97 |
| 6 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 6 |
94-3488-03 |
LEVER-PUMP This part replaces 94-3488. Price: $48.64 |
| 7 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 7 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 8 |
3210-6 |
SCREW-HH Price: $1.76 |
| 8 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 9 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 9 |
94-1307 |
DISCONTINUED X-REF Price: Call Us |
| 10 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 10 |
94-9609 |
BUSHING-STRAIGHT This part replaces 93-2103. Price: $6.08 |
| 11 |
532403300 |
ROD.CLUTCH.YELLOW.ZINC(VT) Price: $9.99 |
| 11 |
94-4527 |
ARM-NEUTRAL Price: $145.11 |
| 12 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 12 |
532416921 |
PLATE.REAR.SNOW.PNT.ORANGE Price: $11.99 |
| 13 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $3.99 |
| 13 |
93-2111 |
STUD-TRACTION Price: $20.29 |
| 14 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 14 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $3.99 |
| 15 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 15 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 16 |
251-259 |
BEARING-BALL Price: $13.67 |
| 16 |
532415450 |
PLATE.SHIFTER.BZP Price: $6.99 |
| 17 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 17 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 18 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 18 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 19 |
94-3491 |
BRACKET - SPRING Price: $16.24 |
| 20 |
323-4 |
SCREW-HH Price: $1.02 |
| 21 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 22 |
33114-025 |
SCREW-HH Price: $0.70 |
| 23 |
33114-030 |
SCREW-HH Price: $0.50 |
| 24 |
33114-020 |
SCREW-HH Price: $0.28 |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 27 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 28 |
93-9051 |
DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 29 |
107-2550 |
CABLE-CONTROL, TRACTION This part replaces 93-2099. Price: $194.40 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
3220-2 |
NUT-JAM Price: $0.50 |
| 33 |
33115-035 |
SCREW-HH Price: $1.15 |
| 34 |
94-3486 |
PLATE Price: $107.60 |
| 35 |
63-9750 |
MOUNT Price: $18.92 |
| 36 |
2844 |
WASHER Price: $2.69 |
| 37 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
