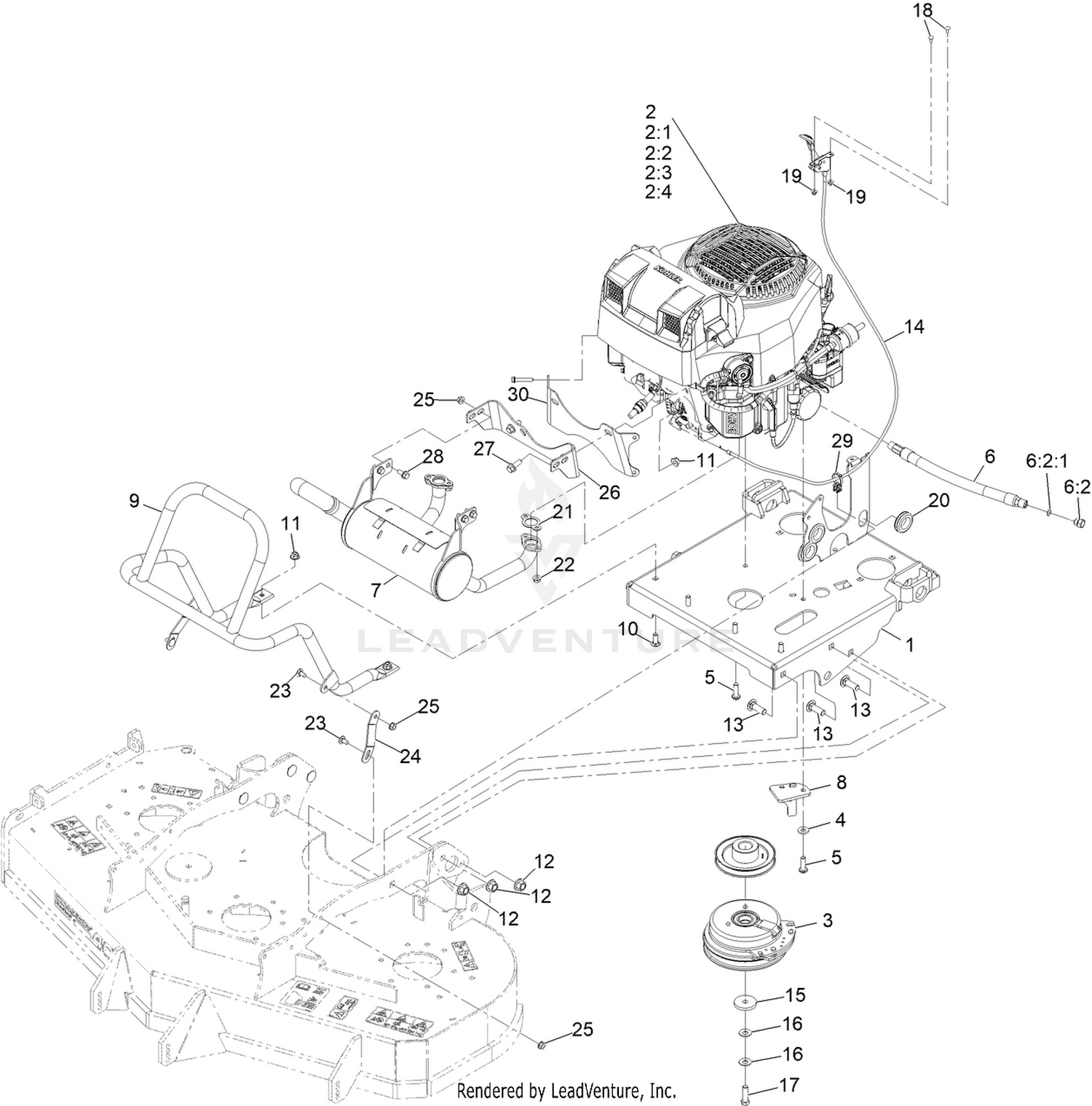

| Ref | Part Number | Description |
|---|
| 1 |
146-3104-01 |
ASM-ENGINE DECK Price: $415.99 |
| 3 |
146-3887 |
Clutch, Cms-175 Price: $379.99 |
| 4 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 5 |
146-2944 |
Screw-PH-T45 Price: $9.99 |
| 6 |
116-5108 |
OIL DRAIN HOSE ASM Price: $36.99 |
| 7 |
146-4016 |
MUFFLER- KOHLER EFI Price: $265.99 |
| 8 |
142-6567 |
ASM-CLUTCH ANCHOR Price: $16.99 |
| 9 |
142-6783-03 |
Tube-Guard Muffler Price: $143.99 |
| 10 |
3231-22 |
SCREW-CARR Price: $3.09 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 12 |
99-5107 |
Nut-Lock 1/2-13 Price: $1.69 |
| 13 |
3233-2 |
Screw-CARR Price: $7.39 |
| 14 |
116-4919 |
CONTROL,THROTTLE Price: $37.99 |
| 15 |
109-6919 |
WASHER-CLUTCH Price: $7.19 |
| 16 |
1-603610 |
WASHER-SPRING Price: $4.79 |
| 17 |
109-9761 |
SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE Price: $4.79 |
| 18 |
1-807513 |
BOLT-CARR Price: $2.29 |
| 19 |
120-4578 |
NUT-HF Price: $0.49 |
| 20 |
108-3723 |
GROMMET Price: $7.19 |
| 21 |
110-6697 |
GASKET-EXHAUST Price: $6.39 |
| 22 |
68-9400 |
NUT-FLANGE Price: $2.29 |
| 23 |
3230-18 |
SCREW-CARR Price: $4.79 |
| 24 |
142-7748-03 |
Strap, Muffler Guard Price: $5.29 |
| 25 |
32128-25 |
NUT-HF Price: $3.19 |
| 26 |
132-1168 |
BRACKET-MUFFLER Price: $37.99 |
| 27 |
3234-42 |
SCREW-HHF 3/8-16 X 1 Price: $2.99 |
| 28 |
3234-5 |
SCREW-HHF Price: $0.99 |
| 29 |
32180-082 |
Clip-Edge W/Tie, Perpendicular Price: $5.49 |
