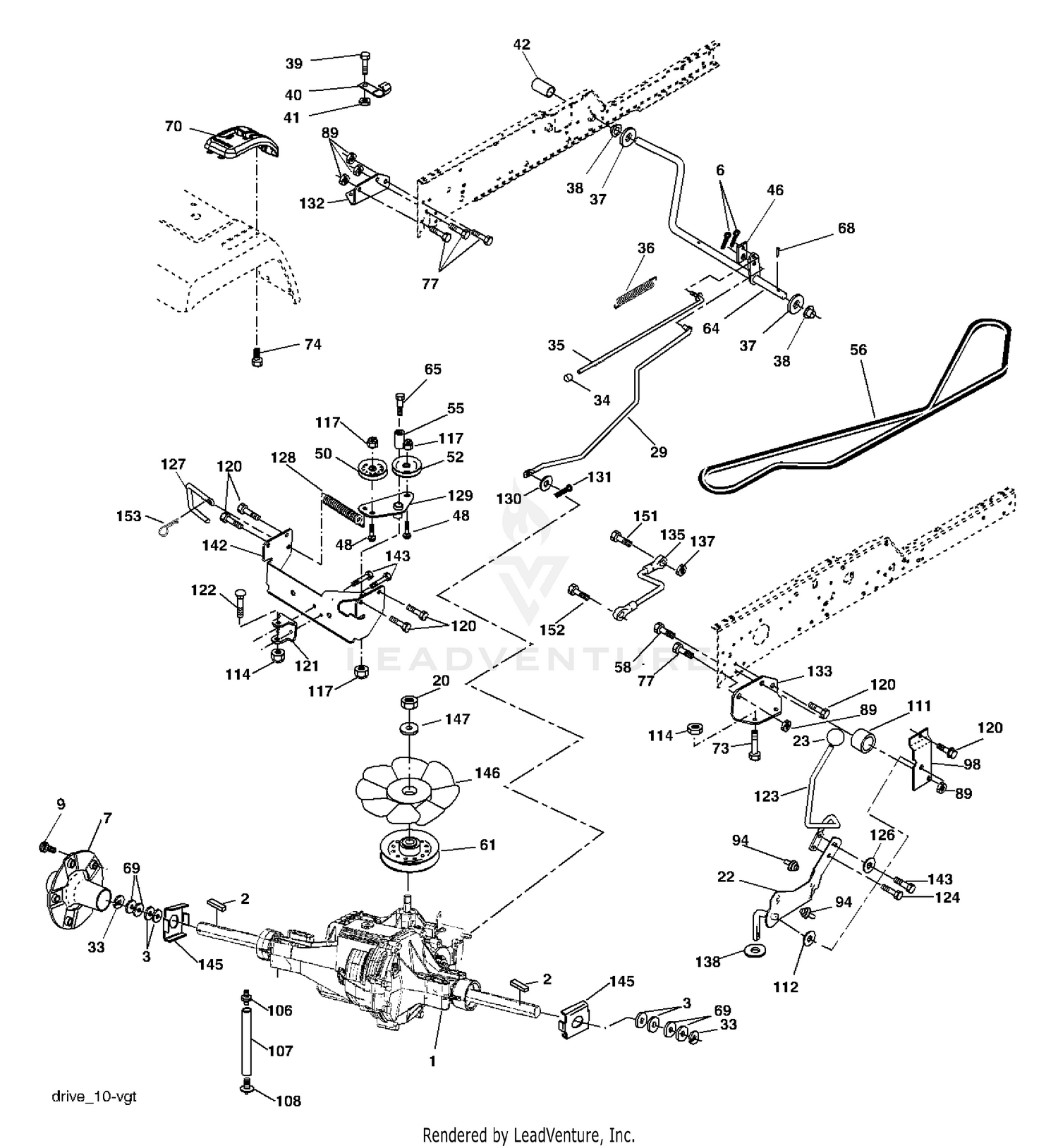

| Ref | Part Number | Description |
|---|
| 1 |
32120-8 |
RING-SNAP Price: $1.76 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
72-3750 |
BEARING-ROLLER Price: $180.02 |
| 3 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 4 |
67-9080 |
HOUSING-MOTOR Price: $1,756.34 |
| 5 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 6 |
25-2650 |
PLUG-VALVE, CHECK Price: $89.01 |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 7 |
237-86 |
O-RING Price: $5.47 |
| 7 |
532140507 |
HUB ASMBLY Price: $149.99 |
| 8 |
25-2640 |
SPRING-VALVE Price: $4.22 |
| 9 |
25-2490 |
BALL Price: $14.47 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
67-9100 |
GASKET Price: $15.83 |
| 11 |
99-5689 |
CHECK VALVE KIT This part replaces 25-3180. Price: $83.29 |
| 12 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 13 |
237-22 |
O-RING Price: $2.43 |
| 14 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 15 |
88-8220 |
VALVE-BY PASS This part replaces 25-2620. Price: $189.03 |
| 16 |
25-2610 |
SPRING-VALVE Price: $29.42 |
| 17 |
25-2410 |
VALVE ASM Price: $514.54 |
| 18 |
76-1900 |
O-RING Price: $3.64 |
| 19 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 20 |
119-2895 |
SPLINED SHAFT KIT This part replaces 67-8020. Price: $1,116.09 |
| 20 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 21 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 22 |
117-2700 |
HOUSING KIT This part replaces 54-7890. Price: $2,321.28 |
| 22 |
532180235 |
LOWER SHIFT LEVER ASM Price: $27.99 |
| 23 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 24 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 25 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 26 |
25-2580 |
SHAFT-TRUNNION Price: $215.33 |
| 27 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 28 |
25-2460 |
PLUG-HH Price: $37.38 |
| 29 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 29 |
532176600 |
BRAKE, ROD Price: $14.99 |
| 30 |
25-2570 |
SPRING-VALVE Price: $12.67 |
| 31 |
83-7260 |
CONE-RELIEF, CHARGE Price: $50.57 |
| 32 |
353-551 |
PLUG-HH Price: $18.48 |
| 33 |
237-80 |
O-RING Price: $6.10 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
25-2550 |
DISCONTINUED-SEE PB#945 Price: Call Us |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 35 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 36 |
532149412 |
SPRING DRIVE GROUND Price: $4.99 |
| 36 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 37 |
322-4 |
SCREW-HH Price: $0.35 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
25-2680 |
GEROTOR ASM Price: $651.02 |
| 38 |
532150035 |
NYLINER Price: $3.99 |
| 39 |
25-2530 |
PIN-STRAIGHT, HEADLESS Price: $21.24 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
25-3190 |
DISCONTINUED-SEE PB#945 Price: Call Us |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH Price: $3.99 |
| 41 |
237-95 |
O-RING Price: $11.97 |
| 41 |
873931000 |
Nut Centerlock 10-24 unc Price: $4.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
67-9090 |
PLUG Price: $41.68 |
| 43 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 44 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 45 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 46 |
251-8 |
BEARING-BALL Price: $30.06 |
| 46 |
532145170 |
RETAINER SPRING Price: $3.99 |
| 47 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 48 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 48 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 50 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 51 |
25-2440 |
PLATE-VALVE, PUMP Price: $491.90 |
| 52 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 52 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 53 |
110-6341 |
BEARING-ROLLER This part replaces 46-8400. Price: $41.33 |
| 54 |
93-4132 |
O-RING This part replaces 62-4290. Price: $6.84 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 55 |
92-8918 |
SECTION-CENTER Price: $1,338.76 |
| 56 |
532161597 |
BELT, V GROUND DRIVE Price: $39.99 |
| 57 |
25-2390 |
PLATE-VALVE, MOTOR Price: $832.97 |
| 58 |
46-8410 |
SHAFT-MOTOR Price: $968.23 |
| 58 |
874760724 |
BOLT.HEX.7/16-14.FINISHED Price: $3.99 |
| 59 |
25-2400 |
GASKET Price: $19.26 |
| 60 |
74-9510 |
WASHER-PLAIN Price: $0.65 |
| 61 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 61 |
75-0170 |
PLUG-THREAD, STRAIGHT This part replaces 92-8776. Price: $18.20 |
| 64 |
532176601 |
SHAFT.ASM.PEDAL.BRAKE Price: $37.99 |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 Price: $4.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532192390 |
CONSOLE.SHIFT This part replaces 532194877. Price: $8.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 77 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 89 |
873680700 |
Nut Crownlock 7/16-14 unc Price: $2.99 |
| 94 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 98 |
532141004 |
SHIFT BRACKET Price: $3.99 |
| 106 |
532142918 |
O-RING KIT 70110 Price: $22.99 |
| 107 |
532154739 |
LINE.VENT.HYDRO-GEAR Price: $4.99 |
| 108 |
532142578 |
VENT CAP 70109 This part replaces 532142917. Price: $37.99 |
| 111 |
532156240 |
SPACER SHIFT LEVER VGTH Price: $2.99 |
| 112 |
532178558 |
WASHER NYLON HIGH TEMP Price: $4.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 117 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 120 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 123 |
532192438 |
ROD.SHIFT Price: $34.99 |
| 124 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 126 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 127 |
532177362 |
LINK CONTROL CLUTCH Price: $7.99 |
| 128 |
532176624 |
SPRING DRIVE GRND Price: $4.99 |
| 129 |
532179473 |
BRACKET ARM IDLER TENSIONING Price: $22.99 |
| 130 |
819131016 |
WASHER Price: $2.99 |
| 131 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 132 |
532175467 |
BRACKET MTG HYDRO 3500 LH VGT Price: $3.99 |
| 133 |
532175468 |
BRACKET MTG HYDRO 3500 RH VGT Price: $4.99 |
| 135 |
532177364 |
LINK ASM CONTROL HYDRO 3500 Price: $48.99 |
| 137 |
532124949 |
LOCKNUT Price: $3.99 |
| 138 |
532001370 |
THRUST WASHER Price: $4.99 |
| 142 |
532175469 |
STRAP TORQUE HT-3500 Price: $32.99 |
| 143 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 146 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 147 |
532141322 |
WASHER Price: $3.99 |
| 151 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 152 |
532178705 |
BOLT HEX 5/16X1 W/PATCH Price: $2.99 |
