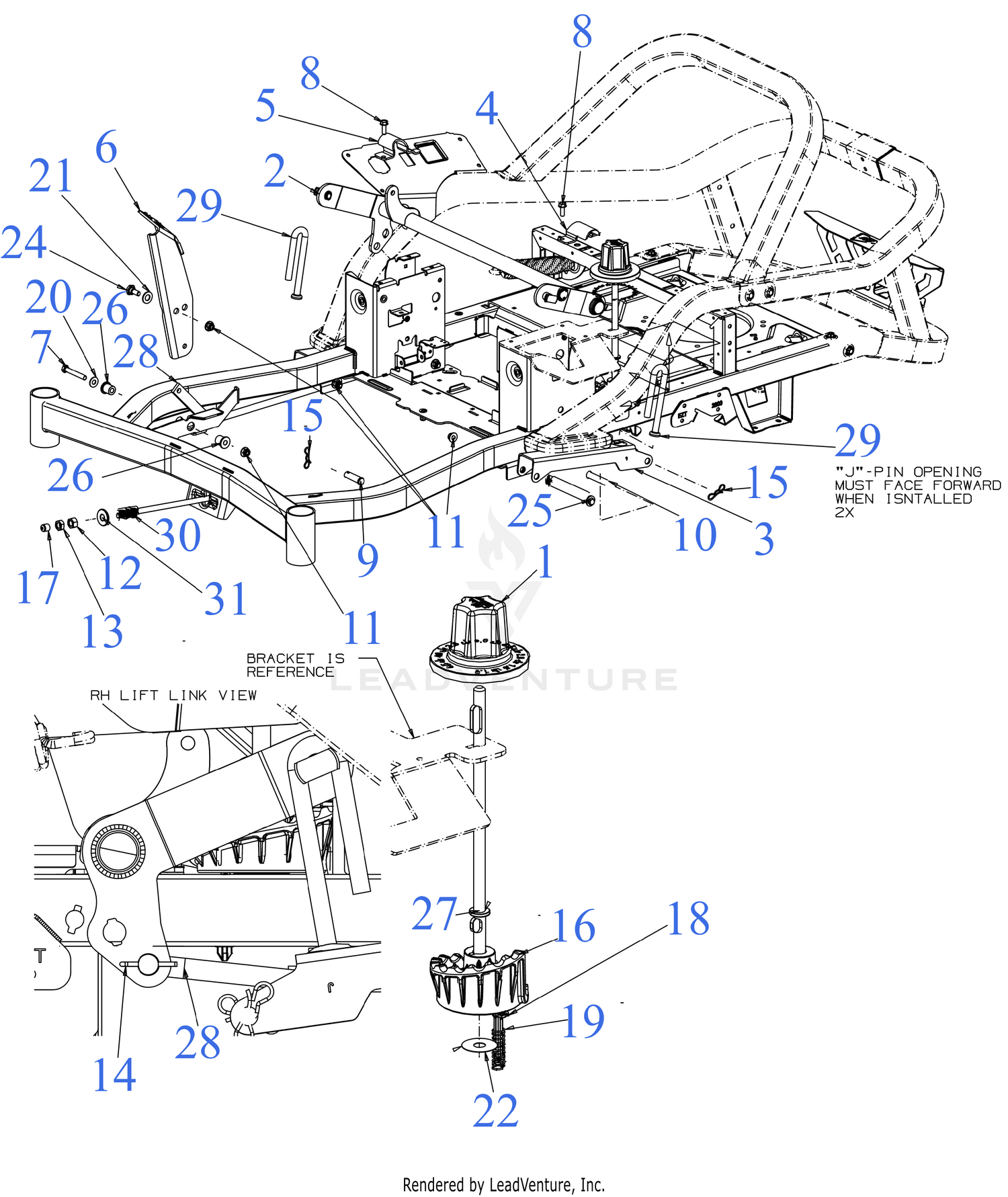

| Ref | Part Number | Description |
|---|
| 1 |
631P06839 |
DECK HEIGHT ADJUSTMENT KNOB Price: $10.17 |
| 5 |
703-14961 |
LIFT SHAFT (RETAINER) (RH) Price: $4.69 |
| 7 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 8 |
710-0817 |
SCREW 5/16-18 x 1.25 Price: $5.77 |
| 8 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 9 |
711-0231A |
CLEVIS PIN .500 x 1.875 Price: $5.48 |
| 10 |
711-04007A |
CLEVIS PIN .50 x 2.5 Price: $6.24 |
| 11 |
712-04065 |
NUT Price: $3.68 |
| 12 |
712-05046 |
HEX NUT NYLOK 1/2-13 Price: $3.74 |
| 13 |
712-3048 |
HEX NUT Price: $4.08 |
| 14 |
714-0470 |
COTTER PIN Price: $3.90 |
| 15 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 16 |
619P06365 |
DECK LIFT CUP This part replaces 719P05892. Price: $27.28 |
| 17 |
726-05009 |
LIFT ROD END CAP Price: $3.70 |
| 18 |
731-16491A |
DETENT PLUNGER Price: $3.13 |
| 19 |
932-0306A |
COMPRESSION SPRING .531 OD 1.75 LG Price: $7.69 |
| 20 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 21 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 22 |
736-05862 |
SHIM WASHER .50 x 1.5 x .02 Price: $5.48 |
| 24 |
738-0380 |
SHOULDER SCREW Price: $7.34 |
| 25 |
738-06154 |
SHLDER SCREW .498x5.0 3/8-16 Price: $8.61 |
| 26 |
741-07070 |
FLANGE BEARING (.38x.75x.77) Price: $1.97 |
| 27 |
747-07510A |
DECK HEIGHT ADJUSTMENT ROD Price: $25.08 |
| 29 |
747-07210 |
HANGER LINK ROD Price: $9.41 |
| 30 |
747-07370 |
DECK FRONT LIFT ROD Price: $10.97 |
