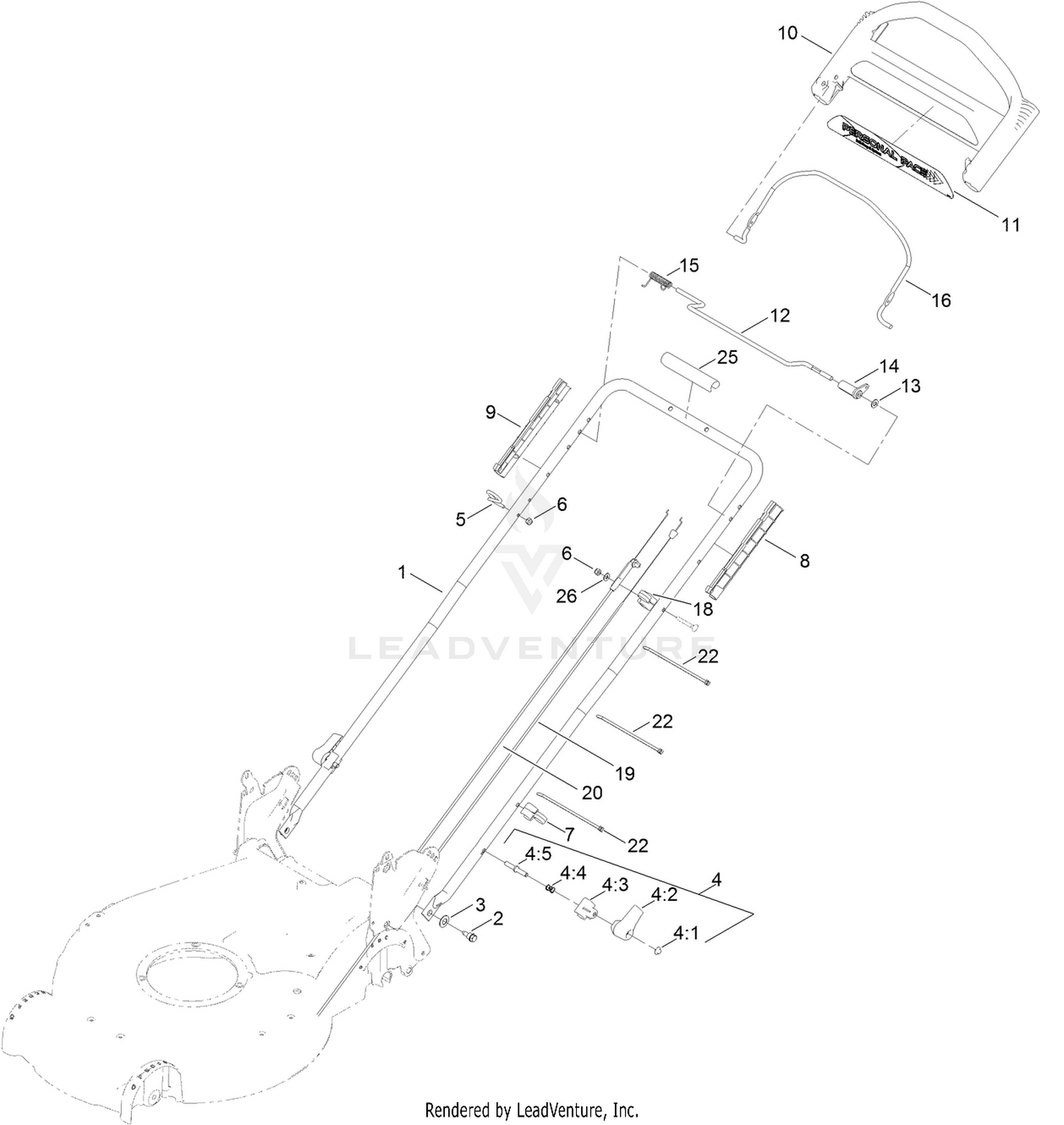

Handle Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-4460-05 | HANDLE Price: $53.31 |
| 2 | 115-1958 | BOLT-SHOULDER Price: $3.18 |
| 3 | 112-9972 | WASHER-SPRING, CONICAL Price: $4.38 |
| 4 | 138-3249 | QUICK RELEASE ASM Price: $7.22 |
| 5 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 6 | 137-3094 | NUT-HEX Price: $0.34 |
| 7 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 8 | 105-6842 | GUIDE-LH Price: $5.65 |
| 9 | 105-6841 | GUIDE-RH Price: $5.65 |
| 10 | 104-8678 | HANDLE-CONTROL Price: $53.94 |
| 11 | 120-3911 | DECAL-HANDLE Price: $9.21 |
| 12 | 136-7150 | BAR-CONTROL, TRACTION Price: $10.75 |
| 13 | 120-9683 | WASHER-PLAIN Price: $0.25 |
| 14 | 99-1589 | LEVER-TRACTION Price: $4.81 |
| 15 | 136-7166 | SPRING-TORSION Price: $2.17 |
| 16 | 131-0880-03 | BAIL-BRAKE Price: $10.21 |
| 18 | 136-5864 | ANCHOR-CABLE Price: $1.93 |
| 19 | 117-9389 | CABLE-TRACTION Price: $25.07 |
| 20 | 117-5900 | CABLE-BRAKE Price: $27.26 |
| 22 | 614249 | TIE-CABLE Price: $0.79 |
| 25 | 131-4551 | COVER-HANDLE Price: $0.95 |
