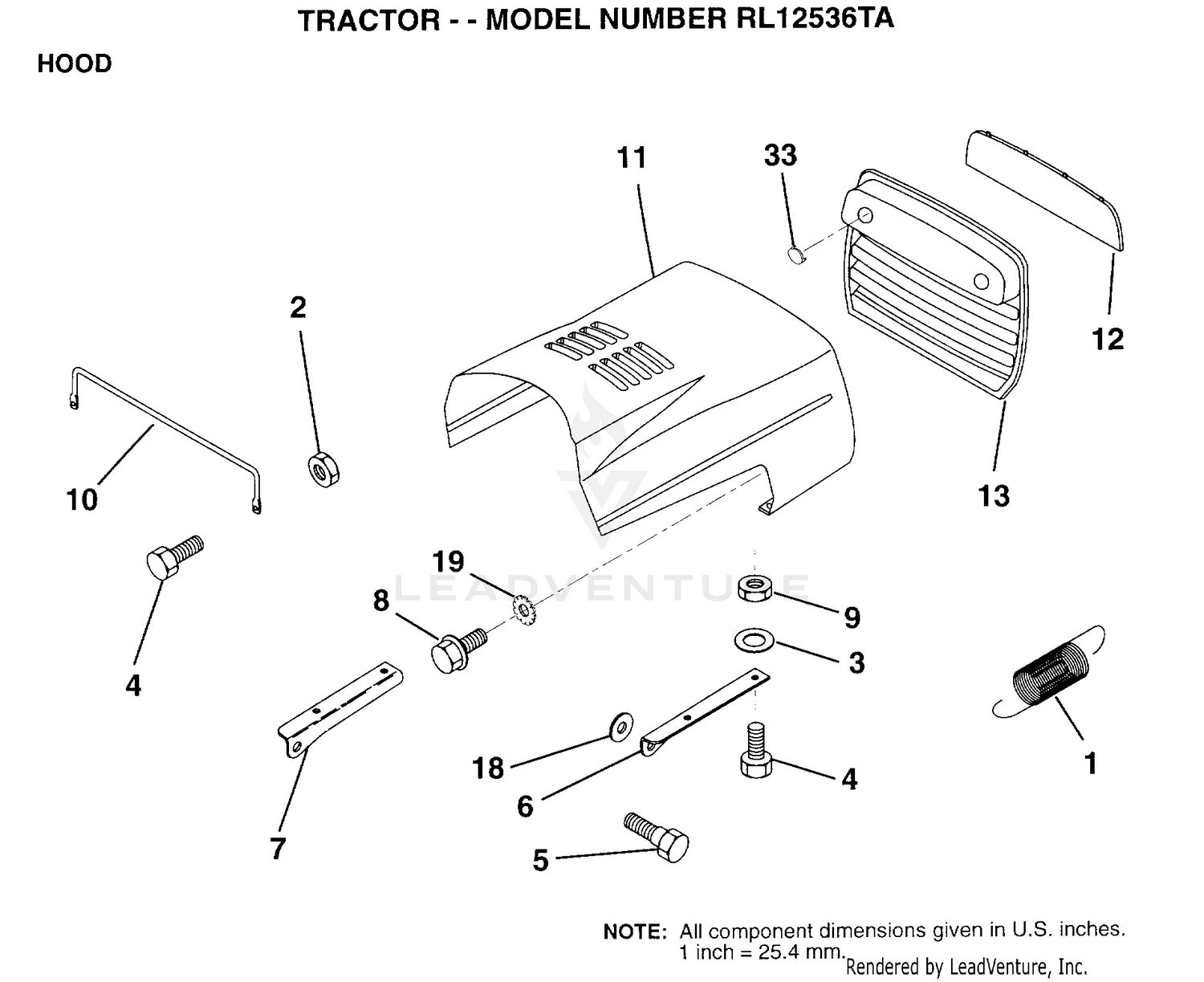

| Ref | Part Number | Description |
|---|
| 1 |
124657X |
EXT SPRING Price: Call Us |
| 2 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 3 |
19091416 |
WASHER Price: Call Us |
| 4 |
74780412 |
SUB= 74780414 Price: Call Us |
| 5 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 6 |
122549X |
BRKT HOOD RH Price: Call Us |
| 7 |
122548X |
BRKT HOOD LH Price: Call Us |
| 8 |
17521310 |
SUB= 17521312 Price: Call Us |
| 9 |
73800400 |
NUT Price: Call Us |
| 010 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 010 |
115-4127 |
PISTON KIT This part replaces 98-9469. Price: $518.71 |
| 11 |
132918X505 |
HOOD Price: Call Us |
| 12 |
122035X |
LENS Price: Call Us |
| 13 |
127029X |
GRILL Price: Call Us |
| 18 |
19111116 |
WASHER Price: Call Us |
| 19 |
11030400 |
LOCKWASHER GT Price: Call Us |
| 020 |
98-9618 |
PISTON RING ASM (STD) Price: $102.14 |
| 020 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 030 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 040 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 050 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9516. Price: $547.99 |
| 060 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 070 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 080 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 080 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 080 |
98-9553 |
BEARING-ROD (STD) This part replaces 98-9518. Price: $52.92 |
| 090 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 180 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9525. Price: $86.06 |
| 190 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 190 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
