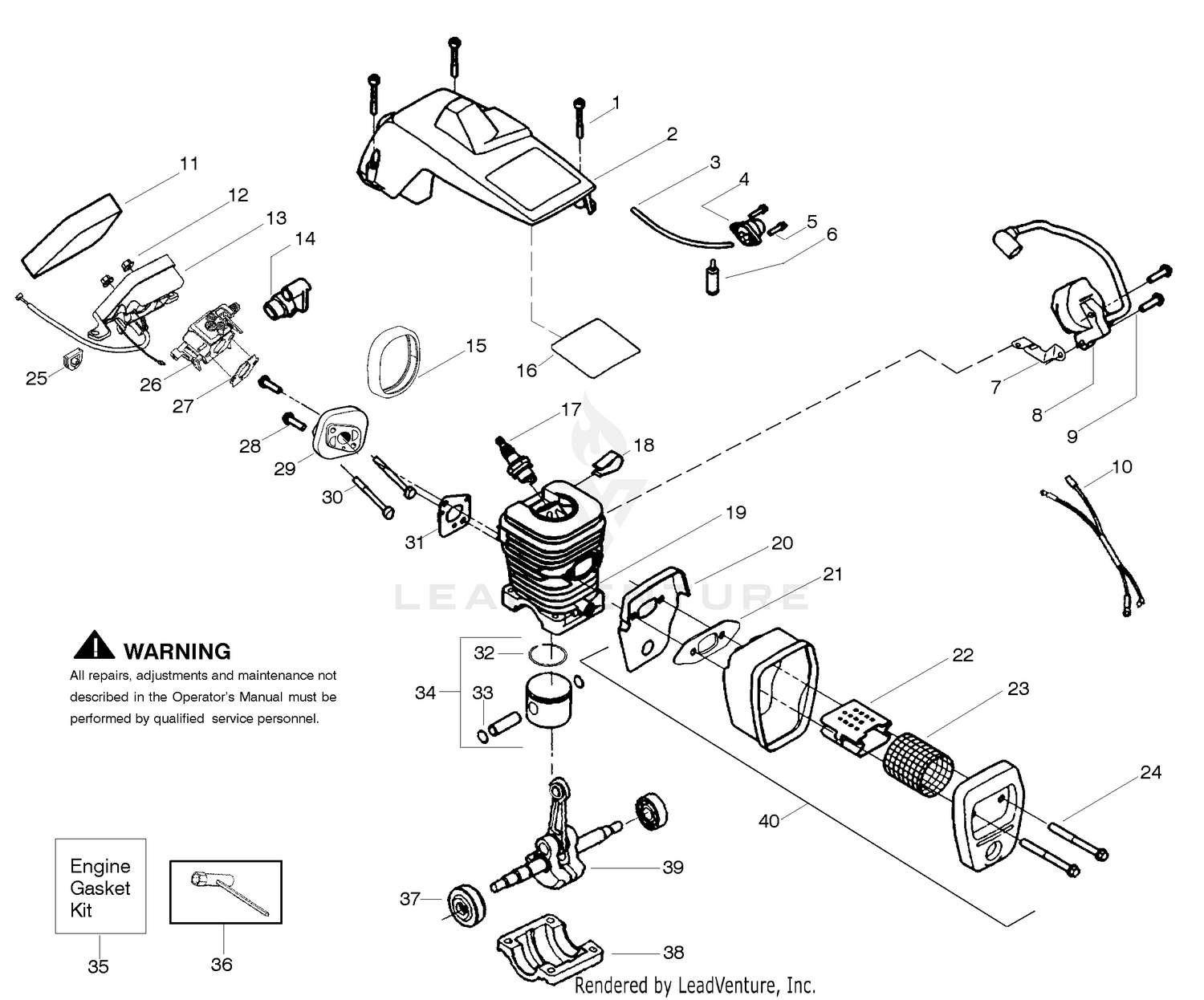

Engine
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016153 | Screw Price: $1.99 |
| 1 | 93-5313 | BUSHING-NYLON Price: $16.84 |
| 2 | 93-5326 | DISCONTINUED Price: Call Us |
| 3 | 530069247 | Kit-Fuel Line (Small) Price: $3.69 |
| 3 | 93-5262 | SPRING-EXTENSION Price: $10.21 |
| 4 | 3272-7 | PIN-COTTER Price: $0.25 |
| 5 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 5 | 530015780 | Screw Price: $1.99 |
| 6 | 32120-72 | RING-SNAP Price: $2.09 |
| 6 | 530095646 | Assy-Fuel Pick-up Price: $2.69 |
| 7 | 530047442 | Strap-Ground Price: $1.99 |
| 7 | 93-5333 | ROD-CONTROL Price: $48.60 |
| 8 | 530039198 | Ignition Module Price: $29.99 |
| 8 | 93-5552 | DISCONTINUED Price: Call Us |
| 9 | 3220-3 | NUT-HJ Price: $0.28 |
| 9 | 530015814 | Screw Price: $1.49 |
| 10 | 530057475 | Assy-Wire Harness Price: $5.99 |
| 10 | 93-5473-03 | LEVER-BRAKE, LH ASM Price: $102.67 |
| 11 | 32121-15 | PIN-ROLL Price: $1.60 |
| 11 | 530037793 | Foam- Air Filter Price: $1.99 |
| 12 | 530016101 | Nut Price: $1.99 |
| 12 | 93-5280-03 | ARM-BRAKE, LH ASM Price: $80.29 |
| 13 | 32151-83 | RING-SNAP Price: $0.34 |
| 13 | 530057702 | Assy- Air Box Price: $4.99 |
| 14 | 530035526 | Grommet-Carb Adjust Price: Call Us |
| 14 | 93-4849 | BEARING-BLOCK, PILLOW Price: $24.13 |
| 15 | 530054144 | Seal-Carb Adapter Price: $2.99 |
| 15 | 93-5475-03 | BRAKE LATCH ASM Price: $132.94 |
| 16 | 530055698 | Reflector-Heat Price: $1.99 |
| 16 | 93-5284-03 | ARM-BRAKE, RH ASM Price: $80.29 |
| 17 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 17 | 503235111 | BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 18 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 18 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 19 | 530012550 | Cylinder Price: $17.99 |
| 19 | 93-5474-03 | LEVER-BRAKE, RH ASM Price: $71.18 |
| 20 | 33124-020 | SCREW-CARR Price: $0.88 |
| 20 | 530049870 | Backplate-Muffler Price: $3.99 |
| 21 | 530069608 | Gasket-Muffler(kit) Price: $5.99 |
| 21 | 93-5551 | CLEVIS Price: $85.05 |
| 22 | 283-2 | PIN-CLEVIS Price: $12.99 |
| 22 | 530037813 | Diffuser-Muffler Price: $1.99 |
| 23 | 3290-467 | PIN-HAIR Price: $0.27 |
| 23 | 530036103 | Screen-Spark Price: Call Us |
| 24 | 33114-020 | SCREW-HH Price: $0.28 |
| 24 | 530016132 | Bolt-Muffler Price: $1.99 |
| 25 | 530047631 | Grommet-Throttle Cable Price: $1.99 |
| 25 | 93-5568 | ARM-LOCK Price: $17.77 |
| 26 | 530071820 | Kit-Carburetor Zama (W-20) Price: $85.99 |
| 26 | 530071821 | Kit-Carburetor Walbro (WT-662) Price: $18.44 |
| 26 | 93-5456-03 | RH PEDAL ASM Price: $36.13 |
| 27 | 530069608 | Gasket-Carb. (kit) Price: $5.99 |
| 27 | 93-8742 | FOOTPAD-BRAKE Price: $27.95 |
| 28 | 530016386 | Screw Price: $5.99 |
| 29 | 530049700 | Carb. Adapter Price: $3.99 |
| 29 | 93-5455-03 | LH PEDAL ASM Price: $37.04 |
| 30 | 33114-025 | SCREW-HH Price: $0.70 |
| 30 | 530016187 | Screw Price: $1.99 |
| 31 | 322-4 | SCREW-HH Price: $0.35 |
| 31 | 530069608 | Gasket- Adaptor(kit) Price: $5.99 |
| 32 | 3218-2 | NUT-JAM Price: $0.25 |
| 32 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 36 | 530031163 | Wrench-bar Price: $4.99 |
| 37 | 530056363 | Assy-Seal & Bearing Price: $11.99 |
| 38 | 530037935 | Cap-Crankcase Price: $8.99 |
| 39 | 530047062 | Assy-Crankshaft Price: $72.99 |
