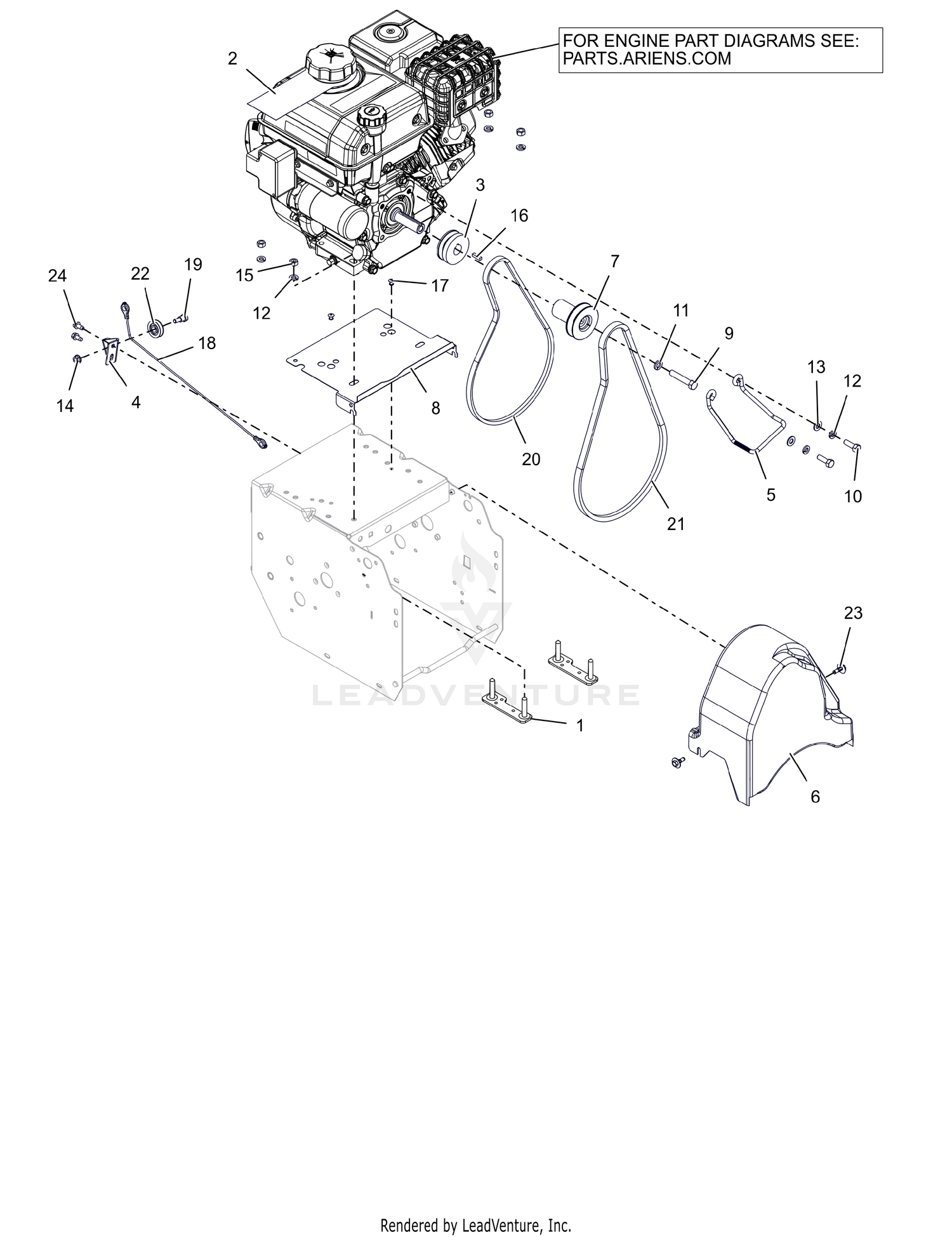

| Ref | Part Number | Description |
|---|
| 1 |
00188400 |
STRAP, ENGINE BOLT-WELDMENT Price: $16.45 |
| 2 |
08201532 |
ENGINE, ARIENS AX212 ALL SEASONS Price: Call Us |
| 3 |
00187900 |
PULLEY, TRACTION Price: $61.45 |
| 4 |
00373000 |
BRKT, CABLE PULLEY Price: $4.45 |
| 5 |
03731800 |
BELT FINGER Price: $15.95 |
| 6 |
04209900 |
BELT COVER Price: $17.95 |
| 7 |
04502900 |
SHEAVE, AUGER DRIVE Price: $18.45 |
| 8 |
04895159 |
BAFFLE- COMPACT Price: $10.45 |
| 9 |
05902015 |
BLT, HEX .38-24X2.00 G5 ZCC Price: $2.95 |
| 10 |
05902108 |
BLT, HEX 0.3125-24X1 G5 ZCC Price: $1.95 |
| 11 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 12 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC Price: $0.45 |
| 13 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 14 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 15 |
06500938 |
NUT, HEX .312-18 ZCC Price: $0.95 |
| 16 |
06606100 |
KEY-SQ .188X.75X.188 Price: $3.45 |
| 17 |
06800140 |
RVT, POP .1875 ZCC Price: $0.95 |
| 18 |
06900505 |
CABLE, LOWER TRACTION (DELUXE) Price: $17.95 |
| 19 |
07001737 |
BOLT, SHLDR -.375 X .375 X .25-20 Price: $3.45 |
| 20 |
07200111 |
V-BELT, 3L-WRAPPED Price: $21.45 |
| 21 |
07238500 |
V-BELT, HA-RAW EDGE Price: $26.95 |
| 22 |
07300012 |
PULLEY, CABLE Price: $4.45 |
| 23 |
07400108 |
SCR-TAP .25-20X.5 CAPTIVE Price: $2.45 |
