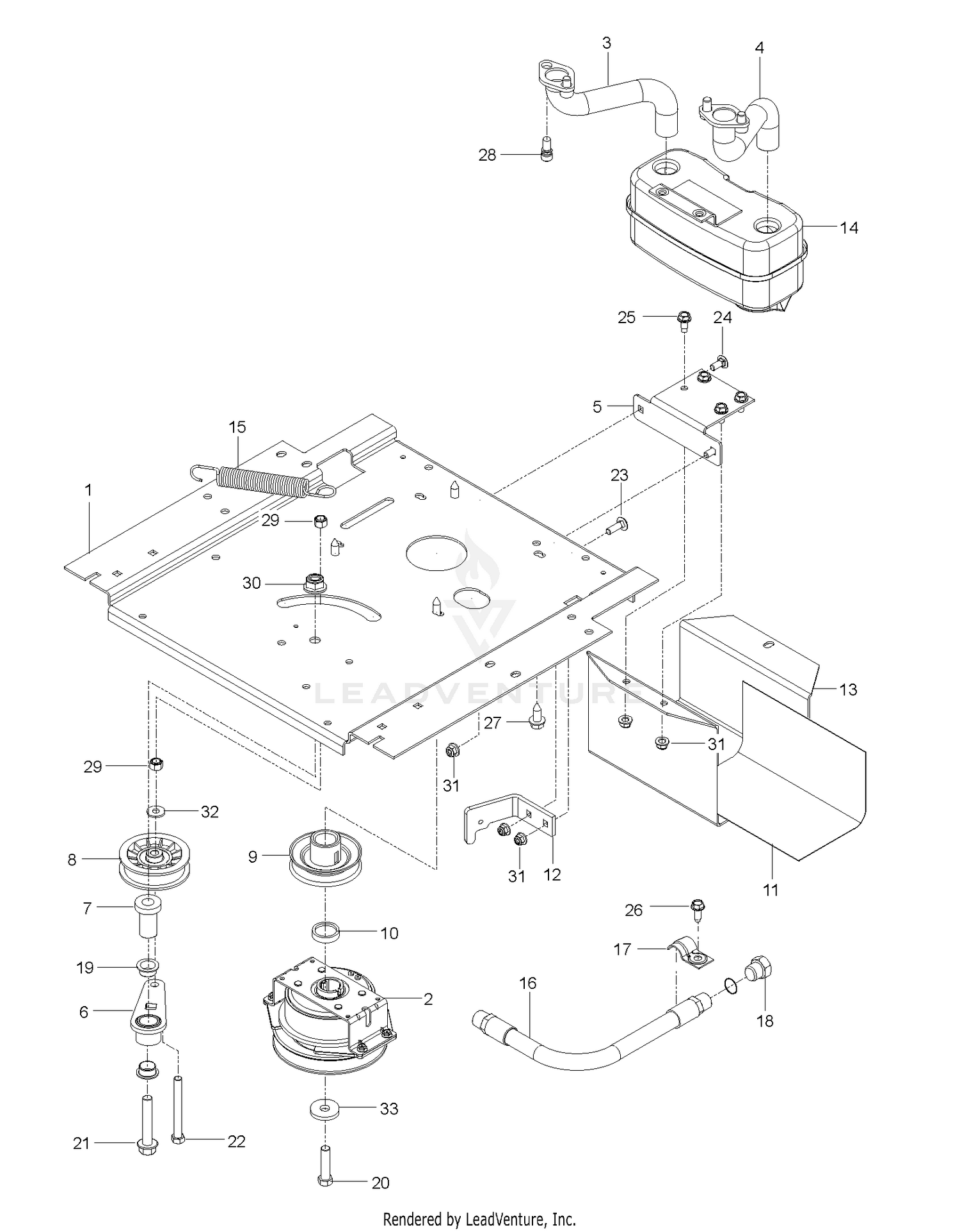

| Ref | Part Number | Description |
|---|
| 1 |
593898602 |
PLATE ENGINE; RZ, 23IN BLACK This part replaces 588017102. Price: $149.99 |
| 2 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 3 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 4 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $19.99 |
| 6 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 7 |
582538902 |
SPINDLE.IDLER This part replaces 582538901. Price: $4.99 |
| 8 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 9 |
587537401 |
PULLEY.ENGINE Price: $22.99 |
| 10 |
105-3723 |
CAMSHAFT-FUEL Price: $424.59 |
| 10 |
587660101 |
SPACER.SPACER.625 W/OGURA.LCC Price: $5.99 |
| 11 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 12 |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK Price: $7.99 |
| 13 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $44.99 |
| 14 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 15 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 16 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 17 |
539101363 |
CLAMP Price: $2.99 |
| 18 |
585807101 |
PLUG OIL DRAIN Price: $2.99 |
| 19 |
501603701 |
BEARING.FLANGED.PLASTIC.3/4ID Price: $5.99 |
| 20 |
107-9077 |
BEARING-BALL Price: $81.95 |
| 20 |
581332806 |
Bolts This part replaces 581332803. Price: $6.99 |
| 21 |
582539502 |
Bolts This part replaces 582539501. Price: $5.99 |
| 22 |
596433901 |
Screws This part replaces 874520656. Price: $2.99 |
| 23 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 24 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 25 |
596030801 |
Bolts This part replaces 872140512. Price: $3.99 |
| 26 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 27 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 28 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 29 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 30 |
107-9078 |
BEARING-BALL Price: $81.95 |
| 30 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 31 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 32 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 50 |
120-2562 |
GEAR-PUMP, INJECTION Price: $83.24 |
| 60 |
98-9590 |
NUT-CAP Price: $3.86 |
| 70 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 80 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 90 |
98-7692 |
BOLT Price: $0.92 |
| 100 |
105-3724 |
GOVERNOR SHAFT ASM Price: $822.46 |
| 110 |
105-3725 |
SHAFT-GOVERNOR Price: $47.55 |
| 120 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 130 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 140 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 150 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 160 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 170 |
98-9692 |
ROLLER Price: $11.45 |
| 180 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 190 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 200 |
107-9079 |
BEARING-BALL Price: $81.78 |
| 210 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
