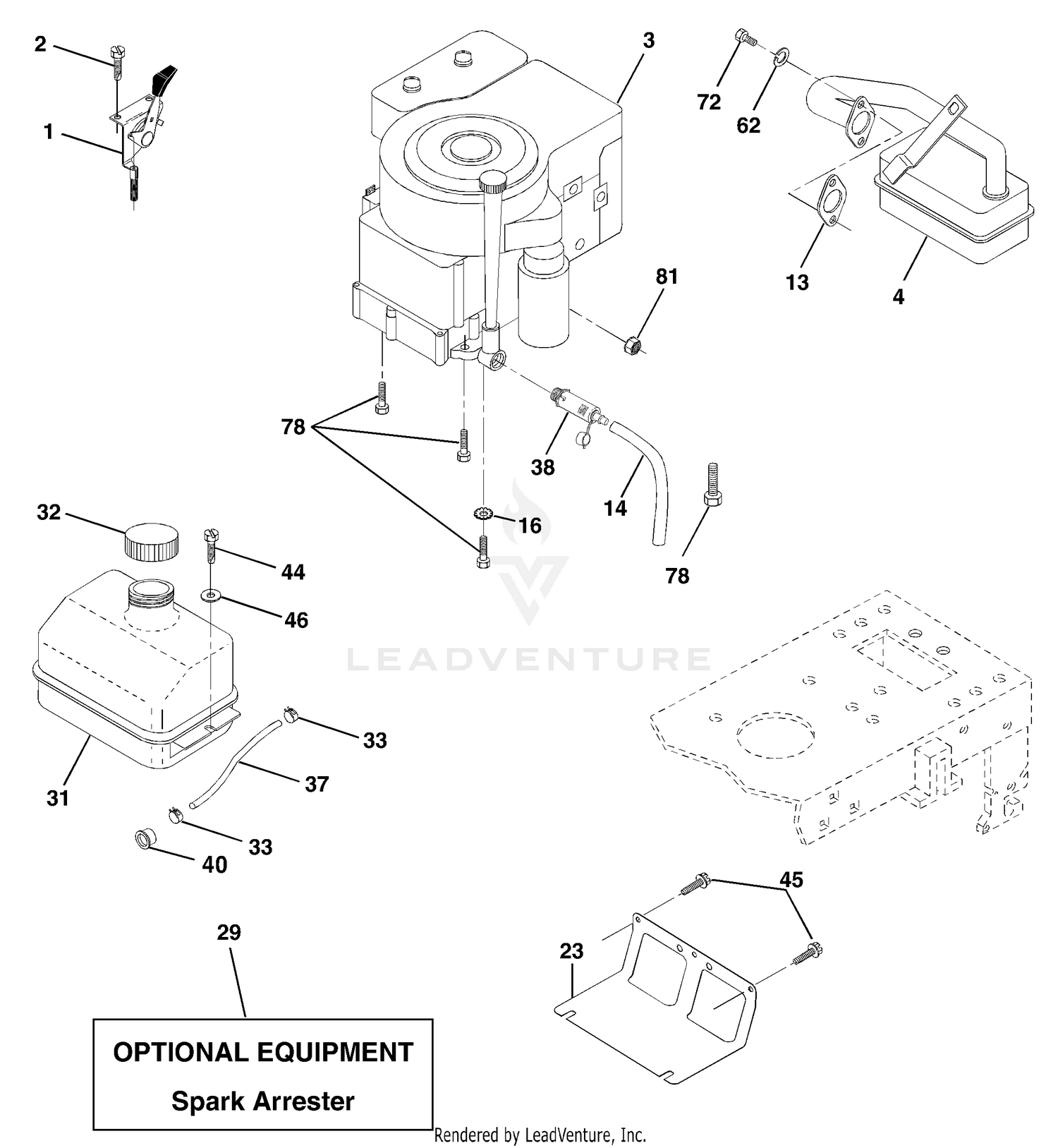

| Ref | Part Number | Description |
|---|
| 1 |
105-8250 |
CONSOLE Price: $213.37 |
| 1 |
170551 |
Control Th/ch Flag Price: Call Us |
| 2 |
105-8254-03 |
LID-CONSOLE Price: $63.57 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 3 |
105-8255-03 |
BAFFLE-CONSOLE Price: $33.59 |
| 4 |
105-8256 |
ROD-HINGE Price: $17.77 |
| 4 |
137348 |
Muffler Exhaust B&S Lc Price: Call Us |
| 5 |
105-8283 |
BUSHING Price: $1.70 |
| 6 |
105-8251 |
POD Price: $67.39 |
| 7 |
105-8252-03 |
BRACKET-POD Price: $113.31 |
| 8 |
105-8284-03 |
SHIELD-VALVE Price: $21.17 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 17 |
233-42 |
KNOB Price: $12.88 |
| 18 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 20 |
105-8288 |
ROD-JOYSTICK Price: $26.49 |
| 22 |
105-8280-03 |
PLATE-CONSOLE Price: $9.63 |
| 23 |
105-8305 |
DECAL-PANEL, CONTROL Price: $23.63 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 24 |
105-8306 |
DECAL-SELECTOR, SPEED Price: $20.42 |
| 25 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 27 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 28 |
3218-3 |
NUT-JAM Price: $0.25 |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 29 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 30 |
32144-19 |
SCREW-SHWH Price: $0.89 |
| 31 |
109202X |
Tank Fuel Front Price: Call Us |
| 31 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 32 |
140527 |
Cap Asm Fuel Price: Call Us |
| 32 |
3290-134 |
SCREW Price: $0.27 |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 34 |
3290-148 |
NUT-HF Price: $0.25 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 37 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 38 |
148315 |
Plug Drain Oil Easy Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 X 7/8 X 16 Ga Price: Call Us |
| 62 |
10040500 |
Washer Lock Hvy Hlcl Spr Price: Call Us |
| 72 |
71070512 |
Screw Hexcap 5/16-18 x 3/4 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
