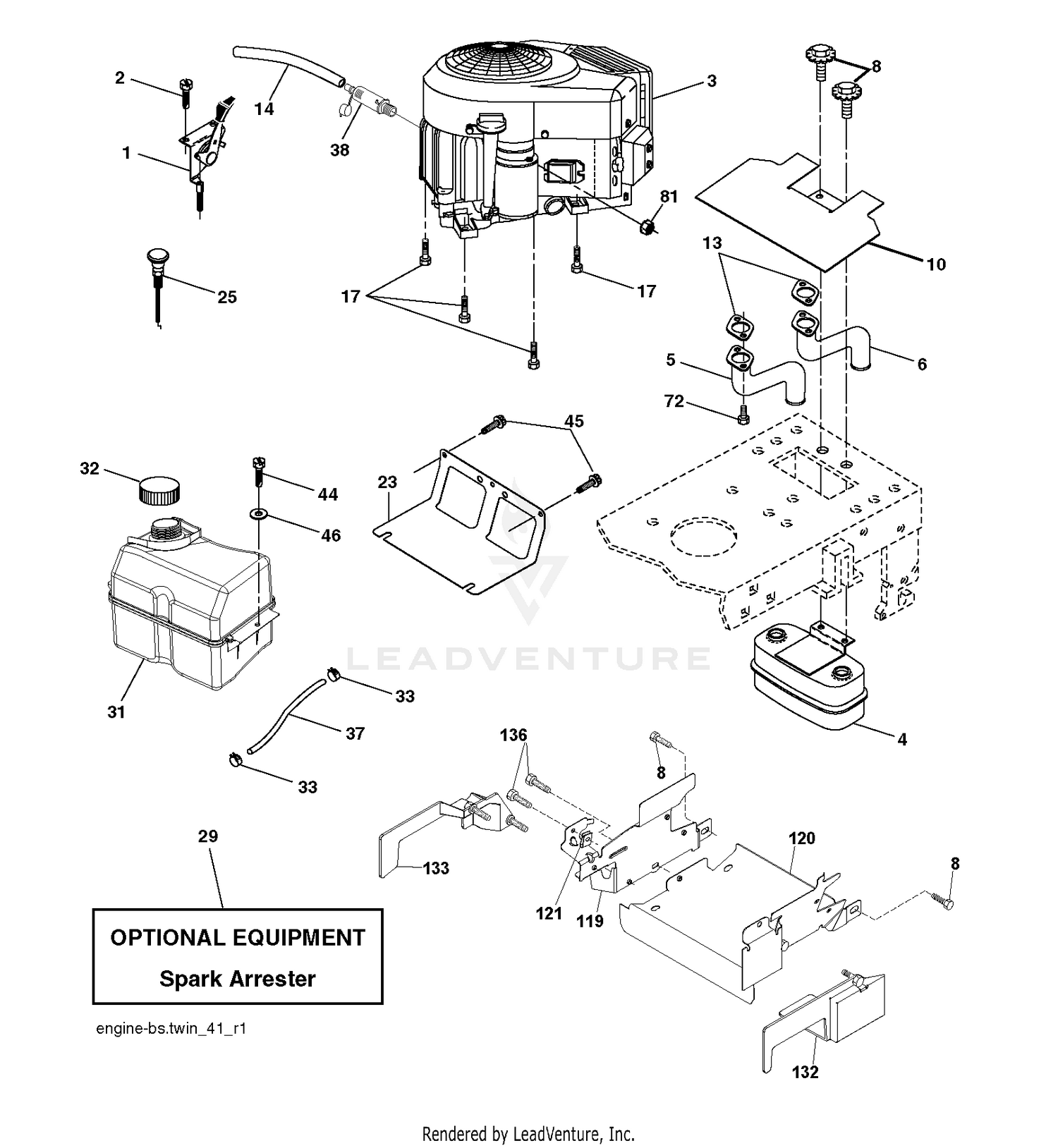

| Ref | Part Number | Description |
|---|
| 1 |
32152-10 |
LOCKNUT Price: $0.81 |
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 2 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 2 |
70-2780 |
PISTON Price: $133.22 |
| 3 |
98-7353 |
DISCONTINUED This part replaces 93-7990. Price: Call Us |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
93-7991 |
COLLAR Price: $73.29 |
| 5 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 5 |
75-3790 |
SHAFT W/TUBE Price: $205.50 |
| 6 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
93-9312 |
DISCONTINUED Price: Call Us |
| 7 |
86-7330 |
SEAL KIT Price: $95.00 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 17 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532407551 |
TANK.FUEL.FRT.N/CAP.2.0GAL.DAP Price: $24.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 119 |
583254301 |
GUARD.ENGINE.CRD.LH This part replaces 532199768. Price: $17.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 132 |
583383301 |
SHIELD.SIDE.CRD.FR.RH This part replaces 532420757. Price: $9.99 |
| 133 |
583383201 |
SHIELD.SIDE.CRD.FR.LH This part replaces 532420756. Price: $6.99 |
