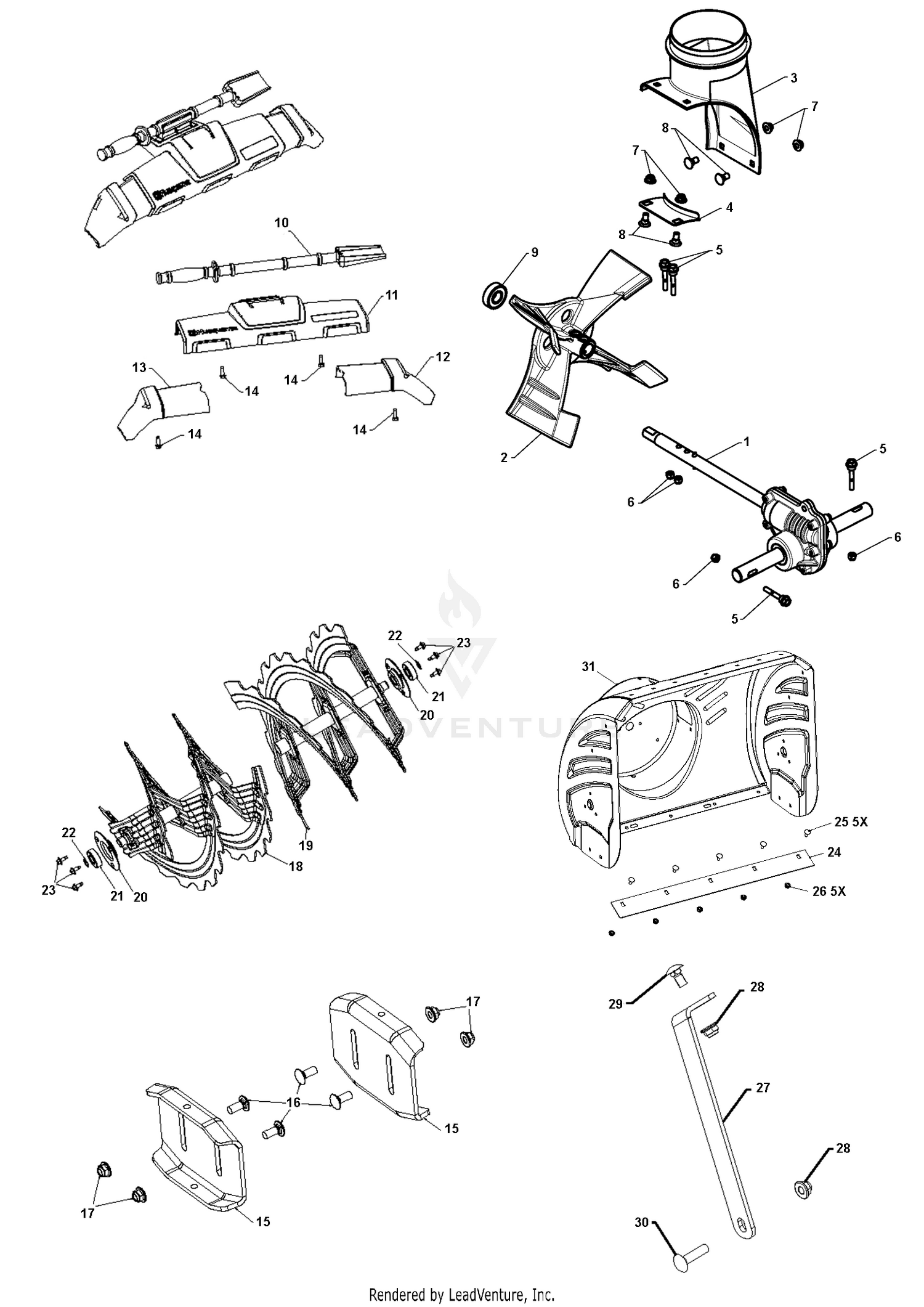

| Ref | Part Number | Description |
|---|
| 1 |
546035301 |
CAST GEARBOX KIT This part replaces 582867701. Price: $329.99 |
| 3 |
585056901 |
CHUTE.DISCHARGE.BASE Price: $9.99 |
| 5 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR Price: $1.00 |
| 6 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 595086601. Price: $1.99 |
| 7 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 9 |
532198791 |
BEARING Price: $9.99 |
| 10 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 11 |
586414802 |
TRIM AUGER FRONT TRIM ASSEMBLY Price: $79.99 |
| 12 |
586330302 |
TRIM AUGER.HOUSING.WING.RH MS Price: $24.99 |
| 13 |
586330402 |
TRIM AUGER.HOUSING.WING.LH MS Price: $24.99 |
| 15 |
532407834 |
SKID PLATE Price: $17.99 |
| 16 |
585691701 |
BOLT CARR BLK 5_16-18 X .750 Price: $8.99 |
| 17 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 18 |
581970303 |
AUGER.RIB.27.RH.LS.GREY Price: $139.99 |
| 19 |
581970403 |
AUGER.RIB.27.LH.LS.GREY Price: $139.99 |
| 20 |
580855501 |
SUPPORT.BEARING.SINGLE.STAGE.B Price: $4.99 |
| 21 |
532110485 |
BEARING This part replaces 532437622. Price: $11.99 |
| 22 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 23 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 25 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO Price: $2.99 |
| 27 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 28 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 29 |
585832001 |
BOLT CAR BLK 5/16-18 X 5/8 Price: $3.99 |
| 30 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 31 |
588610238 |
HOUSING ASSY KIT AUG.HSG.58618 Price: $329.99 |
