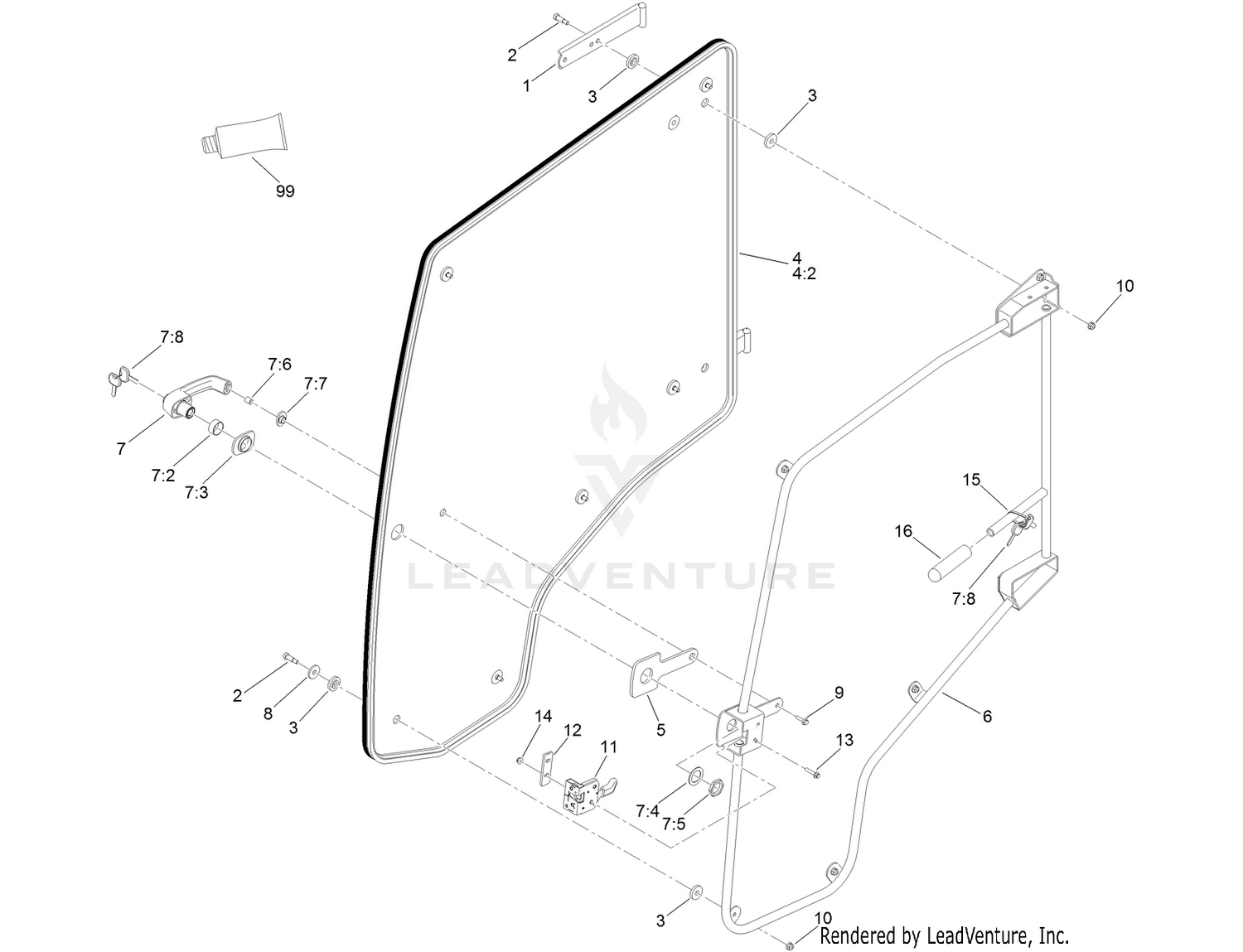

RH Door Assembly No. 140-6555
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-3636-03 | HINGE-DOOR, RH Price: $37.95 |
| 2 | 125-9520 | SCREW-SHOULDER, HSH Price: $1.83 |
| 3 | 125-9982 | BUSHING-FLANGE Price: $1.76 |
| 4 | 137-1208 | RH GLASS DOOR ASM Price: $1,089.11 |
| 5 | 121-8331 | GASKET-HANDLE Price: $15.02 |
| 6 | 140-6553-03 | FRAME-DOOR, RH Price: $546.52 |
| 7 | 121-8630 | HANDLE ASM Price: $121.56 |
| 8 | 125-9676 | WASHER-BACKUP Price: $1.70 |
| 9 | 33103-025 | SCREW-HHF Price: $0.54 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 121-8390 | LATCH-RH Price: $63.03 |
| 12 | 121-8395 | PLATE-SUPPORT, LATCH Price: $5.43 |
| 13 | 3234-21 | SCREW-HHF Price: $2.19 |
| 14 | 104-7201 | NUT-HF Price: $0.69 |
| 15 | 3290-378 | TIE-CABLE Price: $0.79 |
| 16 | 110-1037 | GRIP-HANDLE Price: $12.61 |
