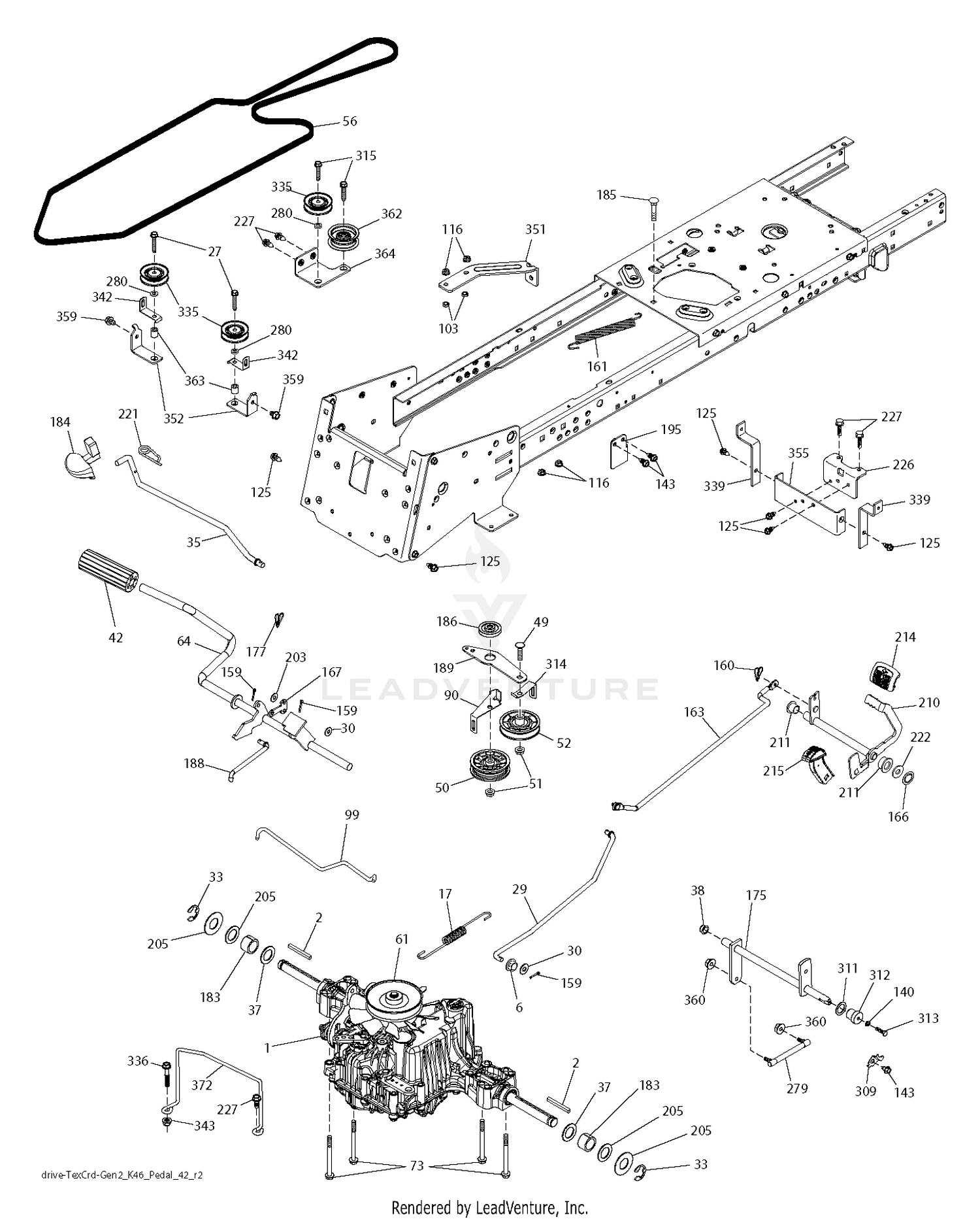

| Ref | Part Number | Description |
|---|
| 1 |
5-1106-01 |
HINGE-BALL, RH This part replaces 5-1106. Price: $66.76 |
| 2 |
5-1104-01 |
SOCKET ASM-HINGE,RH This part replaces 5-1104. Price: $165.99 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
11-9970 |
CENTER FRAME W.A. Price: $2,271.14 |
| 4 |
323-6 |
SCREW-HH Price: $0.66 |
| 5 |
4-8569 |
DISCONTINUED Price: Call Us |
| 6 |
32153-5 |
NUT-HEX Price: $1.59 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 7 |
5-1116-01 |
DISCONTINUED This part replaces 5-1116. Price: Call Us |
| 8 |
325-6 |
SCREW-HH Price: $1.42 |
| 9 |
12-0030 |
DISCONTINUED Price: Call Us |
| 10 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 11 |
6-0860 |
TRLG&3UNIT DRAWBAR WA*R Price: $840.26 |
| 12 |
5-1108 |
BOLT-HINGE CLAMP Price: $42.89 |
| 13 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 14 |
5-1107-01 |
HINGE CAP ASM This part replaces 5-1107. Price: $161.71 |
| 15 |
5-1103-01 |
SOCKET ASM-HINGE, LH This part replaces 5-1103. Price: $146.47 |
| 16 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 17 |
583508701 |
SPRING.BRAKE.K46.TEX.CRD This part replaces 532436227. Price: $6.99 |
| 17 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 18 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 20 |
5-1092 |
DISCONTINUED Price: Call Us |
| 21 |
5-1093 |
DISCONTINUED Price: Call Us |
| 22 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 23 |
5-1094 |
FORK *R Price: $31.80 |
| 24 |
5-9390 |
LIFT HANDLE *B Price: $45.72 |
| 25 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 26 |
287-2 |
DISCONTINUED Price: Call Us |
| 27 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 27 |
596241001 |
Screws Price: $4.99 |
| 28 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 29 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 29 |
583566601 |
ROD.BRAKE.K46.TCRD.GEN2 This part replaces 532442795. Price: $22.99 |
| 30 |
5-2942 |
SHACKLE Price: $16.99 |
| 30 |
596140201 |
Washers Price: $2.99 |
| 31 |
325-4 |
SCREW-HH Price: $0.95 |
| 32 |
12-0120 |
DISCONTINUED Price: Call Us |
| 33 |
5-1091 |
SPACER Price: $4.98 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 35 |
3-7254-01 |
DRAW BAR BRACKET This part replaces 3-7254. Price: $227.92 |
| 35 |
583864502 |
Rods Price: $6.99 |
| 36 |
325-10 |
SCREW-HH Price: $1.82 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
5-1111 |
CASTOR WHEEL BUSHING Price: $10.11 |
| 38 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 39 |
5-1112 |
DRAWBAR PIN Price: $9.77 |
| 40 |
4-8669 |
DISCONTINUED Price: Call Us |
| 41 |
12-0060 |
DISCONTINUED Price: Call Us |
| 42 |
5-1105-01 |
HINGE-BALL, LH This part replaces 5-1105. Price: $57.25 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 43 |
5-1087 |
DISCONTINUED Price: Call Us |
| 44 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 45 |
4-8629 |
DISCONTINUED Price: Call Us |
| 46 |
5-1085 |
DRAWBAR COUPLER *R Price: $231.54 |
| 47 |
5-1086 |
SPRING REBOUND PIN Price: $86.79 |
| 48 |
5-1084 |
DISCONTINUED Price: Call Us |
| 49 |
5-1088 |
DISCONTINUED Price: Call Us |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
583566401 |
RP_BELT.DRIVE.GROUND.114.25 This part replaces 591065301. Price: $84.99 |
| 61 |
583577801 |
PULLEY.INPUT.FLANGED.TRANSAXLE This part replaces 532445151. Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts Price: $3.99 |
| 90 |
583570001 |
KEEPER.BELT.CLUTCHING.TEX.CRD This part replaces 532443605. Price: $4.99 |
| 99 |
583571801 |
ROD.BYPASS.CRD.TEX.GEN2 This part replaces 532443947. Price: $7.99 |
| 103 |
596436301 |
Nuts Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 140 |
596029801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 175 |
583450901 |
SHAFT.ASM.CROSSHIFT.REARCRD.NT This part replaces 532429359. Price: $14.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
583492701 |
BELLCRANK.GROUND.DRIVE.CRD.TEX This part replaces 532433611. Price: $5.99 |
| 195 |
580456901 |
BRACKET.ROD.BRAKE Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 279 |
593898401 |
Links This part replaces 532444283. Price: $8.99 |
| 280 |
596039901 |
Washers Price: $2.99 |
| 309 |
532165581 |
PLATE FASTENING LT Price: $3.99 |
| 311 |
532169845 |
WASHER NYL Price: $2.99 |
| 312 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 313 |
596040701 |
Bolts Price: $1.99 |
| 314 |
583575801 |
KEEPER.BELT This part replaces 532444713. Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 336 |
587259602 |
Bolts Price: $3.99 |
| 339 |
583512601 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532436867. Price: $2.99 |
| 342 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 343 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 351 |
583515101 |
BRACKET.97.CRD.DECK.SWAY This part replaces 532436998. Price: $7.99 |
| 352 |
583506401 |
BRACKET.IDLER.CRD.TEX This part replaces 532435645. Price: $4.99 |
| 355 |
583506501 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532435669. Price: $5.99 |
| 359 |
596564002 |
Screws Price: $2.99 |
| 360 |
583575901 |
NUT.HEX.CENTERLOCK.5/16-24 UNF This part replaces 532444714. Price: $2.99 |
| 363 |
583566301 |
SPACER.343X63X.62 This part replaces 532442780. Price: $3.99 |
| 364 |
583567401 |
BRACKET.IDLER.CRD.TEX This part replaces 532443032. Price: $7.99 |
| 372 |
582654901 |
KEEPER.BELT.CRD2.K46.2.BOLT. Price: $11.99 |
