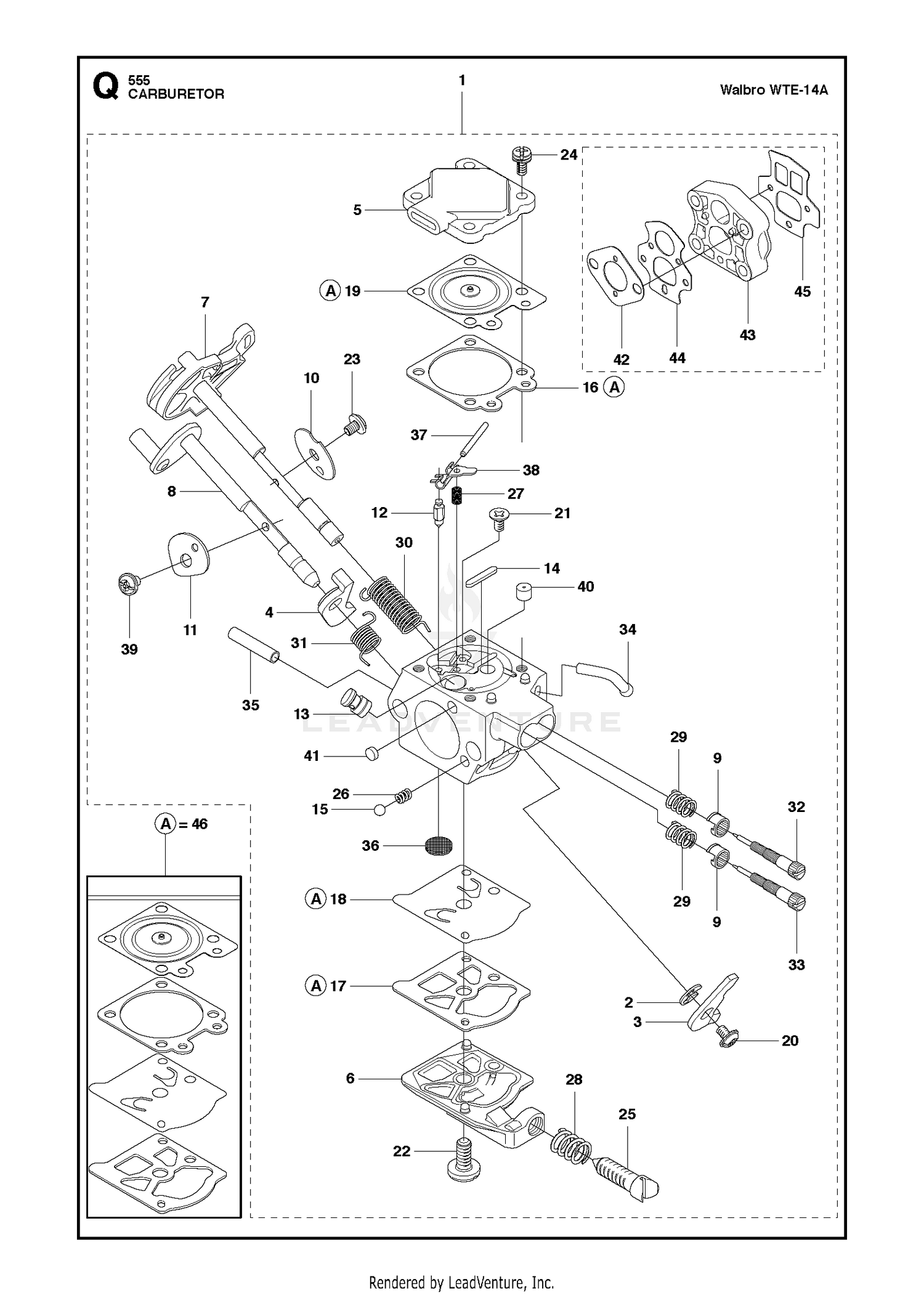

CARBURETOR
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 502119801 | CLIPS This part replaces 505316736. Price: $7.99 |
| 2 | 98-7743 | BEARING Price: $37.48 |
| 3 | 544970701 | LEVER Price: $3.99 |
| 3 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 4 | 544177701 | LEVER Price: $3.99 |
| 4 | 98-7744 | BEARING Price: $35.64 |
| 5 | 505316754 | DIAPHRAGM COVER Price: $3.99 |
| 5 | 98-7741 | YOKE ASM Price: $305.27 |
| 6 | 503584301 | COVER Price: $5.99 |
| 7 | 544043601 | SHAFT Price: $9.99 |
| 7 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 8 | 544044001 | SHAFT Price: $11.99 |
| 8 | 99-8370 | FRAME-END Price: $79.75 |
| 9 | 100-9240 | BOLT This part replaces 98-9549. Price: $7.23 |
| 9 | 544970801 | LIMITER CAP Price: $3.99 |
| 10 | 505427101 | VALVE Price: $4.99 |
| 10 | 98-7758 | BOLT ASM Price: $4.90 |
| 11 | 250-4 | TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 11 | 537109601 | VALVE Price: $6.99 |
| 12 | 503563401 | INLET NEEDLE Price: $14.99 |
| 12 | 99-8371 | NUT-HEX Price: $3.75 |
| 13 | 98-9711 | CORD-SOLENOID, STOP Price: $12.05 |
| 14 | 502846901 | PLUG Price: $8.99 |
| 14 | 99-8372 | MAGNETIC SWITCH ASM Price: $528.24 |
| 15 | 501468501 | BALL Price: $6.99 |
| 15 | 98-7754 | SPRING Price: $4.70 |
| 16 | 504350906 | GASKET Price: $9.99 |
| 16 | 98-7755 | BALL Price: $0.42 |
| 17 | 504130906 | GASKET Price: $9.99 |
| 17 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 18 | 577016601 | DIAPHRAGM Price: $12.99 |
| 18 | 98-7756 | BOLT Price: $2.64 |
| 19 | 580804201 | DIAPHRAGM Price: $89.99 |
| 19 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 20 | 501468701 | SCREW Price: $6.99 |
| 20 | 98-7752 | RETAINER Price: $4.35 |
| 21 | 502847101 | SCREW Price: $6.99 |
| 21 | 98-7753 | ROLLER Price: $1.00 |
| 22 | 501466901 | SCREW Price: $7.99 |
| 22 | 98-7751 | GEAR Price: $43.51 |
| 23 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 23 | 99-8375 | COVER Price: $24.86 |
| 24 | 537003101 | SCREW Price: $7.99 |
| 24 | 98-7757 | O-RING Price: $24.98 |
| 25 | 537408201 | SCREW Price: $14.99 |
| 25 | 99-8376 | NUT-HEX Price: $7.28 |
| 26 | 501468401 | SPRING Price: $6.99 |
| 27 | 501795901 | SPRING Price: $9.99 |
| 28 | 530035121 | IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 29 | 544971001 | SPRING Price: $4.99 |
| 30 | 544177601 | SPRING Price: $11.99 |
| 31 | 544971101 | SPRING Price: $8.99 |
| 32 | 502847201 | NEEDLE Price: $5.99 |
| 33 | 502847301 | NEEDLE Price: $4.99 |
| 34 | 544971501 | FITTING Price: $3.99 |
| 35 | 544971601 | FITTING Price: $5.99 |
| 36 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 37 | 505520125 | FULCRUM PIN Price: $6.99 |
| 38 | 502847401 | LEVER Price: $3.99 |
| 39 | 544111501 | SCREW Price: $6.99 |
| 40 | 505426901 | JET Price: $8.99 |
| 41 | 503574301 | PLUG WELCH Price: $4.99 |
| 46 | 515999601 | KIT Price: $11.99 |
