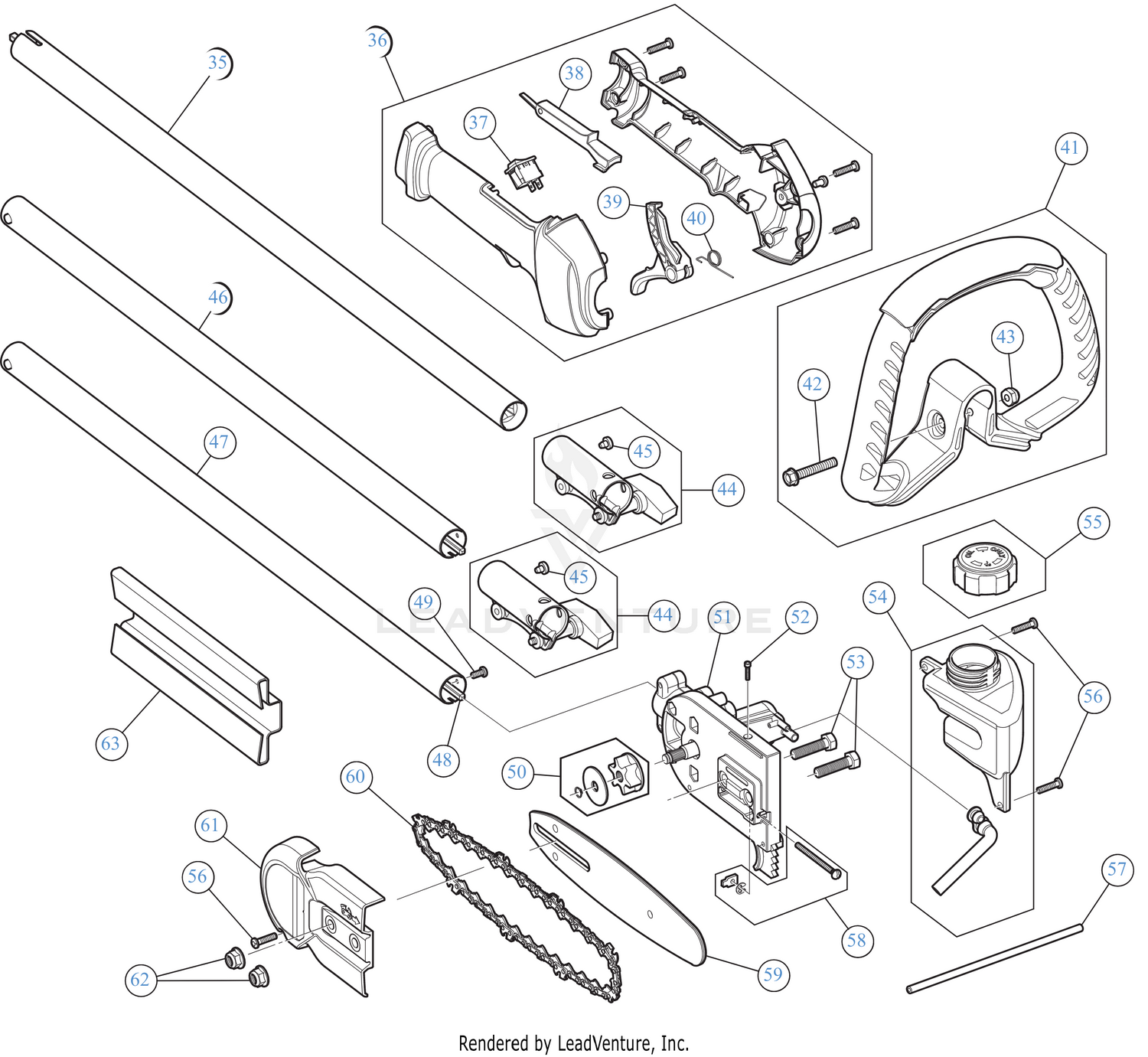

General Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 841-036129S | UPPER SHAFT HOUSING Price: $15.84 |
| 37 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 38 | 731-08433C-10 | LEVER LOCK OUT Price: $2.72 |
| 39 | 731-04970B-10 | THROTTLE TRIGGER Price: $8.16 |
| 40 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 42 | 753-06040 | BOLT 1/4-20X1 1/2 Price: $6.01 |
| 43 | 2952 | NUT 1/4-20 NYLOC Price: $2.30 |
| 45 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 46 | 753-11150 | EXTENSION BOOM Price: $15.98 |
| 48 | 791-181852 | LOWERIBLE DRIVE SHAFT Price: $51.93 |
| 49 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 50 | 753-05595 | SPROCKET ASSEMBLY Price: $10.05 |
| 52 | 710-04696 | SCREW 4X40X.50 Price: $3.38 |
| 53 | 710-0528 | SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 54 | 753-05586 | OIL TANK ASSEMBLY Price: $27.18 |
| 55 | 753-05587 | FUEL CAP ASSEMBLY Price: $7.70 |
| 56 | 791-181345 | SCREW, #8-16X.750 PH Price: $3.75 |
| 57 | 753-05588 | OIL LINE Price: $8.53 |
| 58 | 753-05597 | CHAIN TENSION HDW Price: $9.09 |
| 59 | 795-00442 | BAR 10" Price: $16.47 |
| 60 | 713-05156 | CHAIN 10" Price: $13.61 |
| 61 | 753-05765 | CHAIN GUARD Price: $10.52 |
| 62 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 63 | 731-05906-3 | SCABBARD CHAIN GUARD Price: $2.22 |
